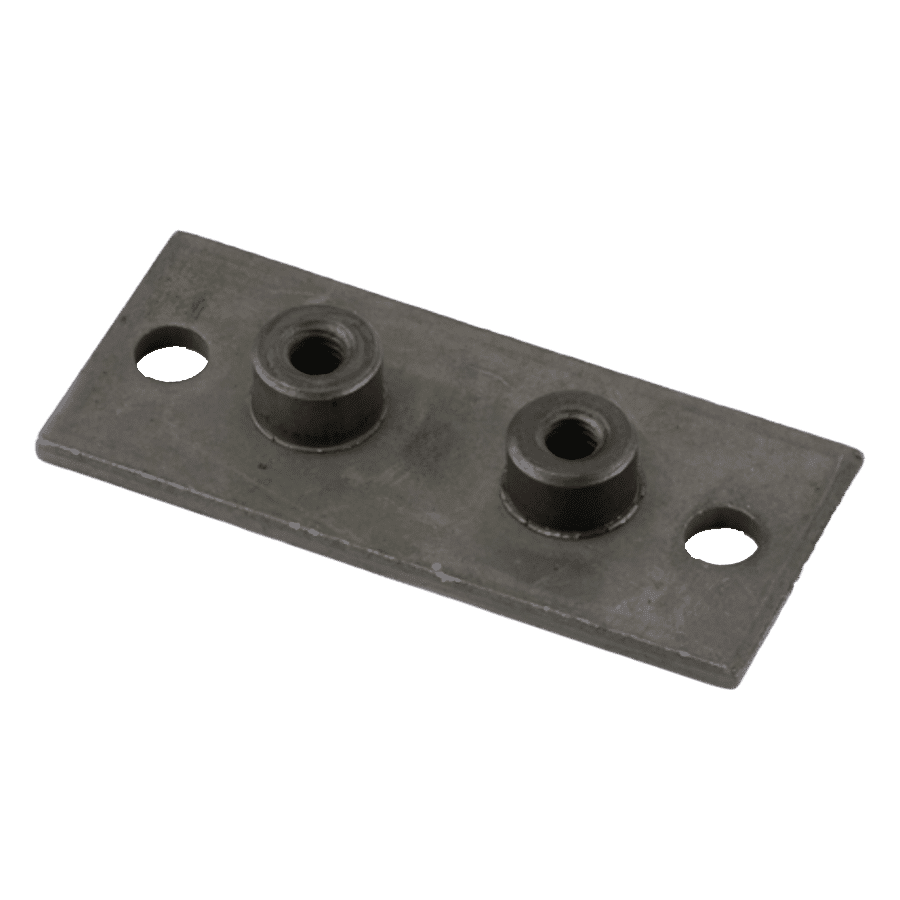

Welded on and screw-on base plate, long. For single pipe clamps. Light series. To DIN 3015-1. Phosphate treated surface. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | B mm | c mm | e1 mm | e2 mm | G | L mm | S mm |
|---|---|---|---|---|---|---|---|---|
| 1 | 30 | 7 | 20 | 50 | M 6 | 64 | 3 | |
| 2 | 30 | 7 | 26 | 46 | M 6 | 70 | 3 | |
| 3 | 30 | 7 | 33 | 64 | M 6 | 78 | 3 | |
| 4 | 30 | 7 | 40 | 73 | M 6 | 87 | 3 | |
| 5 | 30 | 7 | 52 | 86 | M 6 | 100 | 3 | |
| 6 | 30 | 7 | 66 | 100 | M 6 | 116 | 3 |
Product Versions: SPC - Base Plate L V4 - Welded on and screw-on base plate, long, Stainless steel 1.4571 SPC - Base Plate L VZ - Welded on and screw-on base plate, long, Steel, Electro galvanised
Additional element for following products: A 1-6 - Configuration of group A 1-6
