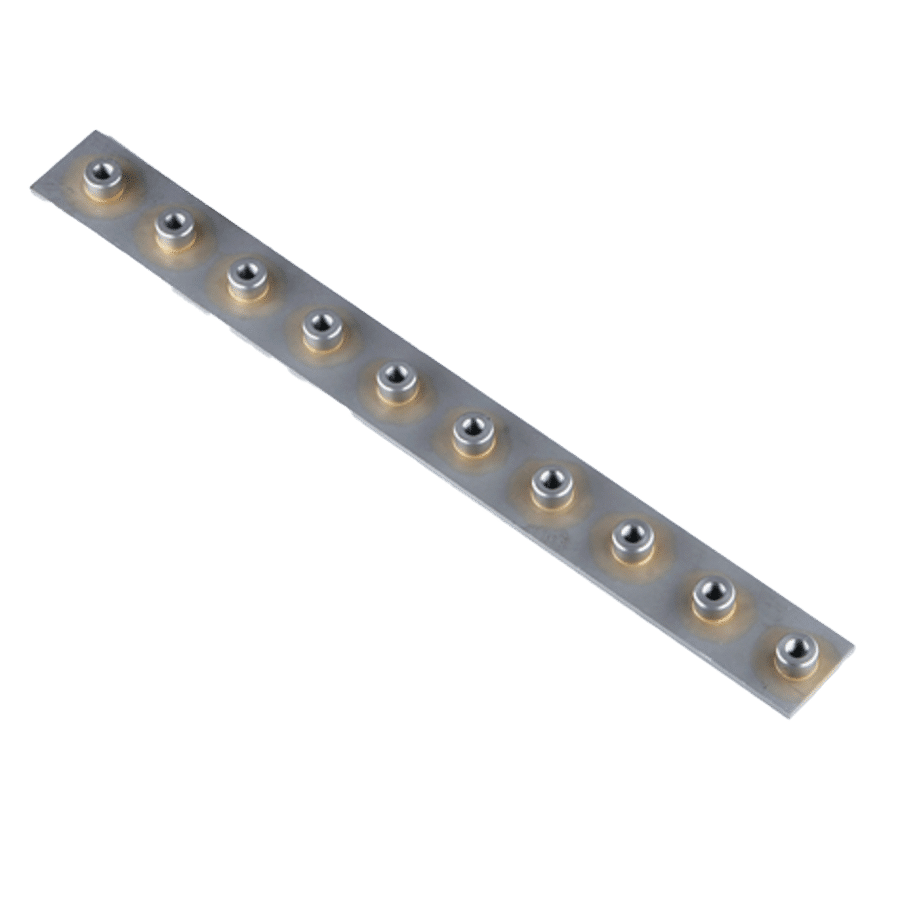

Series welded on base plate, single pipe clamp. For single pipe clamps. Light series. To DIN 3015-1. Phosphate treated surface. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | a mm | B mm | e1 mm | G | L mm | S mm |
|---|---|---|---|---|---|---|---|
| 1 | 35 | 30 | 20 | M 6 | 349 | 3 | |
| 2 | 43 | 30 | 26 | M 6 | 427 | 3 | |
| 3 | 52 | 30 | 33 | M 6 | 516 | 3 | |
| 4 | 60 | 30 | 40 | M 6 | 297 | 3 | |
| 5 | 75 | 30 | 52 | M 6 | 370 | 3 | |
| 6 | 90 | 30 | 66 | M 6 | 446 | 3 |
Product Versions: SPC - Base Plate R VZ - Series welded on base plate, single pipe clamp, Electro galvanised
Additional element for following products: A 1-6 - Configuration of group A 1-6
