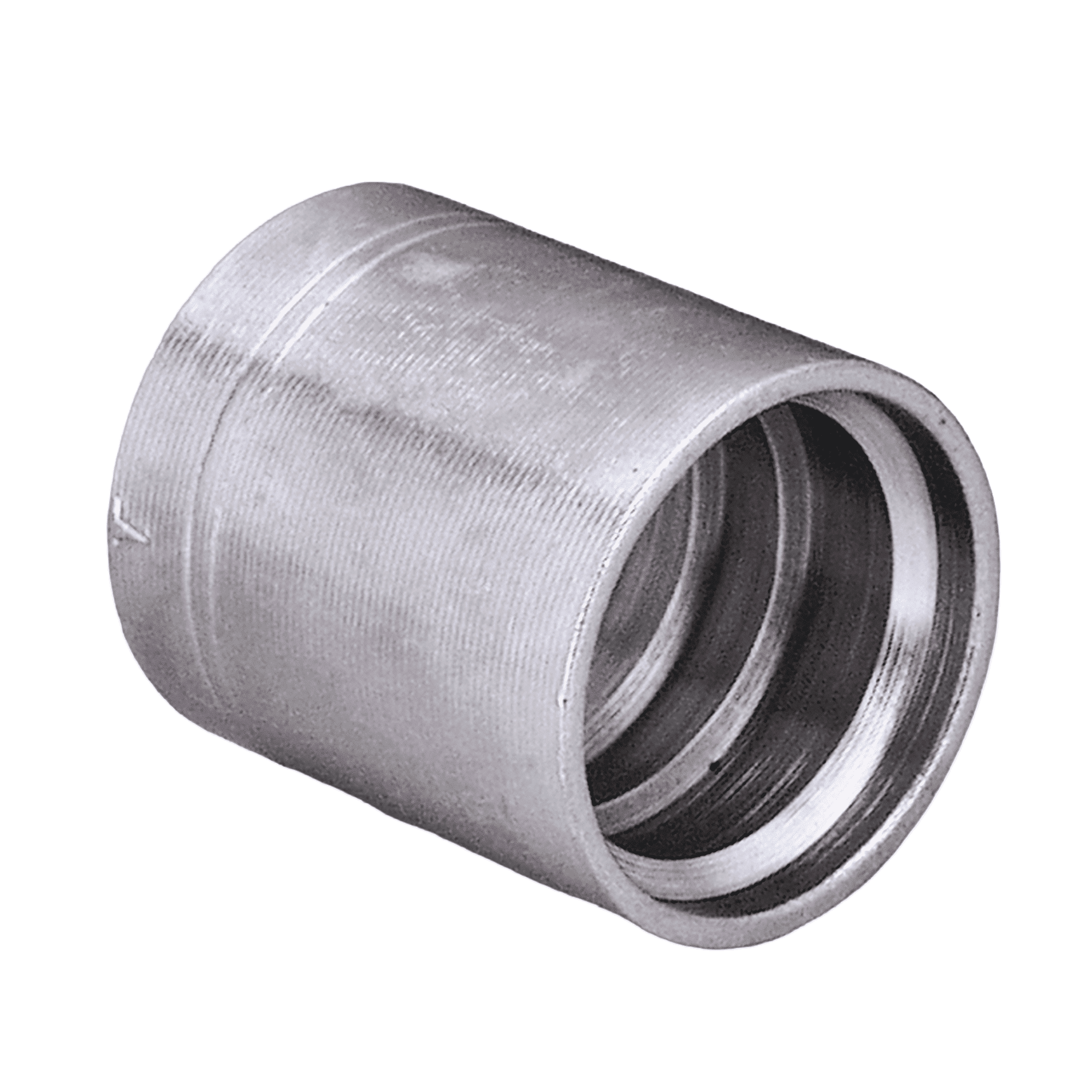

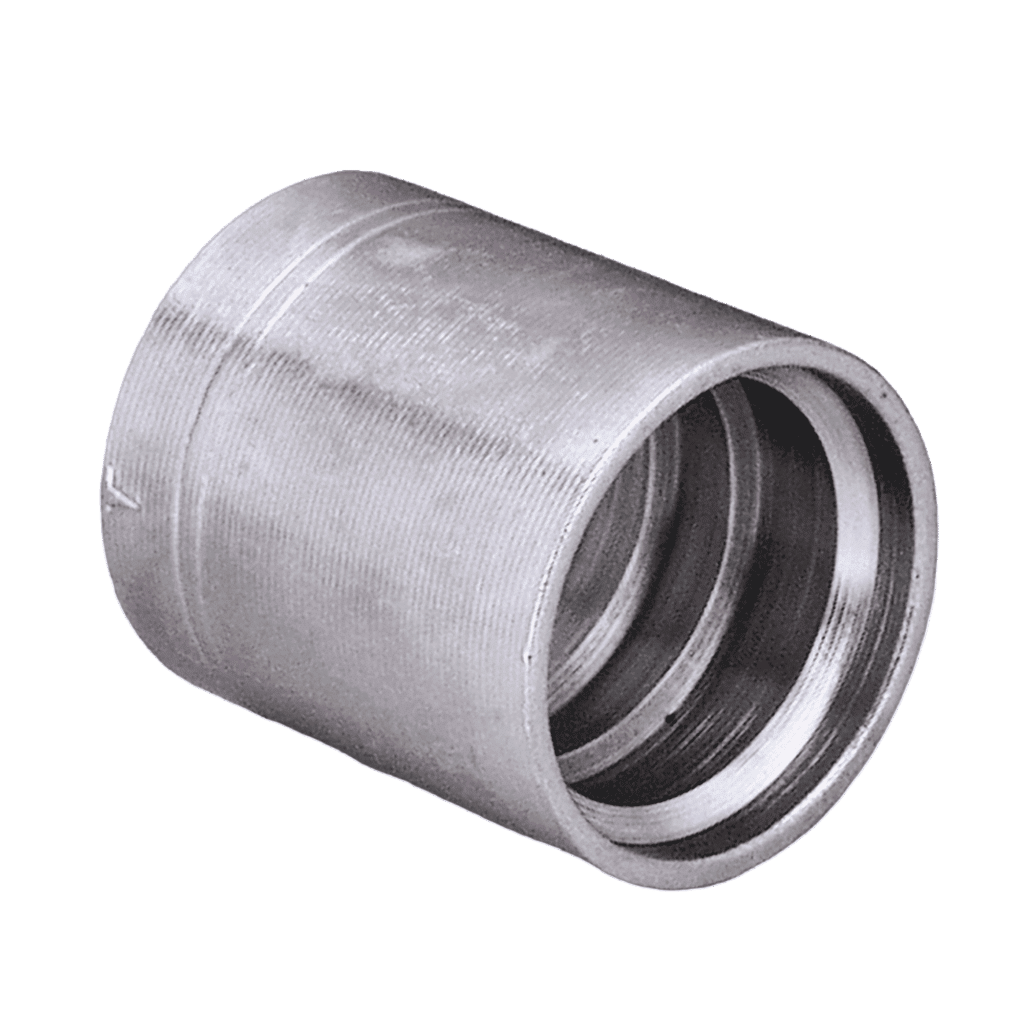

Swage ferrule for spiral hose, non-skive ferrule, steel. Suits MH400. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 6 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN* | Size | Inches | D1 mm | D3 mm | LF mm |
|---|---|---|---|---|---|---|
| 10 | 6 | 3/8” | 27.5 | 14.5 | 31 | |
| 12 | 8 | 1/2” | 31.9 | 18.3 | 36 | |
| 16 | 10 | 5/8” | 35.8 | 21.6 | 38.2 | |
| 19 | 12 | 3/4” | 40.3 | 24.4 | 46.5 | |
| 25 | 16 | 1” | 49.1 | 31 | 53 | |
| 31 | 20 | 1.1/4” | 57.3 | 38.3 | 66.5 |
Note: The ferrule assignment depends on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
