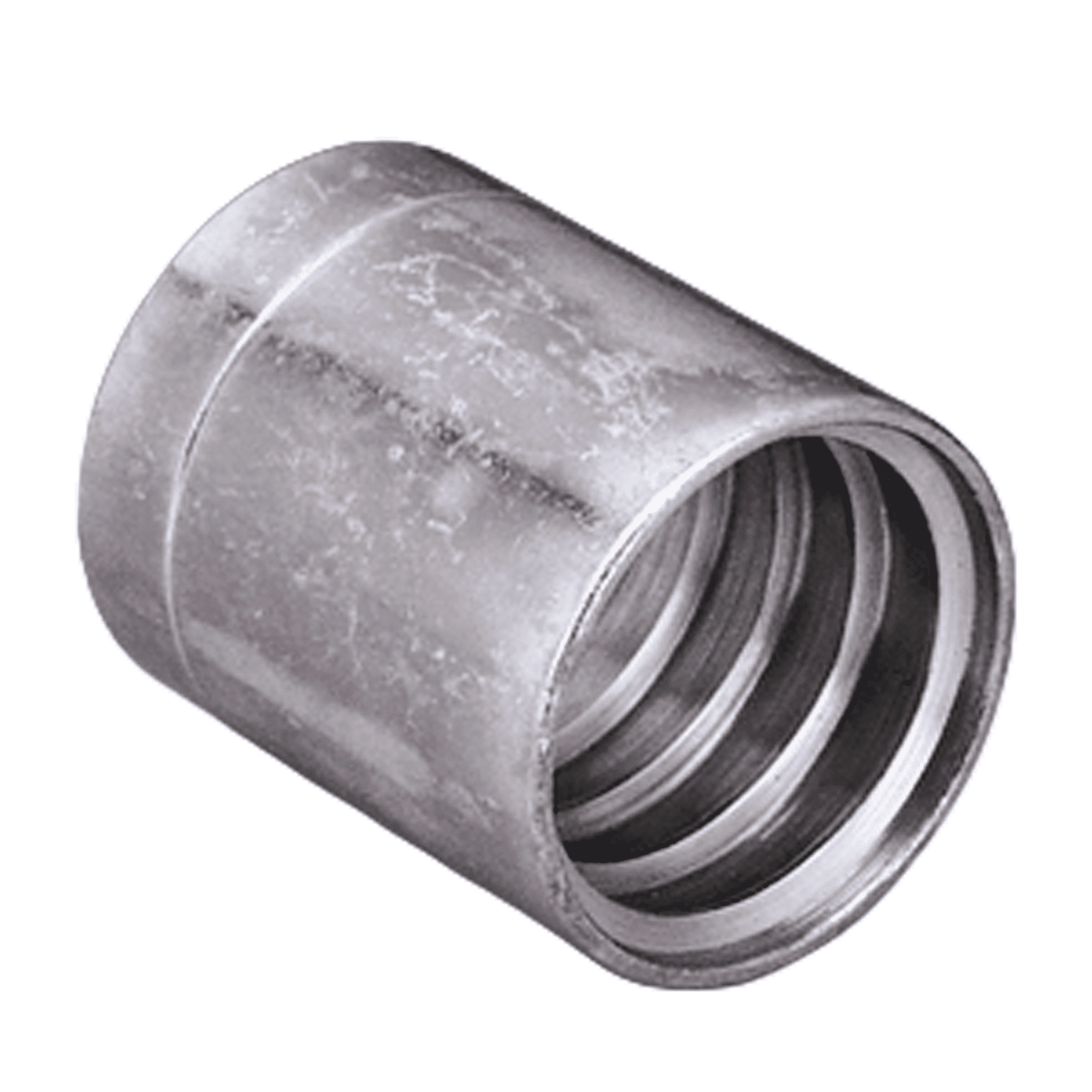

Swage ferrule for braided hose. Non-skive ferrule. Suits 2SN (MH200-HT, MH200-RM) 2SC (MH200, MH200-S). MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN* | Size | Inch | D1 mm | D3 mm | LF mm |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | 19.6 | 11.4 | 30.2 | |
| 8 | 5 | 5/16” | 20.6 | 12.6 | 30.2 | |
| 10 | 6 | 3/8” | 23.2 | 14.2 | 32 | |
| 12 | 8 | 1/2” | 27.5 | 19 | 34 | |
| 16 | 10 | 5/8” | 31 | 22.3 | 37 | |
| 19 | 12 | 3/4” | 36 | 25 | 42.5 | |
| 25 | 16 | 1” | 42.8 | 30.5 | 50.5 | |
| 31 | 20 | 1.1/4” | 51 | 37.6 | 59 |
Note: The ferrule assignment depends on the hose type.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
