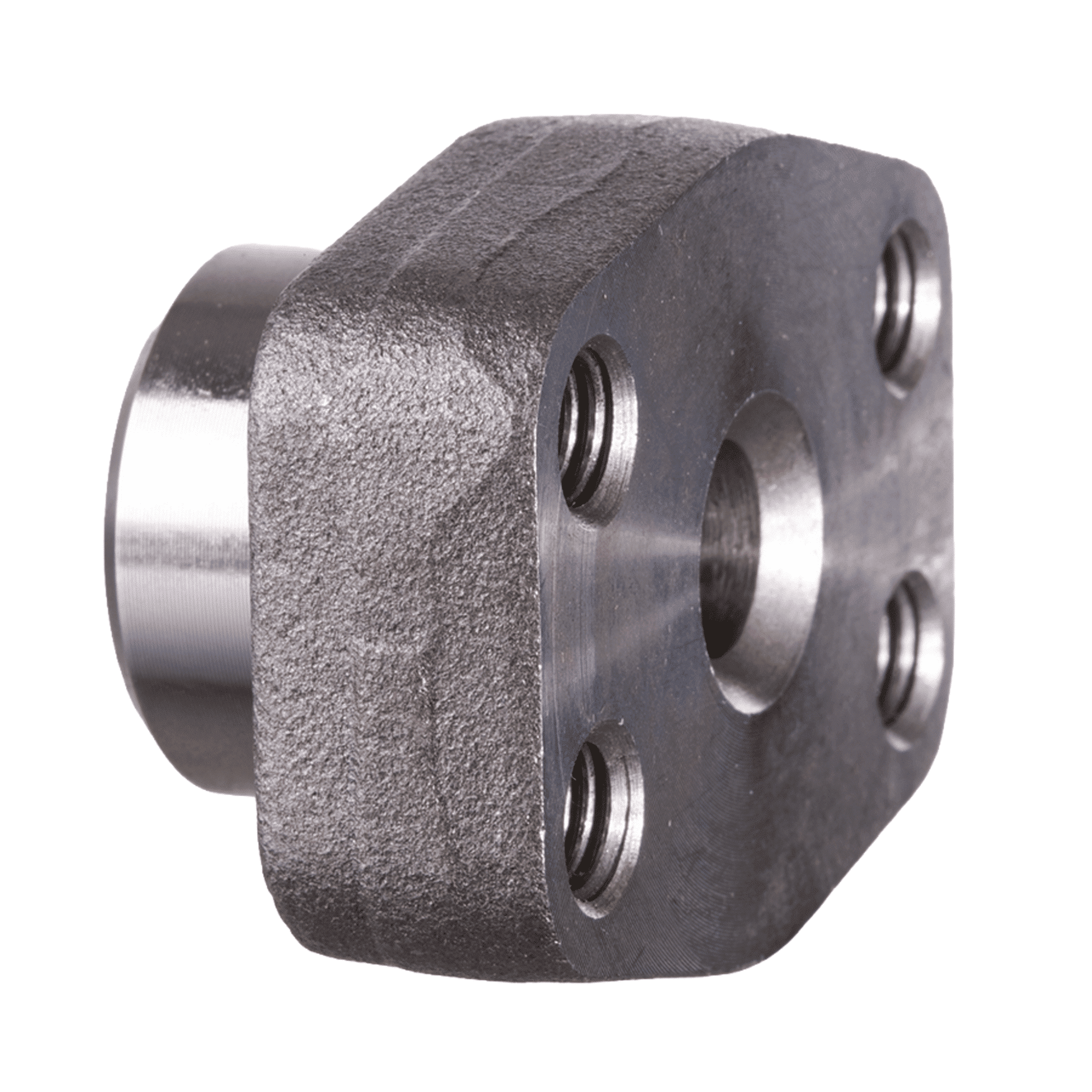

SAE screw-in counter flange, BSP. Straight. Mounting: inner thread for metric screws. To SAE J 518 C, ISO 6162. Black oiled surface. S355J2G3 (ST52.3). 12 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Pressure series | PB 10.9 bar | Size | A | ØB mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | M metr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6000 PSI | 400 | 1/2” | G 3/8”-19 | 13 | 40.5 | 54 | 18.2 | 46 | 36 | 16 | 19 | M 8 | |
| 6000 PSI | 400 | 1/2” | G 1/2”-14 | 13 | 40.5 | 54 | 18.2 | 46 | 36 | 16 | 19 | M 8 | |
| 6000 PSI | 400 | 3/4” | G 1/2”-14 | 13 | 50.8 | 71 | 23.8 | 55 | 35 | 21 | 22 | M 10 | |
| 6000 PSI | 400 | 3/4” | G 3/4”-14 | 19 | 50.8 | 71 | 23.8 | 55 | 35 | 21 | 22 | M 10 | |
| 6000 PSI | 400 | 1" | G 3/4”-14 | 19 | 57.2 | 81 | 27.8 | 65 | 42 | 25 | 24 | M 12 | |
| 6000 PSI | 400 | 1" | G 1"-11 | 25 | 57.2 | 81 | 27.8 | 65 | 42 | 25 | 24 | M 12 | |
| 6000 PSI | 400 | 1.1/4” | G 1"-11 | 25 | 66.7 | 95 | 31.8 | 78 | 45 | 27 | 25 | M 14 | |
| 6000 PSI | 400 | 1.1/4” | G 1.1/4"-11 | 32 | 66.7 | 95 | 31.8 | 78 | 45 | 27 | 25 | M 14 | |
| 6000 PSI | 400 | 1.1/2” | G 1.1/4"-11 | 32 | 79.4 | 112 | 36.5 | 94 | 50 | 30 | 28 | M 16 | |
| 6000 PSI | 400 | 1.1/2” | G 1.1/2"-11 | 38 | 79.4 | 112 | 36.5 | 94 | 50 | 30 | 28 | M 16 | |
| 6000 PSI | 400 | 2" | G 1.1/2”-11 | 38 | 96.8 | 134 | 44.5 | 114 | 65 | 37 | 30 | M 20 | |
| 6000 PSI | 400 | 2" | G 2"-11 | 51 | 96.8 | 134 | 44.5 | 114 | 65 | 37 | 30 | M 20 |
Note: The stated maximum working pressure relates to the flange. The actual working pressure is determined by the pipe (wall thickness) and the quality of the pipe.
