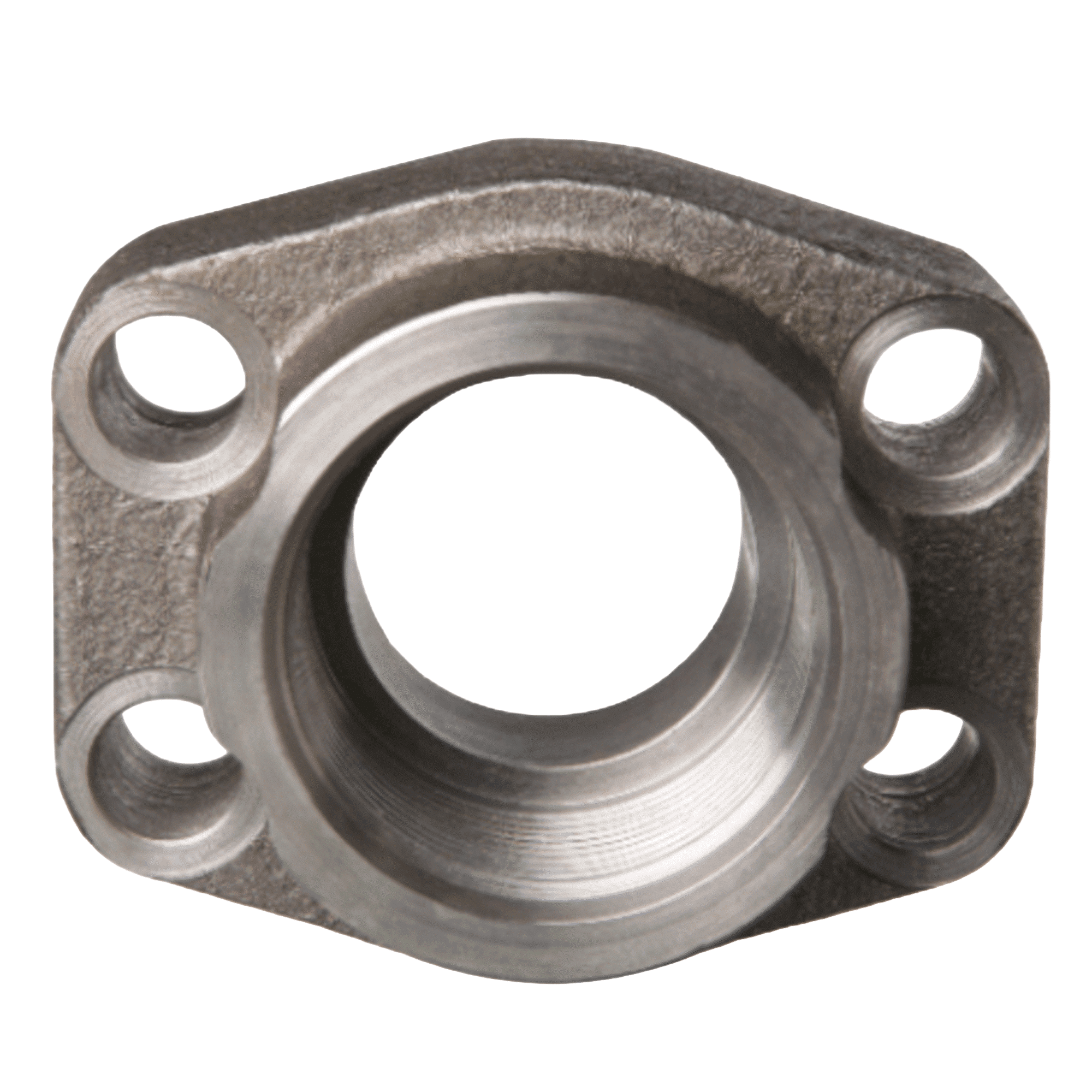

SAE screw-in flange, UN / UNF. Straight. Mounting: screw bore hole. To SAE J 518 C, ISO 6162. Black oiled surface. S355J2G3 (ST52.3). 10 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Pressure series | PB 10.9 bar | Size | A | Ø B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | L mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000 PSI | 350 | 1/2” | UNF 3/4”–16 | 13 | 38.1 | 54 | 17.5 | 46 | 36 | 16 | 17 | 9.0 | |
| 3000 PSI | 350 | 3/4” | UNF 1.1/16”–12 | 19 | 47.6 | 65 | 22.3 | 50 | 36 | 18 | 23 | 11.0 | |
| 3000 PSI | 315 | 1" | UN 1.5/16”–12 | 25 | 52.4 | 70 | 26.2 | 55 | 38 | 18 | 23 | 11.0 | |
| 3000 PSI | 250 | 1.1/4” | UN 1.5/8”–12 | 32 | 58.7 | 79 | 30.2 | 68 | 41 | 21 | 23 | 11.5 | |
| 3000 PSI | 200 | 1.1/2” | UN 1.7/8”–12 | 38 | 69.9 | 93 | 35.7 | 78 | 45 | 25 | 23 | 13.5 | |
| 6000 PSI | 400 | 1/2” | UNF 3/4”–16 | 13 | 40.5 | 54 | 18.2 | 46 | 36 | 16 | 17 | 9.0 | |
| 6000 PSI | 400 | 3/4” | UNF 1.1/16”–12 | 19 | 50.8 | 71 | 23.8 | 55 | 35 | 21 | 23 | 11.0 | |
| 6000 PSI | 400 | 1" | UN 1.5/16”–12 | 25 | 57.2 | 81 | 27.8 | 65 | 42 | 25 | 23 | 13.0 | |
| 6000 PSI | 400 | 1.1/4” | UN 1.5/8”–12 | 32 | 66.7 | 95 | 31.8 | 78 | 45 | 27 | 23 | *1 | |
| 6000 PSI | 400 | 1.1/2” | UN 1.7/8”–12 | 38 | 79.4 | 112 | 36.5 | 94 | 50 | 30 | 23 | 17.0 |
Note: The stated maximum working pressure relates to the flange. The actual working pressure is determined by the pipe (wall thickness) and the quality of the pipe.
Product Versions: AFS T M (3000 / 6000 PSI) - SAE screw-in flange, UN / UNF, with metric screw set and O-ring AFS T U (3000 / 6000 PSI) - SAE screw-in flange, UN / UNF, with UNC screw set and O-ring
