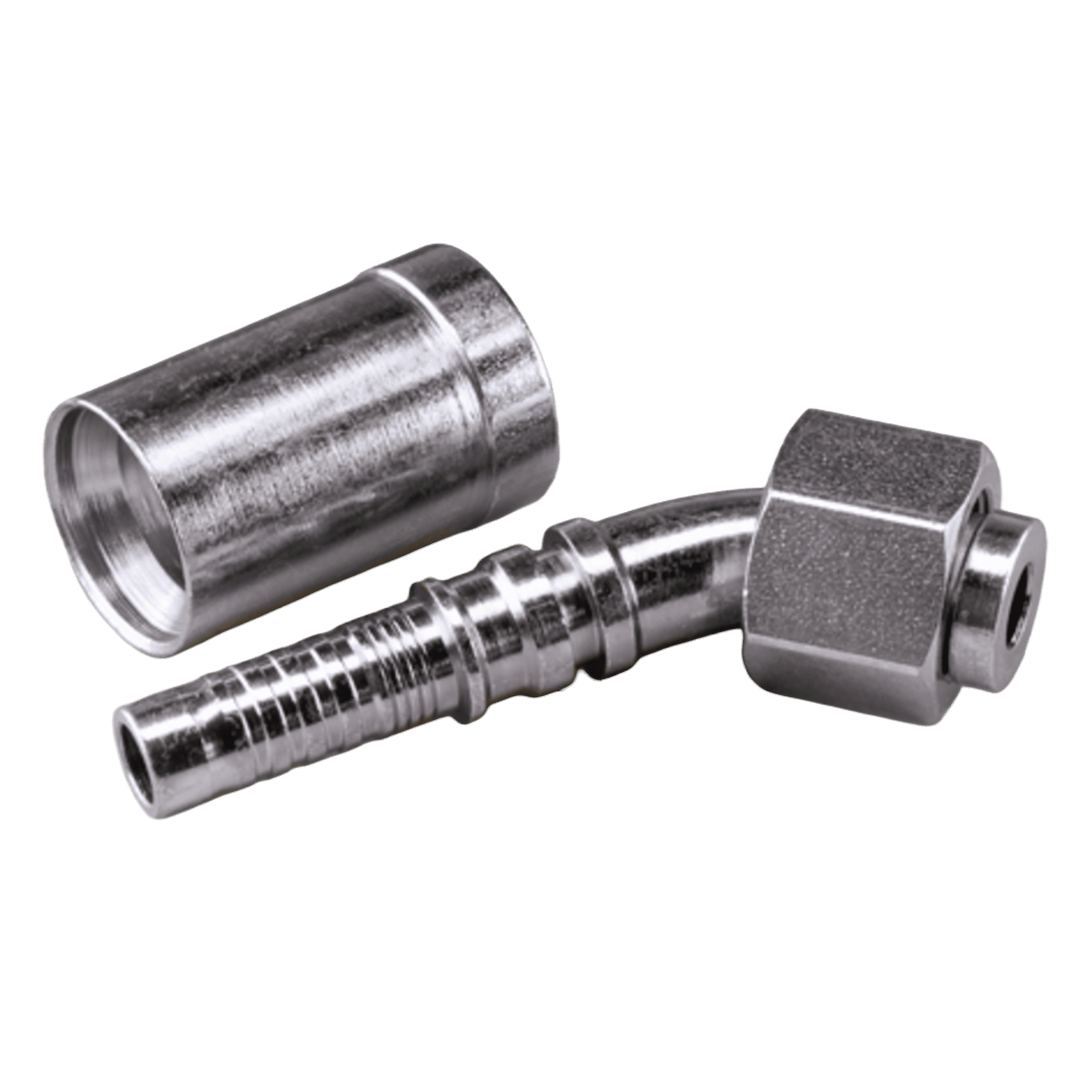

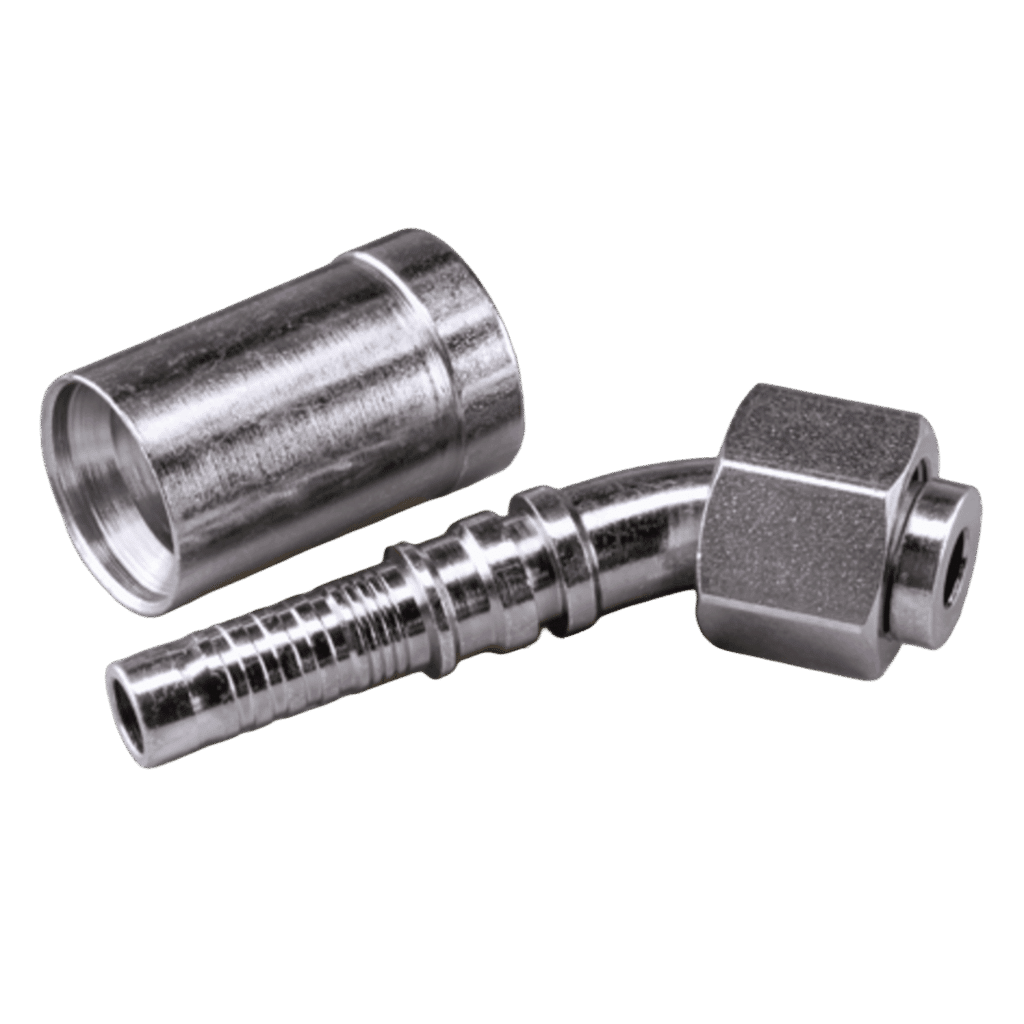

For swage fitting for HD 500 hoses. UN / UNF nut threads. Flat sealing. To ISO 8434-3. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 4 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | 1.3/16”–12 UN | 133.0 | 26.5 | 36 | |
| 25 | 16 | 1” | 1.7/16”–12 UN | 160.5 | 31.0 | 41 | |
| 31 | 20 | 1.1/4” | 1.11/16”–12 UN | 171.5 | 76.0 | 50 | |
| 38 | 24 | 1.1/2” | 2”–12 UN | 207.0 | 88.5 | 60 |
277
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
