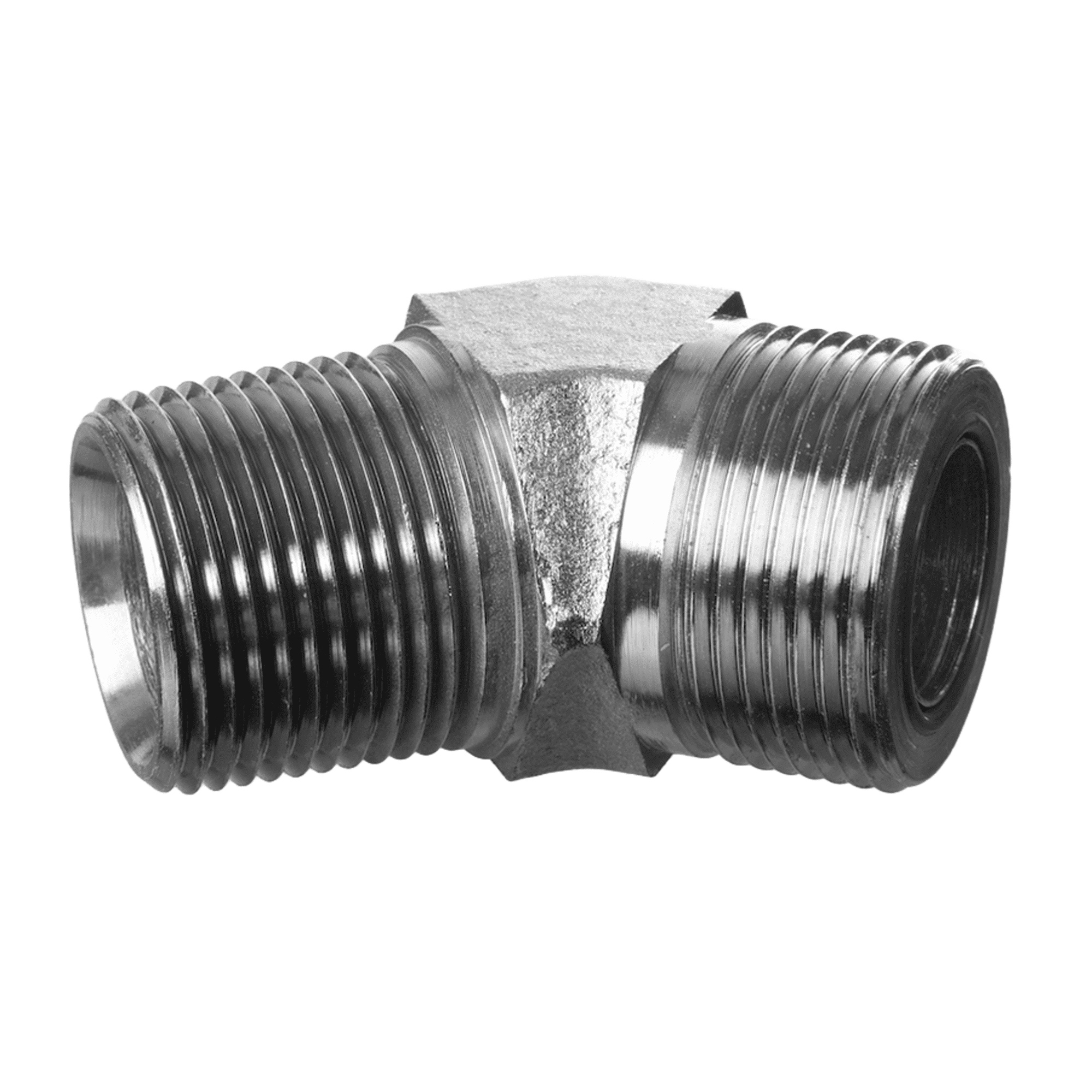

Screw-in socket, angle 45°. Screw-in sockets. Angle 90°. NPT external threads to oRFS external threads. Thread seal one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 11 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | OR |
|---|---|---|---|---|
| 1/8”–27 NPT | 9/16”–18 UNF | 14 | 7.65 x 1.78 | |
| 1/4”–18 NPT | 9/16”–18 UNF | 14 | 7.65 x 1.78 | |
| 1/4”–18 NPT | 11/16”–16 UN | 19 | 9.25 x 1.78 | |
| 3/8”–18 NPT | 9/16”–18 UNF | 19 | 7.65 x 1.78 | |
| 3/8”–18 NPT | 11/16”–16 UN | 19 | 9.25 x 1.78 | |
| 3/8”–18 NPT | 13/16”–16 UN | 19 | 12.42 x 1.78 | |
| 1/2”–14 NPT | 11/16”–16 UN | 22 | 9.25 x 1.78 | |
| 1/2”–14 NPT | 13/16”–16 UN | 22 | 12.42 x 1.78 | |
| 1/2”–14 NPT | 1”–14 UNS | 27 | 15.60 x 1.78 | |
| 3/4”–14 NPT | 1.3/16”–12 UN | 30 | 18.77 x 1.78 | |
| 1”–11.5 NPT | 1.7/16”–12 UN | 37 | 23.52 x 1.78 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
