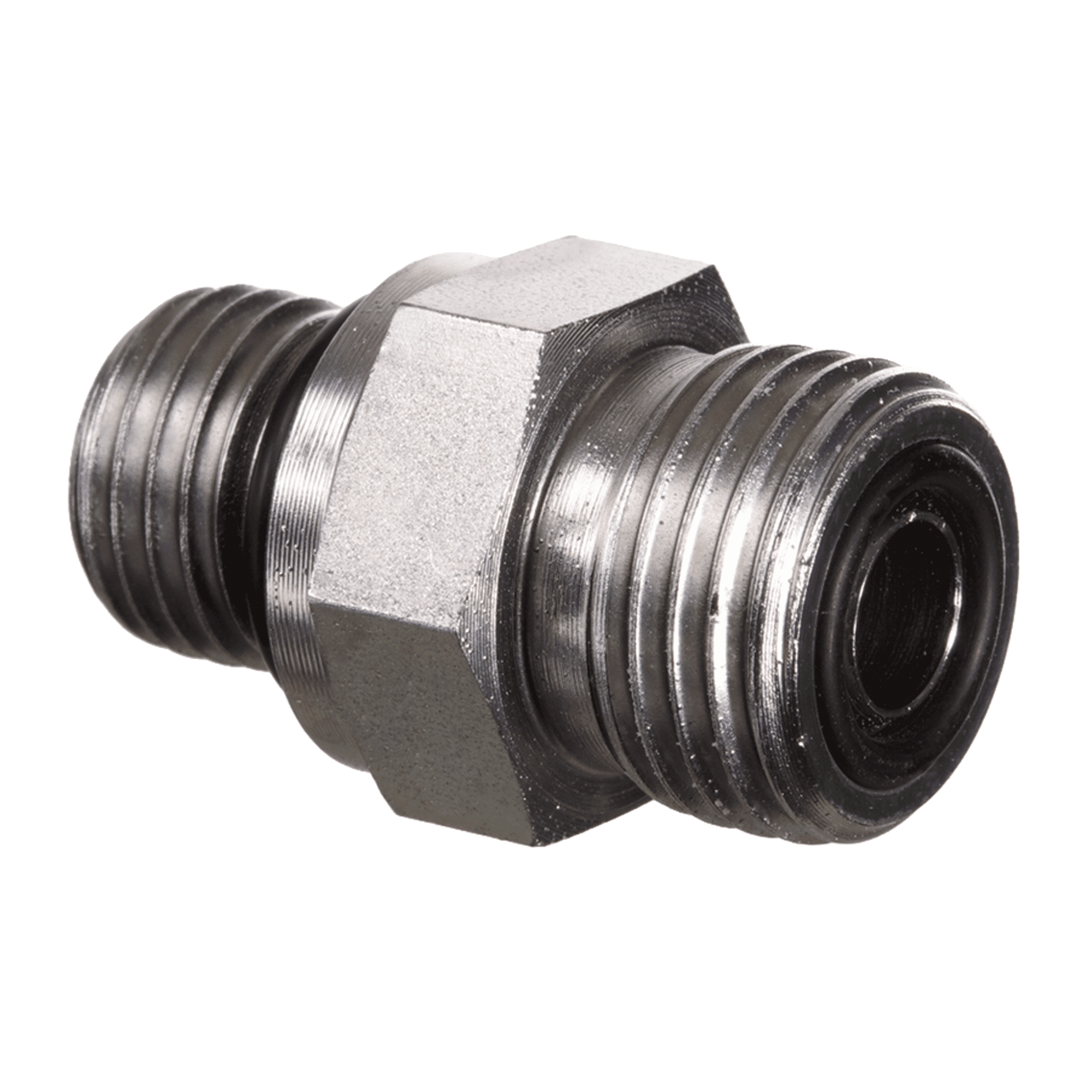

Screw-in sockets. Straight. Metric cylindrical outer thread to oRFS external threads. O-ring seal on screw-in socket one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 Metric | G2 UN / UNF | SW mm | OR1 | OR2 |
|---|---|---|---|---|---|
| M 10 x 1 | 9/16”-18 UNF | 17 | 8.2 x 1.5 | 7.65 x 1.78 | |
| M 12 x 1.5 | 9/16”-18 UNF | 17 | 9.4 x 2.1 | 7.65 x 1.78 | |
| M 14 x 1.5 | 11/16”-16 UN | 19 | 11.4 x 2.1 | 9.25 x 1.78 | |
| M 16 x 1.5 | 11/16”-16 UN | 22 | 13.4 x 2.1 | 9.25 x 1.78 | |
| M 18 x 1.5 | 11/16”-16 UN | 24 | 15.4 x 2.1 | 9.25 x 1.78 | |
| M 18 x 1.5 | 13/16”-16 UN | 24 | 15.4 x 2.1 | 12.42 x 1.78 | |
| M 18 x 1.5 | 1”–14 UNS | 27 | 15.4 x 2.1 | 23.52 x 1.78 | |
| M 22 x 1.5 | 13/16”-16 UN | 27 | 19.4 x 2.1 | 12.42 x 1.78 | |
| M 22 x 1.5 | 1”–14 UNS | 27 | 19.4 x 2.1 | 15.60 x 1.78 | |
| M 22 x 1.5 | 1.3/16”-12 UN | 32 | 19.4 x 2.1 | 18.77 x 1.78 | |
| M 27 x 2 | 1”–14 UNS | 32 | 23.7 x 2.8 | 15.60 x 1.78 | |
| M 27 x 2 | 1.3/16”-12 UN | 32 | 23.7 x 2.8 | 18.77 x 1.78 | |
| M 33 x 2 | 1.3/16”-12 UN | 41 | 29.7 x 2.8 | 18.77 x 1.78 | |
| M 33 x 2 | 1.7/16”-12 UN | 41 | 29.7 x 2.8 | 23.52 x 1.78 | |
| M 33 x 2 | 1.11/16”-12 UN | 46 | 29.7 x 2.8 | 29.87 x 1.78 | |
| M 42 x 2 | 1.7/8”-12 UN | 50 | 38.7 x 2.8 | 23.52 x 1.78 | |
| M 42 x 2 | 1.11/16”-12 UN | 50 | 38.7 x 2.8 | 29.87 x 1.78 | |
| M 48 x 2 | 1.11/16”-12 UN | 55 | 46.7 x 2.8 | 29.87 x 1.78 | |
| M 48 x 2 | 2”–12 UN | 55 | 46.7 x 2.8 | 37.82 x 1.78 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
