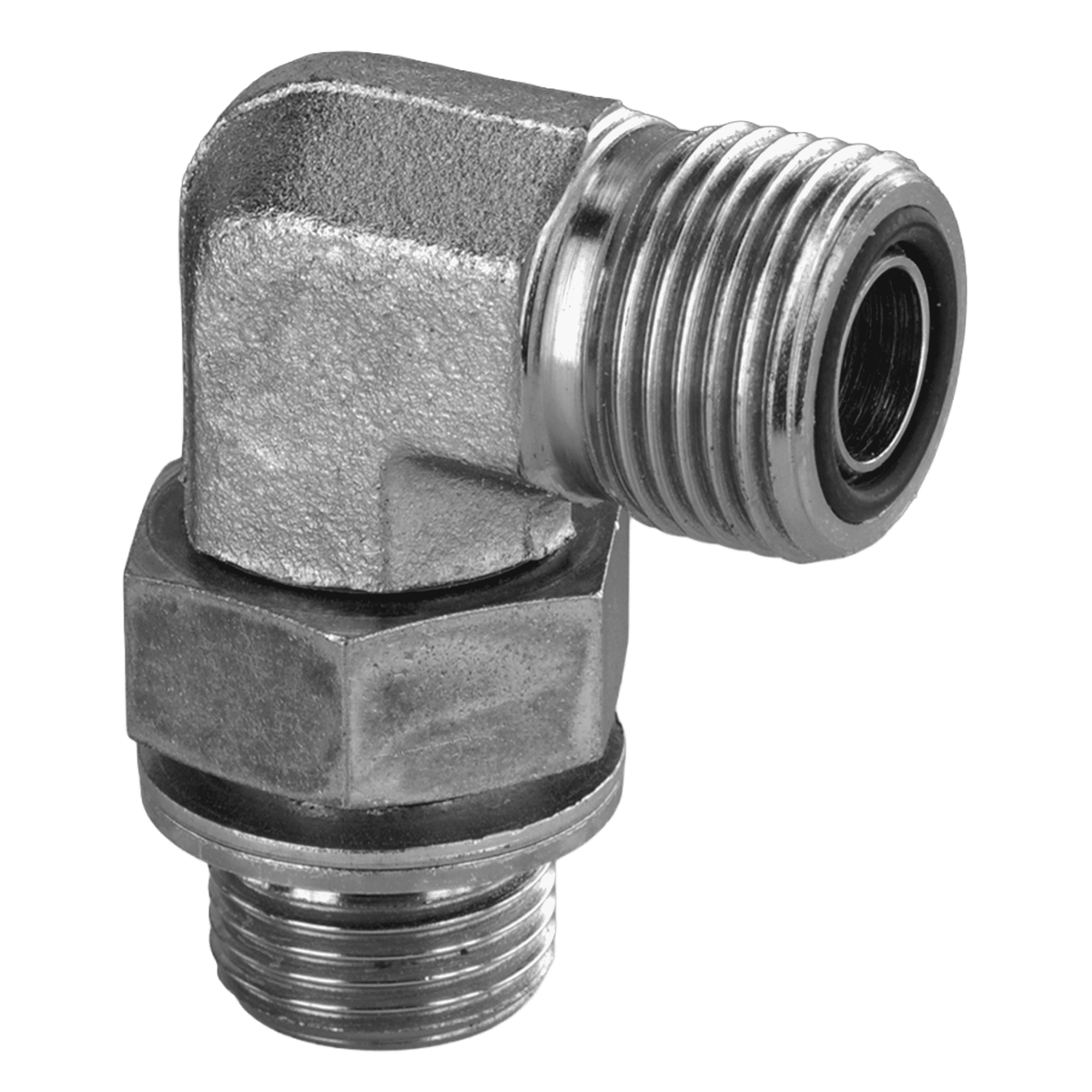

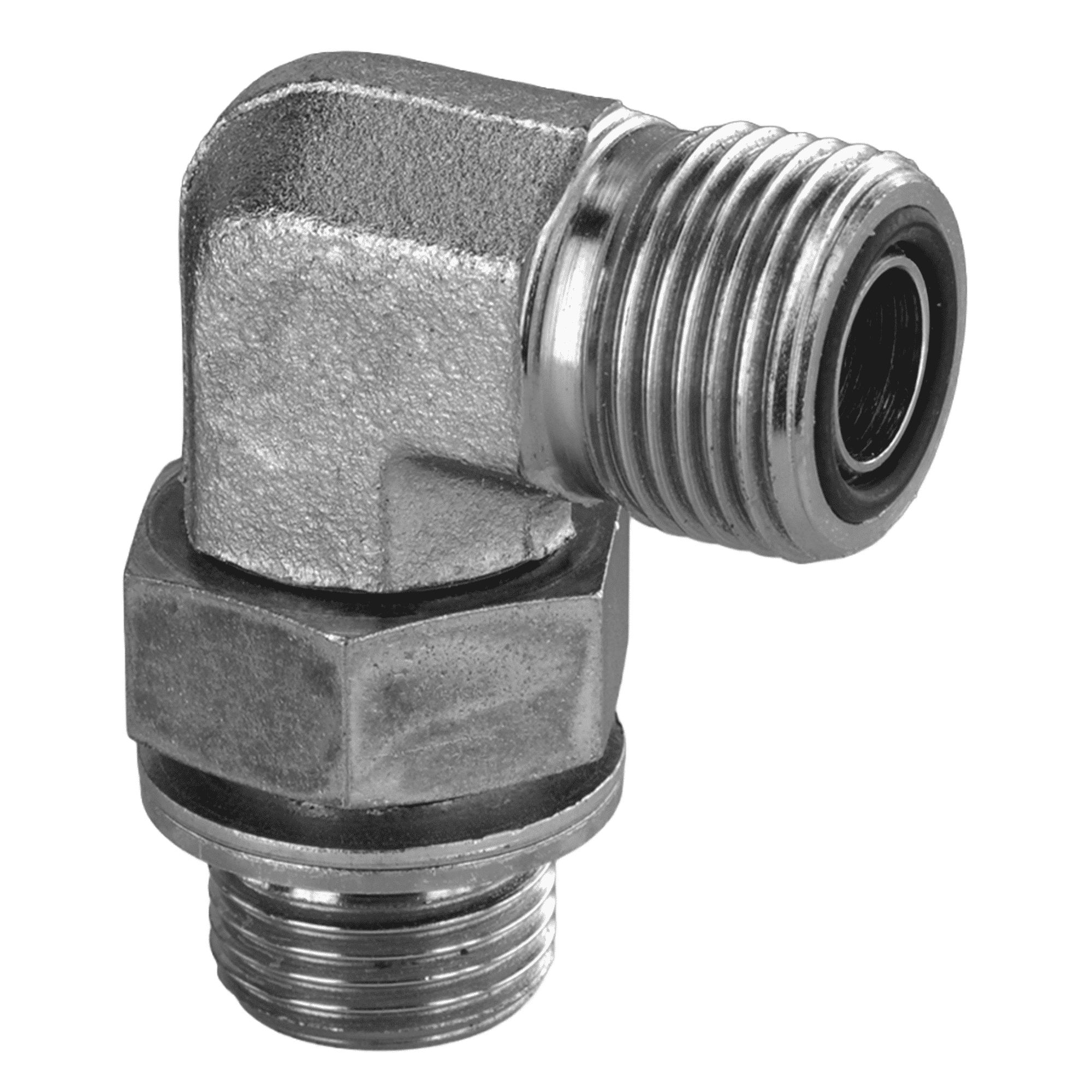

Screw-in socket, angle 90°. Adjustable direction screw-in socket. Metric cylindrical outer thread to oRFS external threads. Thread socket with O-ring + spacer diaphragm ring one end, flat seal with O-ring the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 15 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | OR1 | OR2 |
|---|---|---|---|---|---|---|
| M 10 x 1 | 9/16”-18 UNF | 14 | 15 | 8.00 x 1.50 | 7.65 x 1.78 | |
| M 12 x 1.5 | 9/16”-18 UNF | 14 | 18 | 9.30 x 2.30 | 7.65 x 1.78 | |
| M 14 x 1.5 | 11/16”-16 UN | 19 | 20 | 11.30 x 2.30 | 9.25 x 1.78 | |
| M 16 x 1.5 | 11/16”-16 UN | 19 | 20 | 13.30 x 2.30 | 9.25 x 1.78 | |
| M 18 x 1.5 | 13/16”-16 UN | 19 | 25 | 15.30 x 2.30 | 12.42 x 1.78 | |
| M 22 x 1.5 | 13/16”-16 UN | 19 | 28 | 19.30 x 2.30 | 12.42 x 1.78 | |
| M 22 x 1.5 | 1”–14 UNS | 27 | 28 | 19.30 x 2.30 | 15.60 x 1.78 | |
| M 27 x 2 | 1”–14 UNS | 27 | 32 | 23.47 x 2.95 | 15.60 x 1.78 | |
| M 27 x 2 | 1.3/16”-12 UN | 30 | 32 | 23.47 x 2.95 | 18.77 x 1.78 | |
| M 33 x 2 | 1.3/16”-12 UN | 30 | 42 | 29.74 x 2.95 | 18.77 x 1.78 | |
| M 33 x 2 | 1.7/16”-12 UN | 36 | 42 | 29.74 x 2.95 | 23.52 x 1.78 | |
| M 42 x 2 | 1.7/16”-12 UN | 36 | 50 | 38.00 x 3.00 | 23.52 x 1.78 | |
| M 42 x 2 | 1.11/16”-12 UN | 41 | 50 | 38.00 x 3.00 | 29.87 x 1.78 | |
| M 48 x 2 | 1.11/16”-12 UN | 41 | 56 | 44.04 x 3.53 | 29.87 x 1.78 | |
| M 48 x 2 | 2”–12 UN | 50 | 56 | 44.04 x 3.53 | 37.82 x 1.78 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
