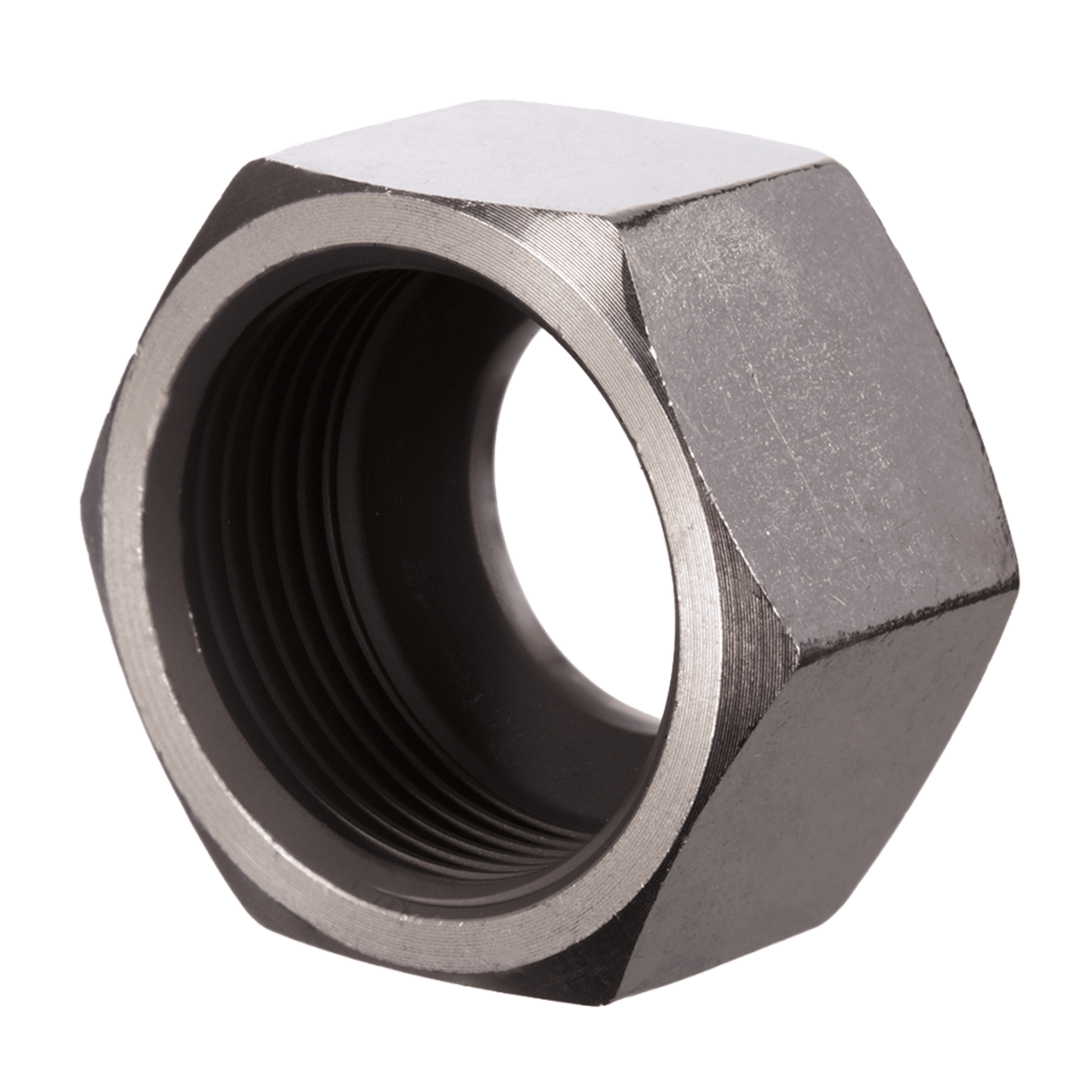

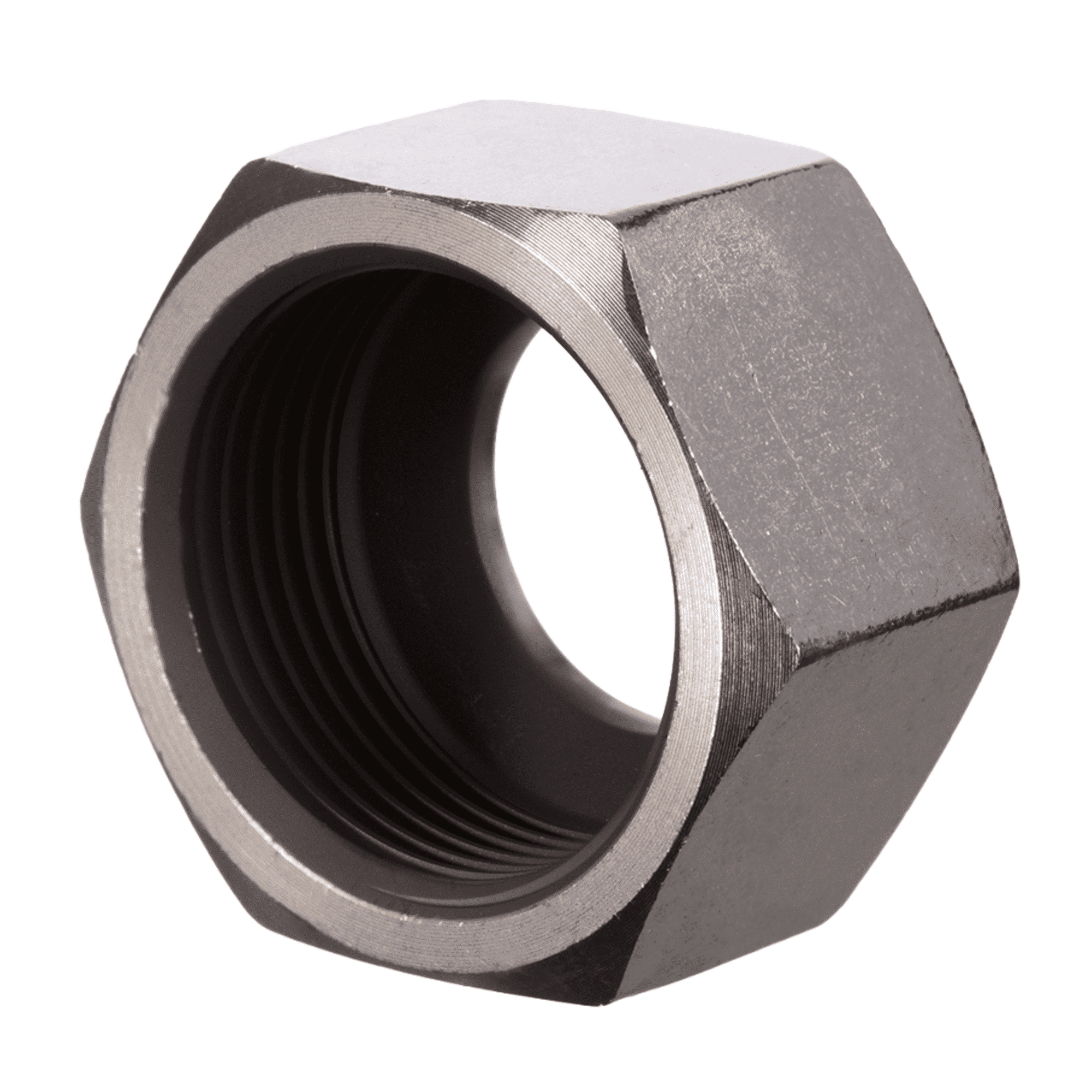

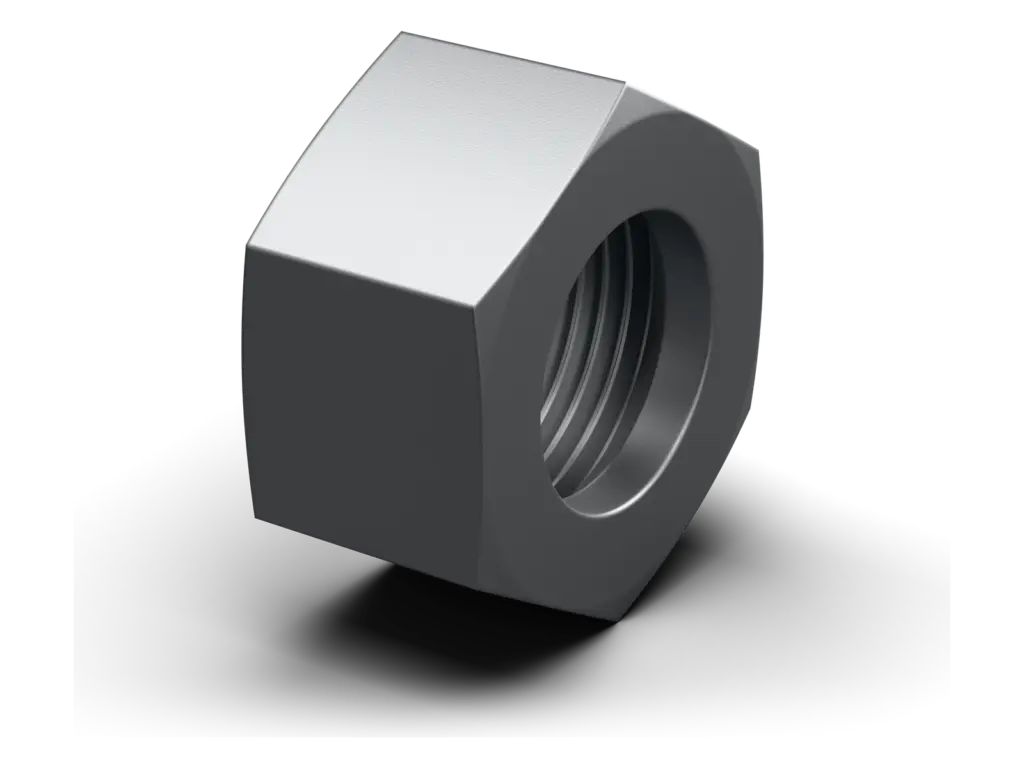

Union nut. Metric nut thread. To DIN 3870. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 28 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Ø d2 mm | G1 | L1 mm | S1 |
|---|---|---|---|---|---|
| LL | 4.0 | M 8 x 1 | 11.5 | 10 | |
| LL | 5.0 | M 10 x 1 | 12.0 | 12 | |
| LL | 6.0 | M 10 x 1 | 12.0 | 12 | |
| LL | 8.0 | M 12 x 1 | 12.5 | 14 | |
| LL | 10.0 | M 14 x 1 | 13.5 | 17 | |
| LL | 12.0 | M 16 x 1 | 13.5 | 19 | |
| LL | 16.0 | M 22 x 1.5 | 17.5 | 27 | |
| L | 6.0 | M 12 x 1.5 | 15.0 | 14 | |
| L | 8.0 | M 14 x 1.5 | 15.0 | 17 | |
| L | 10.0 | M 16 x 1.5 | 16.0 | 19 | |
| L | 12.0 | M 18 x 1.5 | 16.0 | 22 | |
| L | 15.0 | M 22 x 1.5 | 17.5 | 27 | |
| L | 18.0 | M 26 x 1.5 | 18.5 | 32 | |
| L | 18.0 | M 27 x 2 | 18.0 | 32 | |
| L | 22.0 | M 30 x 2 | 20.5 | 36 | |
| L | 28.0 | M 36 x 2 | 21.5 | 41 | |
| L | 35.3 | M 45 x 2 | 24.5 | 50 | |
| L | 42.0 | M 52 x 2 | 24.5 | 60 | |
| S | 6.0 | M 14 x 1.5 | 17.0 | 17 | |
| S | 8.0 | M 16 x 1.5 | 17.0 | 19 | |
| S | 10.0 | M 18 x 1.5 | 18.0 | 22 | |
| S | 12.0 | M 20 x 1.5 | 18.0 | 24 | |
| S | 14.0 | M 22 x 1.5 | 21.0 | 27 | |
| S | 16.0 | M 24 x 1.5 | 21.0 | 30 | |
| S | 20.0 | M 30 x 2 | 24.5 | 36 | |
| S | 25.0 | M 36 x 2 | 27.5 | 46 | |
| S | 30.0 | M 42 x 2 | 29.5 | 50 | |
| S | 38.0 | M 52 x 2 | 33.0 | 60 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
