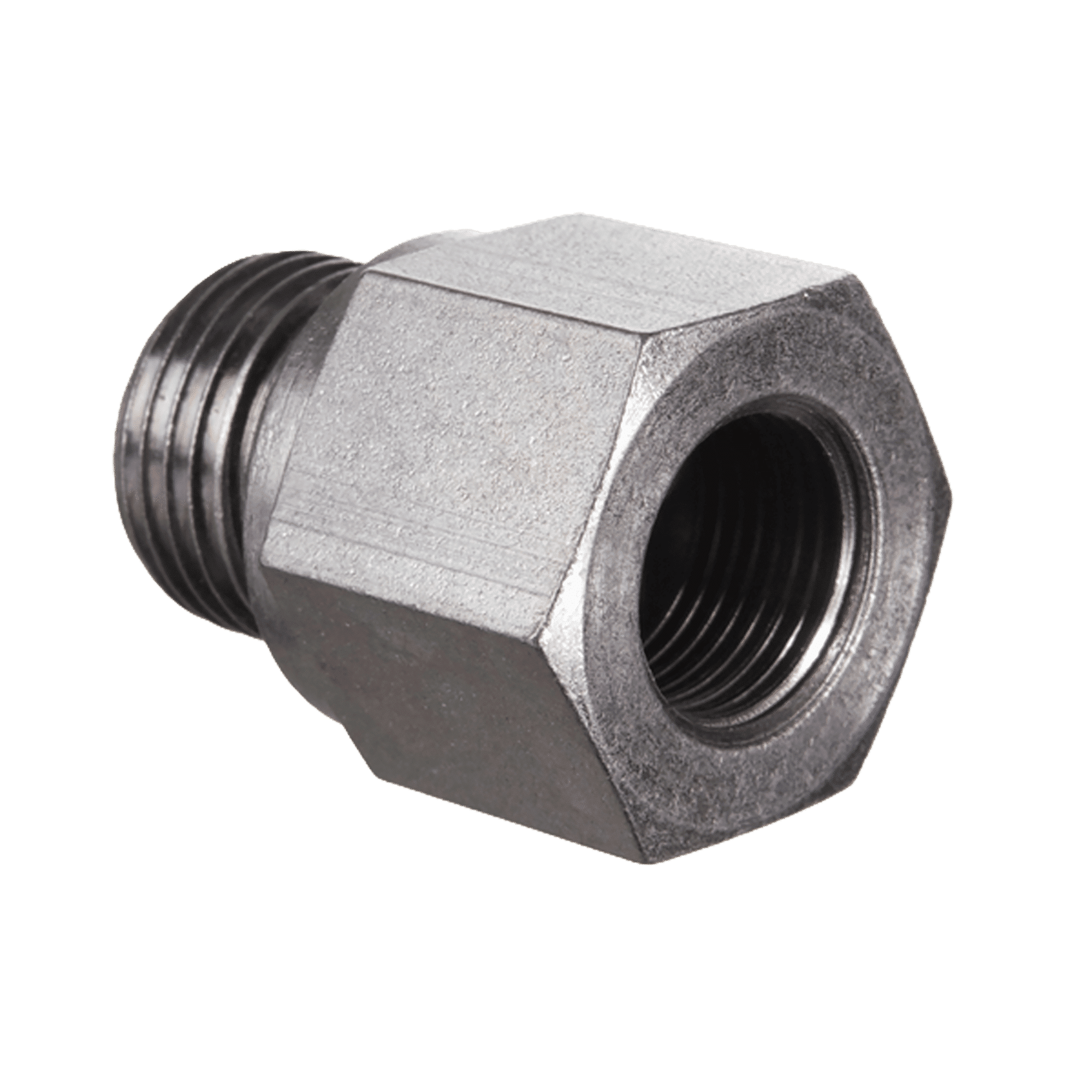

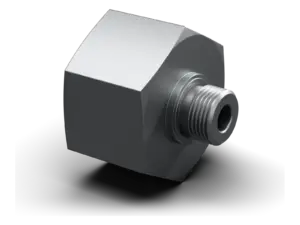

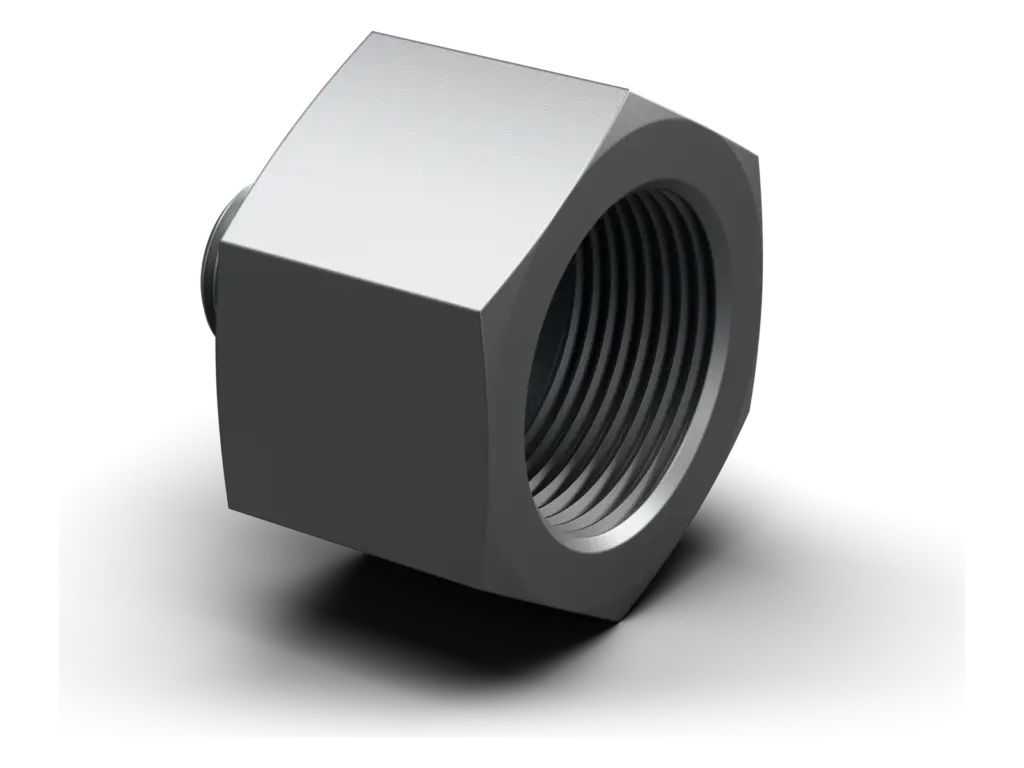

BSP Reducing Bush Long (RI – ED)

Name: BSP Reducing Bush Long (RI – ED)
Brand: Motus Hydraulics
SKU: BSP-REDUCING-BUSH-LONG

Reducing adapter, long. Reducing adapters. BSP external thread, cylindrical to bSP cylindrical internal threads. Shape E. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 24 sizes, each with its own part number.

24sizes
EDB-BPF-0204-MC to EDB-BPF-2432-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

PN: Nominal pressure PB = Max. operating pressure Product Version: Stainless Steel (SS)

Identification	Working pressure bar	Ø d1 mm	G1	G2	Ø d3 mm	i1 mm	i2 mm	L mm	SW mm
EDB-BPF-0204-MC	PN 400	4	G 1/8”–28	G 1/4”–19	13.9	8	17.0	31.0	19
EDB-BPF-0206-MC	PN 400	4	G 1/8”–28	G 3/8”–19	13.9	8	17.0	32.0	24
EDB-BPF-0402-MC	PN 400	5	G 1/4”–19	G 1/8”–28	18.9	12	12.0	28.0	19
EDB-BPF-0406-MC	PN 400	5	G 1/4”–19	G 3/8”–19	18.9	12	17.0	36.0	24
EDB-BPF-0408-MC	PN 400	5	G 1/4”–19	G 1/2”–14	18.9	12	20.0	40.0	27
EDB-BPF-0412-MC	PN 400	5	G 1/4”–19	G 3/4”–14	18.9	12	22.0	43.0	36
EDB-BPF-0604-MC	PN 400	8	G 3/8”–19	G 1/4”–19	21.9	12	17.0	36.0	22
EDB-BPF-0608-MC	PN 400	8	G 3/8”–19	G 1/2”–14	21.9	12	20.0	41.0	27
EDB-BPF-0612-MC	PN 315	8	G 3/8”–19	G 3/4”–14	21.9	12	22.0	44.0	36
EDB-BPF-0806-MC	PN 400	12	G 1/2”–14	G 3/8”–19	26.9	14	17.0	36.0	27
EDB-BPF-0812-MC	PN 315	12	G 1/2”–14	G 3/4”–14	26.9	14	22.0	46.0	36
EDB-BPF-0816-MC	PN 315	12	G 1/2”–14	G 1”–11	26.9	14	24.5	49.0	41
EDB-BPF-0820-MC	PN 315	10	G 1/2”–14	G 1.1/4”–11	26.9	14	26.5	53.0	55
EDB-BPF-1208-MC	PN 315	16	G 3/4”–14	G 1/2”–14	31.9	16	20.0	41.0	32
EDB-BPF-1216-MC	PN 315	16	G 3/4”–14	G 1”–11	31.9	16	24.5	51.0	41
EDB-BPF-1220-MC	PN 315	16	G 3/4”–14	G 1.1/4”–11	31.9	16	26.5	55.0	55
EDB-BPF-1224-MC	PN 250	16	G 3/4”–14	G 1.1/2”–11	31.9	16	28.5	57.0	60
EDB-BPF-1612-MC	PN 315	20	G 1”–11	G 3/4”–14	39.9	18	22.0	47.0	41
EDB-BPF-1620-MC	PN 315	20	G 1”–11	G 1.1/4”–11	39.9	18	26.5	57.0	55
EDB-BPF-1624-MC	PN 250	20	G 1”–11	G 1.1/2”–11	39.9	18	28.5	59.0	60
EDB-BPF-2016-MC	PN 315	25	G 1.1/4”–11	G 1”–11	49.9	20	24.5	52.0	50
EDB-BPF-2024-MC	PN 250	25	G 1.1/4”–11	G 1.1/2”–11	49.9	20	28.5	60.0	60
EDB-BPF-2420-MC	PN 250	32	G 1.1/2”–11	G 1.1/4”–11	54.9	22	26.5	58.0	55
EDB-BPF-2432-MC	PN 160	40	G 2”–11	G 1.1/2”–11	69.9	24	28.5	65.5	70

The details

Connection 1: BSP external thread, cylindrical
Sealing form 1: Shape E
Connection 2: BSP cylindrical internal threads
Design: Reducing adapters
Construction: Long
Material: Steel
Surface: MotusCoat™

Downloads

BSP Reducing Bush Long (RI – ED) data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
