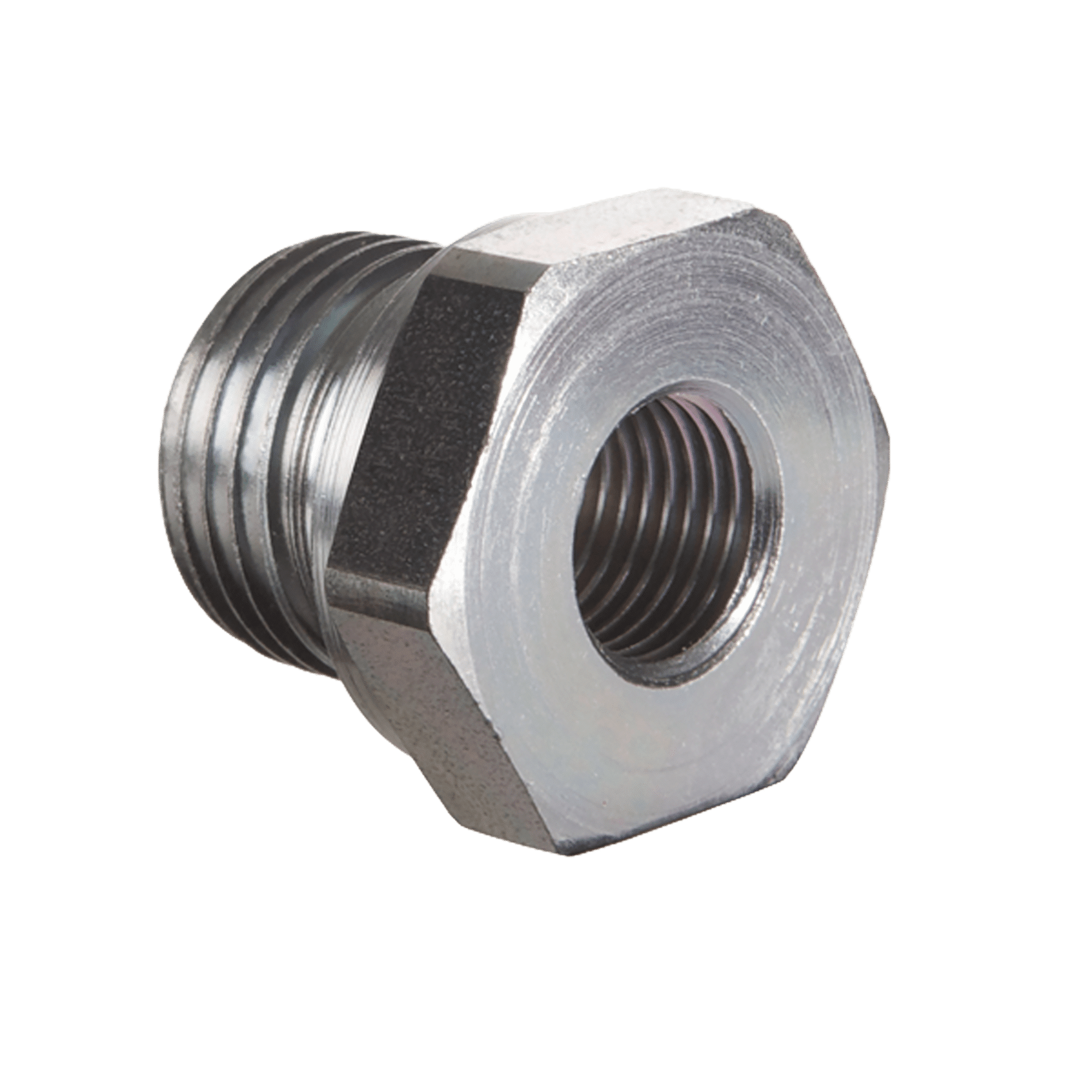

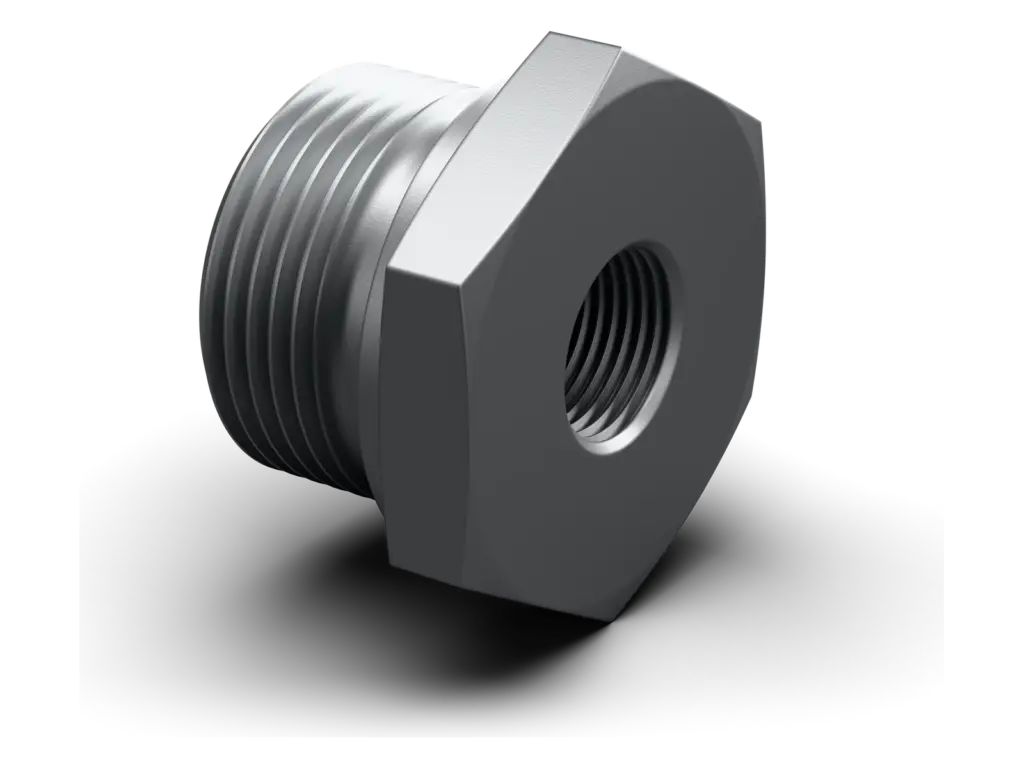

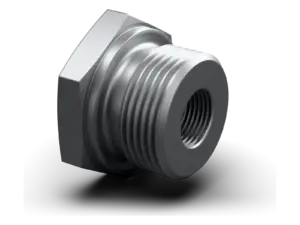

BSP Reducing Bush Short (RI)

Name: BSP Reducing Bush Short (RI)
Brand: Motus Hydraulics
SKU: BSP-REDUCING-BUSH-SHORT

Reducing adapter, Short. Reducing adapters. BSP external thread, cylindrical to bSP cylindrical internal threads. Shape B. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 13 sizes, each with its own part number.

13sizes
BPM-BPF-0602-MC to BPM-BPF-2416-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

PN: Nominal pressure PB = Max. operating pressure Product Version: Stainless Steel (SS)

Identification	Working pressure bar	G1	G2	Ø d3 mm	i1 mm	i2 mm	L mm	SW mm
BPM-BPF-0602-MC	PN 400	G 3/8”–19	G 1/8”–28	22	12	9	22.5	22
BPM-BPF-0802-MC	PN 400	G 1/2”–14	G 1/8”–28	26	14	9	24.0	27
BPM-BPF-0804-MC	PN 315	G 1/2”–14	G 1/4”–19	26	14	13	24.0	27
BPM-BPF-1204-MC	PN 315	G 3/4”–14	G 1/4”–19	32	16	13	26.0	32
BPM-BPF-1206-MC	PN 315	G 3/4”–14	G 3/8”–19	32	16	14	26.0	32
BPM-BPF-1604-MC	PN 315	G 1”–11	G 1/4”–19	39	18	14	29.0	41
BPM-BPF-1606-MC	PN 315	G 1”–11	G 3/8”–19	39	18	14	29.0	41
BPM-BPF-1608-MC	PN 315	G 1”–11	G 1/2”–14	39	18	16	29.0	41
BPM-BPF-2008-MC	PN 160	G 1.1/4”–11	G 1/2”–14	49	20	16	32.0	50
BPM-BPF-2012-MC	PN 160	G 1.1/4”–11	G 3/4”–14	49	20	18	32.0	50
BPM-BPF-2408-MC	PN 160	G 1.1/2”–11	G 1/2”–14	55	22	16	36.0	55
BPM-BPF-2412-MC	PN 160	G 1.1/2”–11	G 3/4”–14	55	22	18	36.0	55
BPM-BPF-2416-MC	PN 160	G 1.1/2”–11	G 1”–11	55	22	20	36.0	55

The details

Connection 1: BSP external thread, cylindrical
Sealing form 1: Shape B
Connection 2: BSP cylindrical internal threads
Design: Reducing adapters
Construction: Short
Material: Steel
Surface: MotusCoat™

Downloads

BSP Reducing Bush Short (RI) data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
