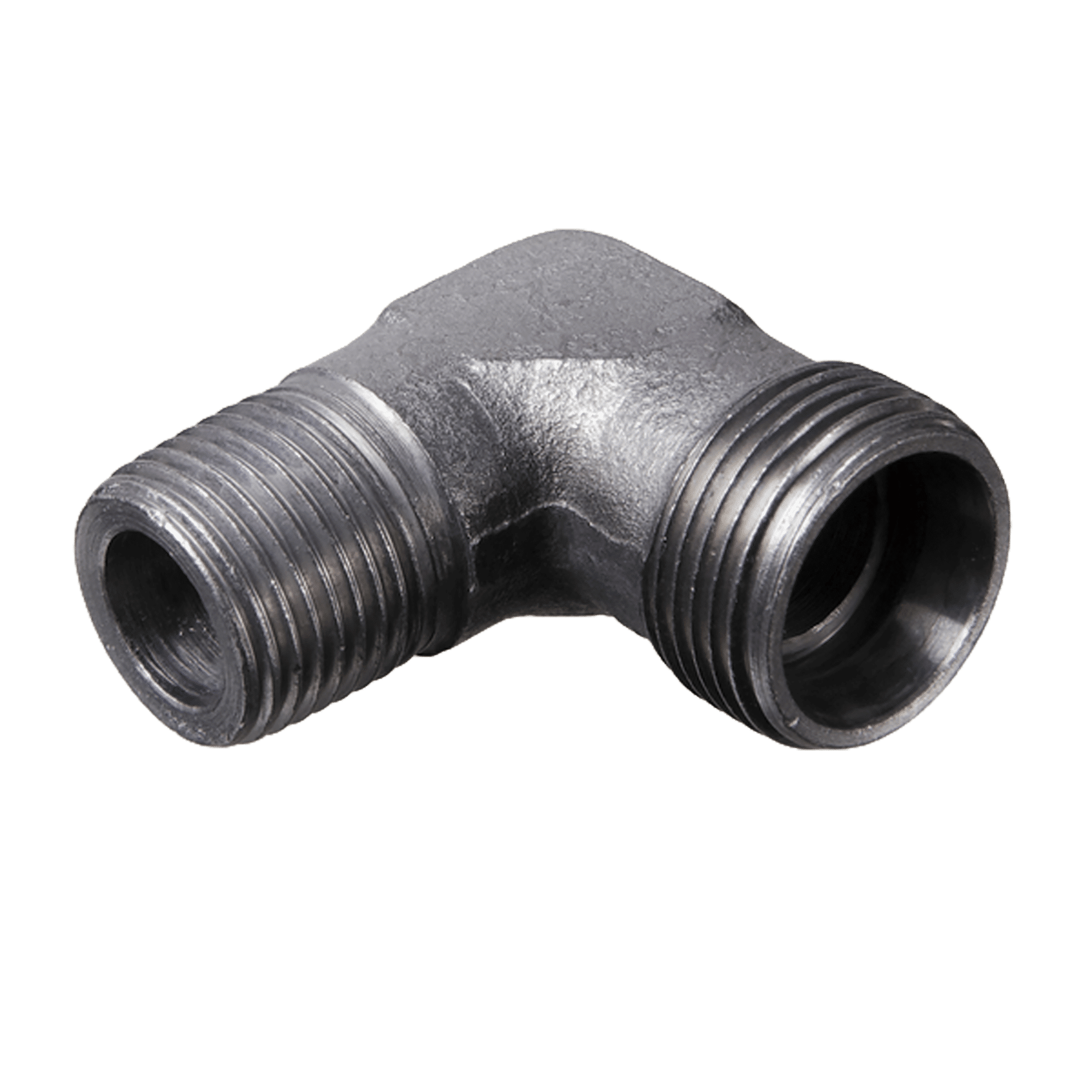

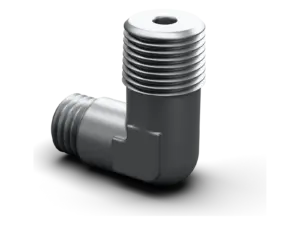

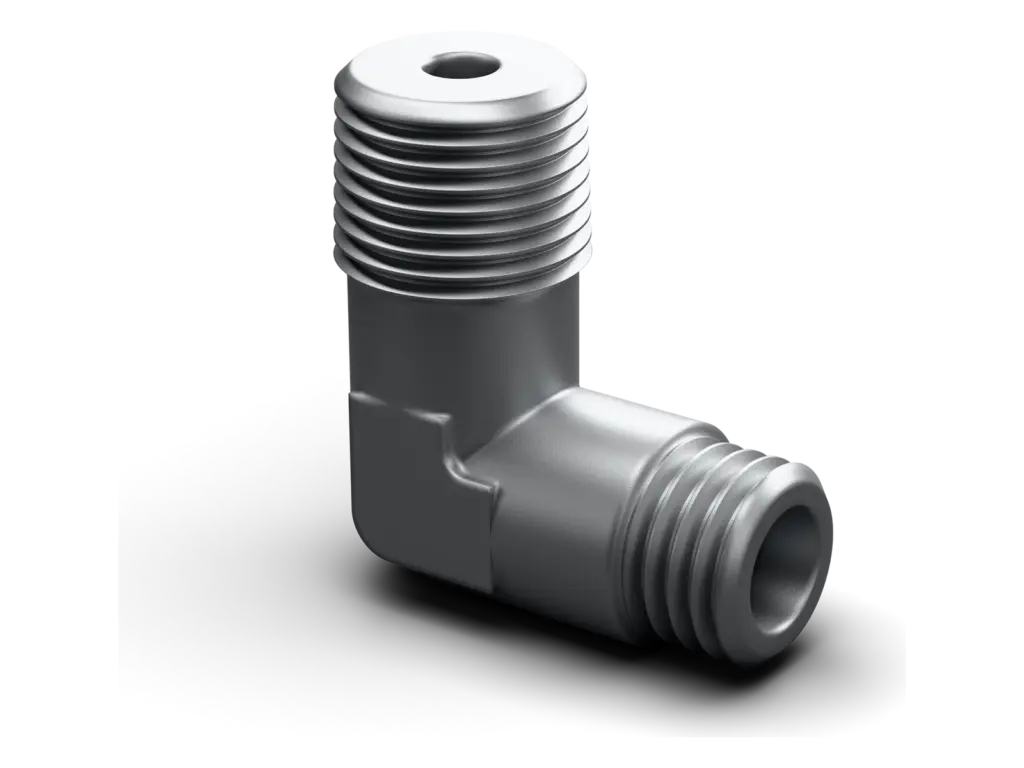

Screw-in fitting, angle 90°. BSPT conical external threads to metric cylindrical outer thread. Thread seal one end, 24° inner cone the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 37 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G | i mm | L4 mm | L5 mm | L7 mm | SW |
|---|---|---|---|---|---|---|---|---|---|
| LL | PN 100 | 4 | R 1/8”K | 8 | 11.0 | 17.0 | 15.0 | 9 | |
| LL | PN 100 | 5 | R 1/8”K | 8 | 8.0 | 17.0 | 13.5 | 9 | |
| LL | PN 100 | 6 | R 1/8”K | 8 | 9.5 | 17.0 | 15.0 | 9 | |
| LL | PN 100 | 8 | R 1/8”K | 8 | 11.5 | 20.0 | 17.0 | 12 | |
| LL | PN 100 | 10 | R 1/4”K | 12 | 15.5 | 26.0 | 21.0 | 14 | |
| LL | PN 100 | 12 | R 1/4”K | 12 | 12.0 | 21.5 | 18.0 | 17 | |
| L | PN 315 | 6 | R 1/8”K | 8 | 12.0 | 20.0 | 19.0 | 12 | |
| L | PN 315 | 8 | R 1/8”K | 8 | 14.0 | 26.0 | 21.0 | 12 | |
| L | PN 315 | 10 | R 1/8”K | 8 | 15.0 | 27.0 | 22.0 | 14 | |
| L | PN 315 | 6 | R 1/4”K | 12 | 14.0 | 26.0 | 21.0 | 12 | |
| L | PN 315 | 8 | R 1/4”K | 12 | 14.0 | 26.0 | 21.0 | 12 | |
| L | PN 315 | 10 | R 1/4”K | 12 | 15.0 | 27.0 | 22.0 | 14 | |
| L | PN 315 | 12 | R 1/4”K | 12 | 17.0 | 28.0 | 24.0 | 17 | |
| L | PN 315 | 15 | R 1/4”K | 12 | 21.0 | 34.0 | 28.0 | 19 | |
| L | PN 315 | 6 | R 3/8”K | 12 | 17.0 | 28.0 | 24.0 | 17 | |
| L | PN 315 | 8 | R 3/8”K | 12 | 19.0 | 28.0 | 26.0 | 17 | |
| L | PN 315 | 10 | R 3/8”K | 12 | 17.0 | 28.0 | 24.0 | 17 | |
| L | PN 315 | 12 | R 3/8”K | 12 | 17.0 | 28.0 | 24.0 | 17 | |
| L | PN 315 | 15 | R 3/8”K | 12 | 21.0 | 34.0 | 28.0 | 19 | |
| L | PN 315 | 18 | R 3/8”K | 12 | 23.5 | 36.0 | 31.0 | 24 | |
| L | PN 315 | 8 | R 1/2”K | 13 | 20.0 | 34.0 | 27.0 | 19 | |
| L | PN 316 | 10 | R 1/2”K | 14 | 23.0 | 34.0 | 30.0 | 19 |
| Identification | Series | Working pressure bar | Ø d2 mm | G | i mm | L4 mm | L5 mm | L7 mm | SW |
|---|---|---|---|---|---|---|---|---|---|
| L | PN 315 | 12 | R 1/2”K | 14 | 23.0 | 34.0 | 30.0 | 19 | |
| L | PN 315 | 15 | R 1/2”K | 14 | 21.0 | 34.0 | 28.0 | 19 | |
| L | PN 315 | 18 | R 1/2”K | 14 | 23.5 | 36.0 | 31.0 | 24 | |
| L | PN 315 | 12 | R 3/4”K | 16 | 28.0 | 42.0 | 35.0 | 27 | |
| L | PN 315 | 18 | R 3/4”K | 16 | 27.5 | 42.0 | 35.0 | 27 | |
| L | PN 160 | 22 | R 3/4”K | 16 | 27.5 | 42.0 | 35.0 | 27 | |
| S | PN 400 | 6 | R 1/4”K | 12 | 16.0 | 26.0 | 23.0 | 12 | |
| S | PN 400 | 8 | R 1/4”K | 12 | 17.0 | 27.0 | 24.0 | 14 | |
| S | PN 400 | 10 | R 3/8”K | 12 | 17.5 | 28.0 | 25.0 | 17 | |
| S | PN 400 | 12 | R 3/8”K | 12 | 21.5 | 28.0 | 29.0 | 17 | |
| S | PN 400 | 16 | R 3/8”K | 12 | 24.5 | 32.0 | 33.0 | 24 | |
| S | PN 400 | 12 | R 1/2”K | 14 | 23.5 | 34.0 | 31.0 | 19 | |
| S | PN 400 | 14 | R 1/2”K | 14 | 22.0 | 32.0 | 30.0 | 19 | |
| S | PN 400 | 16 | R 1/2”K | 14 | 24.5 | 32.0 | 33.0 | 24 | |
| S | PN 400 | 20 | R 1/2”K | 14 | 26.5 | 42.0 | 37.0 | 27 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
