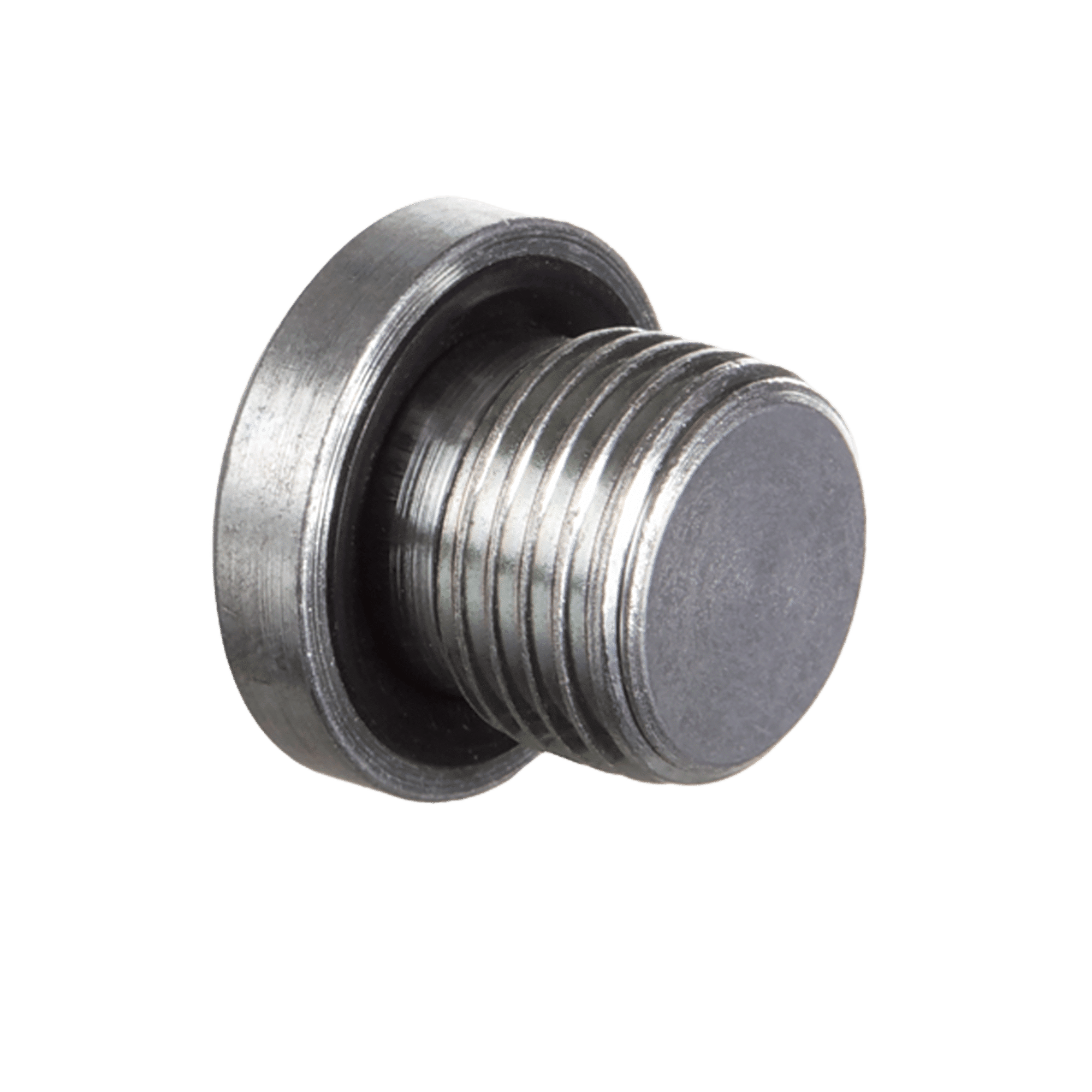

Blanking screw with hexagon socket. Straight. Metric cylindrical outer thread. Shape E. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 14 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Working pressure bar | G | D mm | i mm | l mm | S mm |
|---|---|---|---|---|---|---|
| PN 400 | M 8 x 1 | 12.0 | 8 | 12.0 | 4 | |
| PN 400 | M 10 x 1 | 14.0 | 8 | 12.0 | 5 | |
| PN 400 | M 12 x 1.5 | 17.0 | 12 | 17.0 | 6 | |
| PN 400 | M 14 x 1.5 | 19.0 | 12 | 17.0 | 6 | |
| PN 400 | M 16 x 1.5 | 22.0 | 12 | 17.0 | 8 | |
| PN 400 | M 18 x 1.5 | 24.0 | 12 | 17.0 | 8 | |
| PN 400 | M 20 x 1.5 | 26.0 | 14 | 19.0 | 10 | |
| PN 400 | M 22 x 1.5 | 27.0 | 14 | 19.0 | 10 | |
| PN 400 | M 24 x 1.5 | 29.9 | 14 | 19.0 | 12 | |
| PN 400 | M 26 x 1.5 | 32.0 | 16 | 21.0 | 12 | |
| PN 400 | M 27 x 2 | 32.0 | 16 | 21.0 | 12 | |
| PN 400 | M 33 x 2 | 40.0 | 16 | 22.5 | 17 | |
| PN 315 | M 42 x 2 | 50.0 | 16 | 22.5 | 22 | |
| PN 315 | M 48 x 2 | 55.0 | 16 | 22.5 | 24 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
