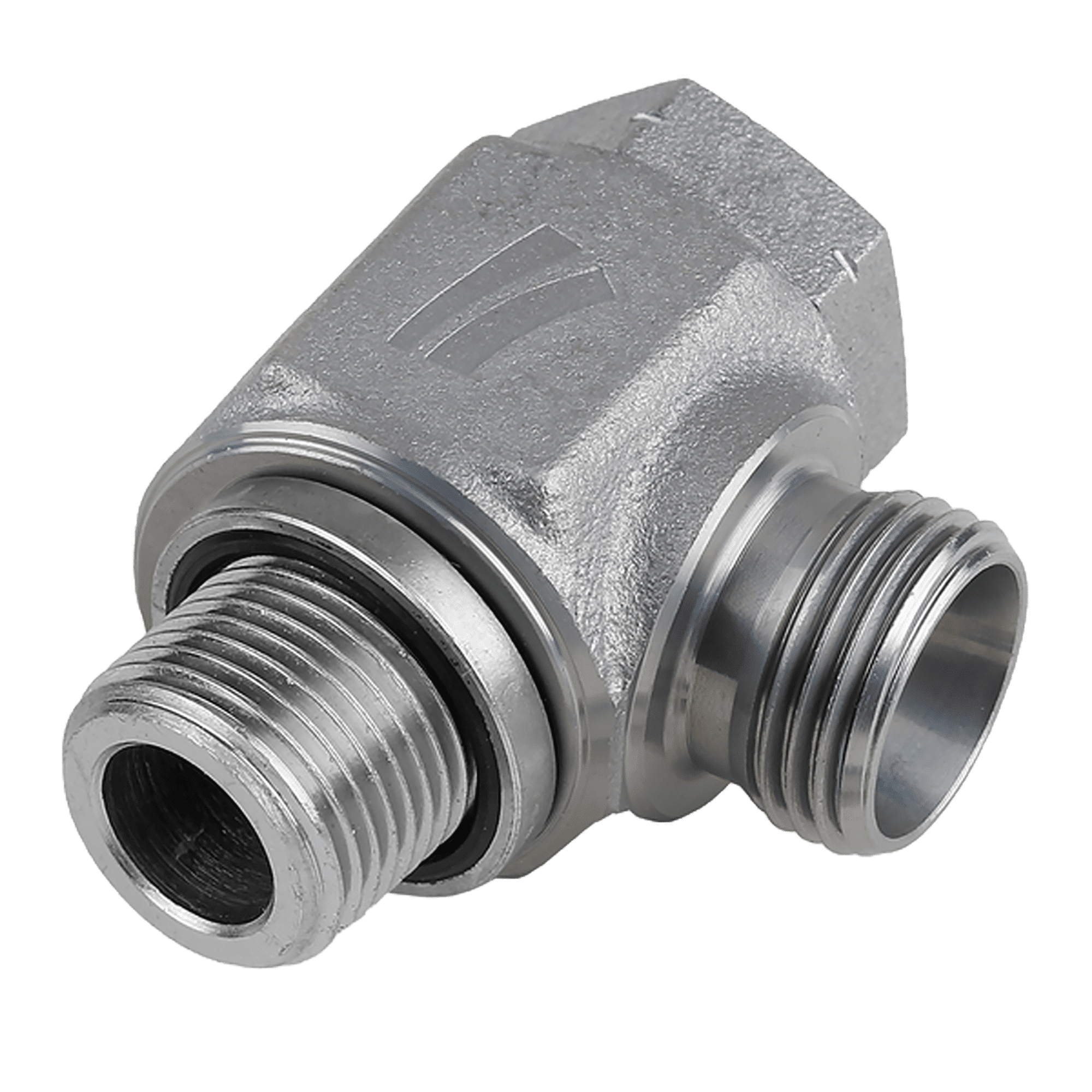

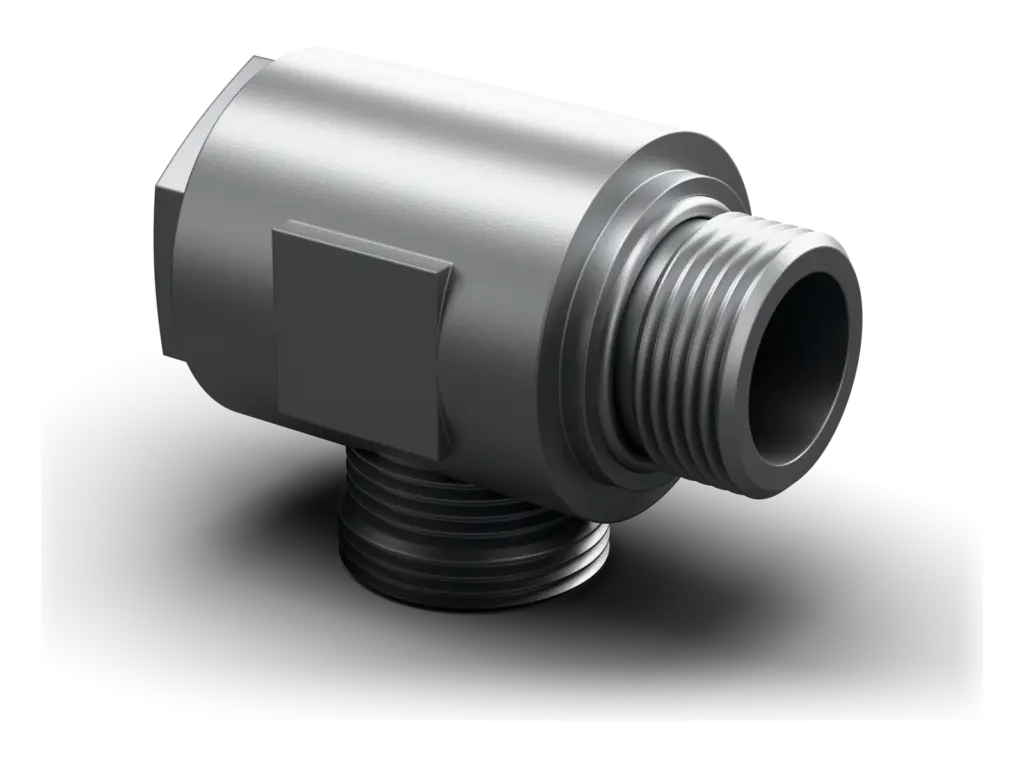

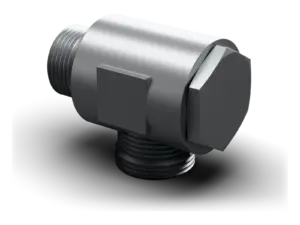

Banjo fitting, throttle free, angle 90°. Banjo coupling, throttle free. BSP external thread, cylindrical to metric cylindrical outer thread. Shape F (Sealing by O-ring and retaining ring) one end, 24° inner cone (CEL / CES) the other. To DIN 2353, ISO 8434-1. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 25 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Series | Working pressure bar | Ø d2 mm | G | Ø D mm | i mm | L1 mm | L2 mm | L4 mm | L7 mm | SW | S1 | OR mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LL | PN 100 | 4 | G 1/8”–28 | 14.5 | 8.0 | 23.5 | 10.5 | 14.0 | 18.0 | 17 | 17 | 7.65 x 1.78 | |
| LL | PN 100 | 6 | G 1/8”–28 | 14.5 | 8.0 | 23.5 | 10.5 | 13.5 | 19.0 | 17 | 17 | 7.65 x 1.78 | |
| LL | PN 100 | 8 | G 1/8”–28 | 14.5 | 8.0 | 23.5 | 10.5 | 13.5 | 19.0 | 17 | 17 | 7.65 x 1.78 | |
| L | PN 315 | 6 | G 1/8”–28 | 14.5 | 8.0 | 23.5 | 10.5 | 12.0 | 19.0 | 17 | 17 | 7.65 x 1.78 | |
| L | PN 315 | 8 | G 1/4”–19 | 19.0 | 13.0 | 29.0 | 14.0 | 14.5 | 21.5 | 22 | 19 | 11.10 x 1.78 | |
| L | PN 315 | 10 | G 1/4”–19 | 19.0 | 12.5 | 29.0 | 14.0 | 15.5 | 22.5 | 22 | 19 | 11.10 x 1.78 | |
| L | PN 315 | 12 | G 1/4”–19 | 19.0 | 12.0 | 34.0 | 16.5 | 18.0 | 25.0 | 27 | 19 | 11.10 x 1.78 | |
| L | PN 315 | 12 | G 3/8”–19 | 22.5 | 12.0 | 35.0 | 16.5 | 18.0 | 25.0 | 27 | 24 | 14.00 x 1.78 | |
| L | PN 315 | 12 | G 1/2”–14 | 27.0 | 14.0 | 46.0 | 21.5 | 20.5 | 27.5 | 32 | 27 | 18.77 x 1.78 | |
| L | PN 315 | 15 | G 1/2”–14 | 27.0 | 12.0 | 46.0 | 21.5 | 21.5 | 28.5 | 32 | 27 | 18.77 x 1.78 | |
| L | PN 315 | 18 | G 1/2”–14 | 27.0 | 14.0 | 46.0 | 21.5 | 21.0 | 28.5 | 32 | 27 | 18.77 x 1.78 | |
| L | PN 160 | 22 | G 3/4”–14 | 32.5 | 16.0 | 52.0 | 24.0 | 27.5 | 35.0 | 41 | 36 | 23.81 x 2.62 | |
| L | PN 160 | 28 | G 1”–11 | 40.0 | 18.0 | 64.0 | 30.5 | 32.0 | 39.5 | 50 | 46 | 29.82 x 2.62 | |
| L | PN 160 | 35 | G 1.1/4”–11 | 50.0 | 20.0 | 75.0 | 35.5 | 36.0 | 46.5 | 60 | 50 | 37.77 x 2.62 | |
| L | PN 160 | 42 | G 1.1/2”–11 | 55.5 | 22.0 | 74.0 | 40.5 | 40.5 | 51.5 | 70 | 60 | 41.28 x 3.53 | |
| S | PN 400 | 6 | G 1/4”–19 | 19.0 | 13.0 | 29.0 | 14.0 | 16.5 | 23.5 | 22 | 19 | 11.10 x 1.78 | |
| S | PN 400 | 8 | G 1/4”–19 | 19.0 | 13.0 | 29.0 | 14.0 | 16.5 | 23.5 | 22 | 19 | 11.10 x 1.78 | |
| S | PN 400 | 10 | G 3/8”–19 | 22.5 | 12.0 | 35.5 | 16.5 | 18.5 | 26.0 | 27 | 24 | 14.00 x 1.78 | |
| S | PN 400 | 12 | G 3/8”–19 | 22.5 | 12.0 | 35.0 | 16.5 | 18.5 | 26.0 | 27 | 24 | 14.00 x 1.78 | |
| S | PN 400 | 14 | G 1/2”–14 | 27.0 | 12.0 | 46.0 | 21.5 | 22.5 | 30.5 | 30 | 27 | 18.77 x 1.78 | |
| S | PN 315 | 16 | G 1/2”–14 | 27.0 | 14.0 | 46.0 | 21.5 | 22.0 | 30.5 | 30 | 27 | 18.77 x 1.78 | |
| S | PN 315 | 20 | G 3/4”–14 | 32.5 | 16.0 | 52.0 | 24.0 | 26.5 | 37.0 | 41 | 36 | 23.81 x 2.62 | |
| S | PN 250 | 25 | G 1”–11 | 40.0 | 19.0 | 63.0 | 30.5 | 31.5 | 43.5 | 50 | 46 | 29.82 x 2.62 | |
| S | PN 160 | 30 | G 1.1/4”–11 | 50.0 | 20.0 | 75.0 | 35.5 | 37.0 | 50.5 | 60 | 50 | 37.77 x 2.62 | |
| S | PN 160 | 38 | G 1.1/2”–11 | 55.5 | 22.0 | 74.0 | 40.5 | 41.5 | 57.5 | 70 | 60 | 41.28 x 3.53 |
Series: LL = Very Light L = Light S = Heavy PN = Nominal pressure PB = Max. operating pressure Ø d2 = External pipe diameter Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
