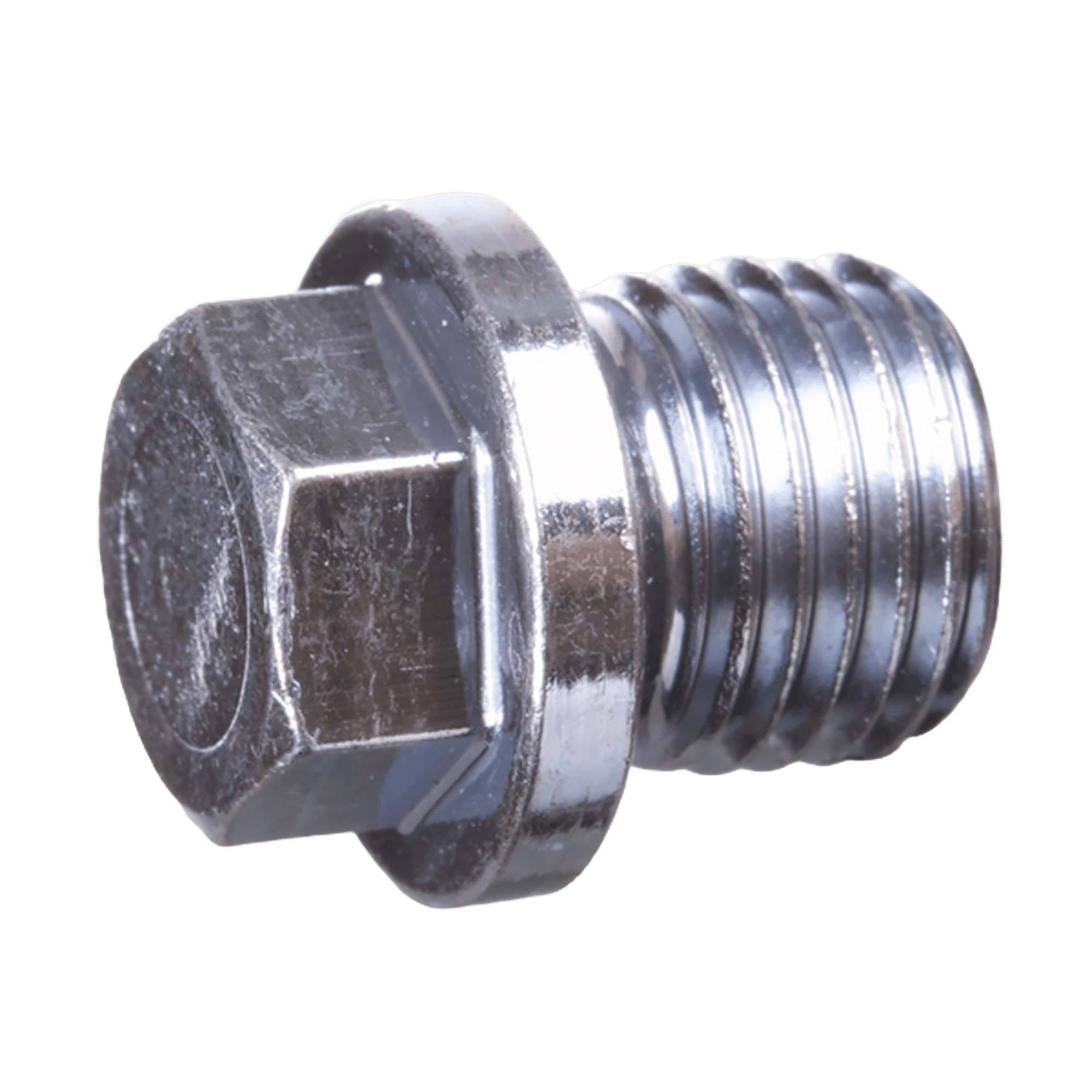

Blanking screw with hexagon head. Blanking screws, with hexagon socket. Straight. Metric cylindrical outer thread. Shape A. To DIN 910. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 14 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | i mm | D mm | L1 mm | L2 mm | SW mm |
|---|---|---|---|---|---|---|
| M 8 x 1 | 8 | 14 | 17 | 6 | 10 | |
| M 10 x 1 | 8 | 14 | 17 | 6 | 10 | |
| M 12 x 1.5 | 12 | 17 | 21 | 6 | 13 | |
| M 14 x 1.5 | 12 | 19 | 21 | 6 | 13 | |
| M 16 x 1.5 | 12 | 19 | 21 | 6 | 13 | |
| M 18 x 1.5 | 12 | 23 | 24 | 8 | 17 | |
| M 20 x 1.5 | 14 | 25 | 26 | 8 | 19 | |
| M 22 x 1.5 | 14 | 27 | 26 | 8 | 19 | |
| M 24 x 1.5 | 14 | 29 | 27 | 9 | 22 | |
| M 26 x 1.5 | 16 | 31 | 30 | 10 | 24 | |
| M 30 x 1.5 | 16 | 36 | 30 | 10 | 24 | |
| M 38 x 1.5 | 16 | 44 | 32 | 11 | 27 | |
| M 45 x 1.5 | 16 | 49 | 33 | 12 | 30 | |
| M 52 x 1.5 | 16 | 60 | 33 | 12 | 30 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
