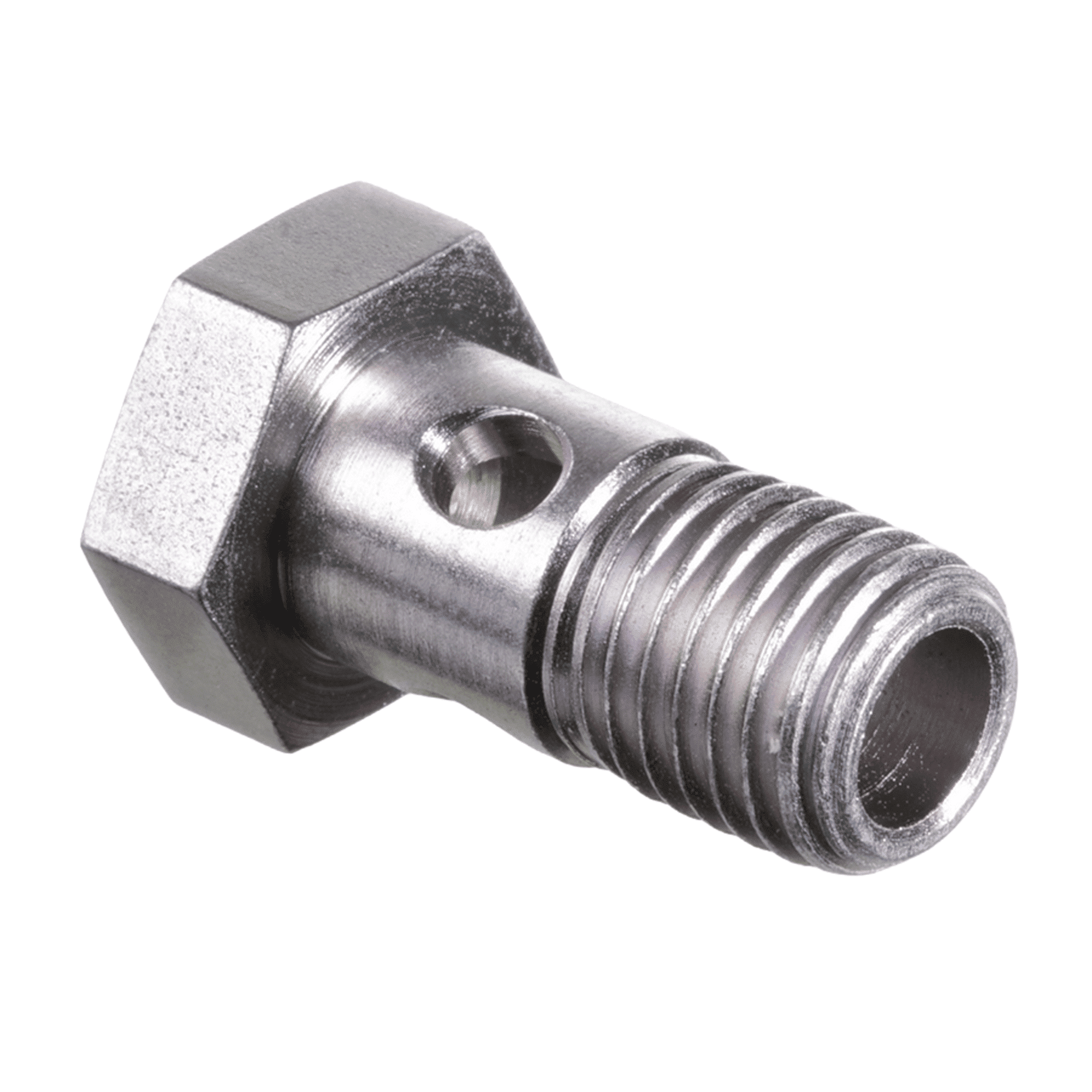

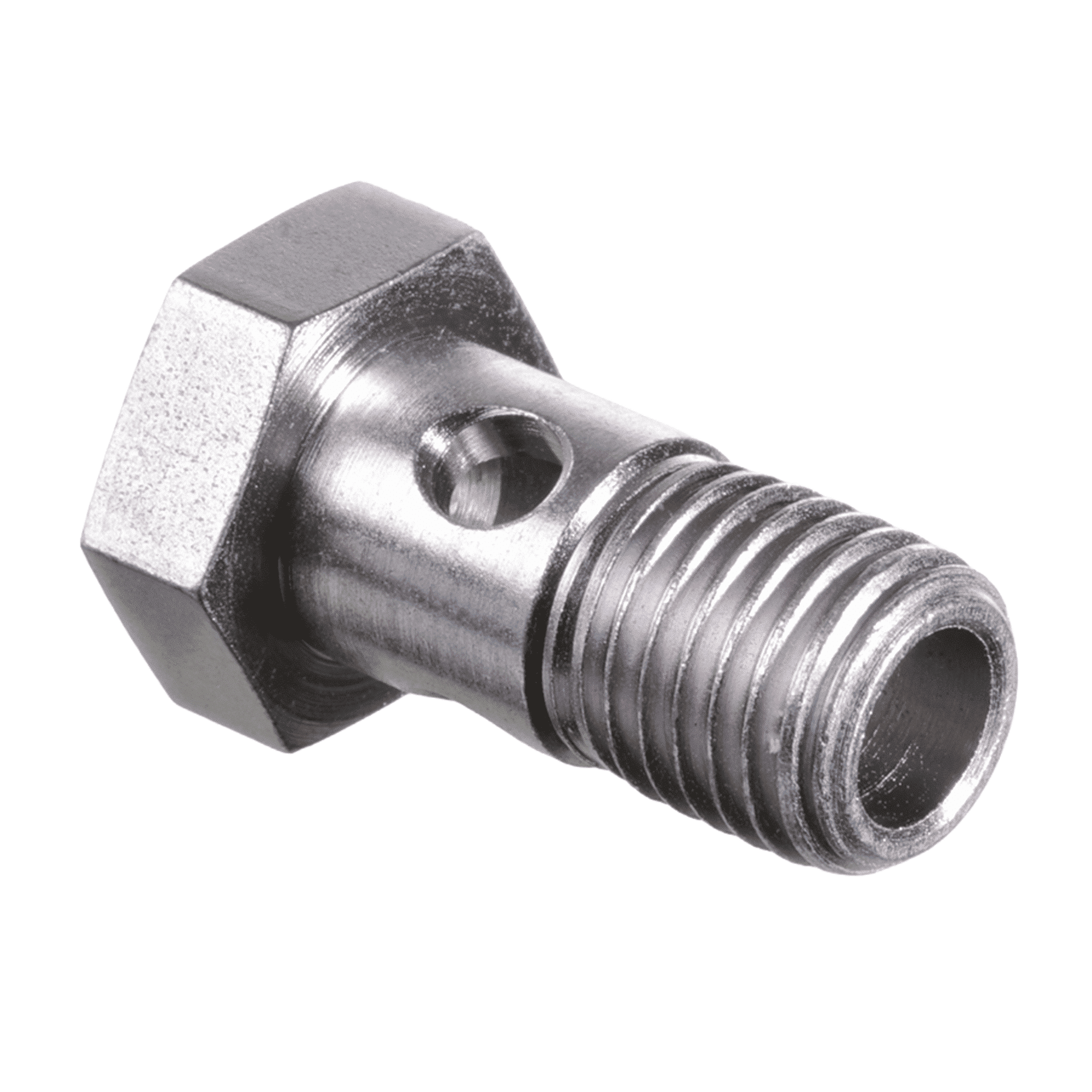

Hollow screw. Metric cylindrical outer thread. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 11 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | Ø d2 mm | L2 mm | m mm | S1 |
|---|---|---|---|---|---|
| M 6 x 1 | 6 | 17 | 4 | 11 | |
| M 8 x 1 | 8 | 17 | 5 | 12 | |
| M 10 x 1 | 10 | 19 | 6 | 14 | |
| M 12 x 1.5 | 12 | 24 | 6 | 17 | |
| M 14 x 1.5 | 14 | 26 | 6 | 19 | |
| M 16 x 1.5 | 16 | 28 | 6 | 22 | |
| M 18 x 1.5 | 18 | 32 | 6 | 24 | |
| M 22 x 1.5 | 22 | 39 | 7 | 27 | |
| M 26 x 1.5 | 26 | 45 | 7 | 32 | |
| M 30 x 1.5 | 30 | 51 | 7 | 36 | |
| M 38 x 1.5 | 38 | 61 | 8 | 46 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
