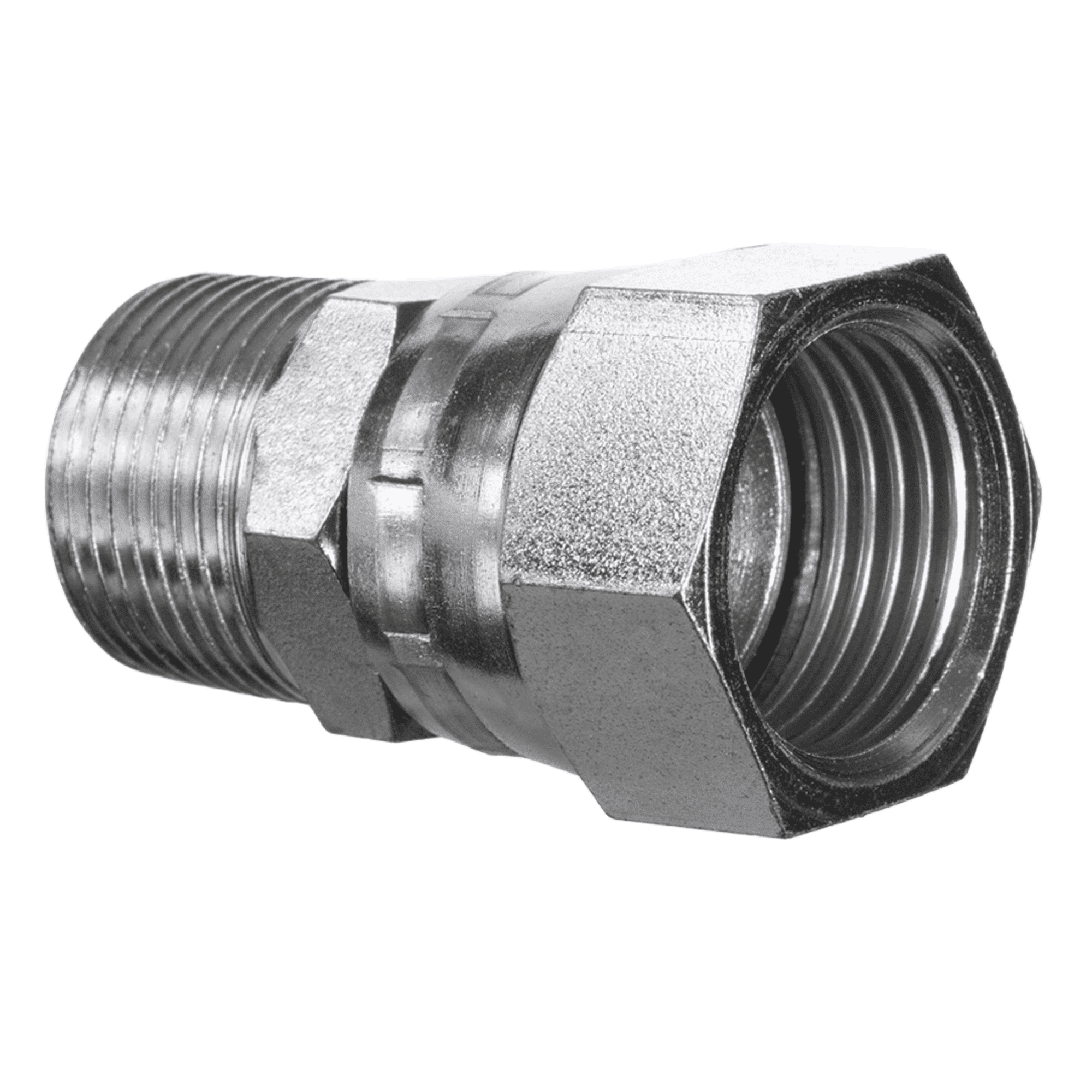

Screw-in sockets. Straight. BSPT conical external threads to uN / UNF nut threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 21 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|
| R 1/8”K | 7/16”-20 UNF | 13 | 16 | |
| R 1/8”K | 1/2”-20 UNF | 13 | 17 | |
| R 1/4”K | 7/16”-20 UNF | 14 | 16 | |
| R 1/4”K | 1/2”-20 UNF | 14 | 17 | |
| R 1/4”K | 9/16”-18 UNF | 14 | 19 | |
| R 1/4”K | 3/4”-16 UNF | 19 | 22 | |
| R 3/8”K | 1/2”-20 UNF | 19 | 17 | |
| R 3/8”K | 9/16”-18 UNF | 19 | 19 | |
| R 3/8”K | 3/4”-16 UNF | 19 | 22 | |
| R 3/8”K | 7/8”-14 UNF | 22 | 27 | |
| R 1/2”K | 3/4”-16 UNF | 27 | 32 | |
| R 1/2”K | 7/8”-14 UNF | 22 | 27 | |
| R 1/2”K | 1.1/16”–12 UN | 27 | 32 | |
| R 3/4”K | 7/8”-14 UNF | 27 | 27 | |
| R 3/4”K | 1.1/16”–12 UN | 27 | 32 | |
| R 3/4”K | 1.3/16”–12 UN | 27 | 32 | |
| R 3/4”K | 1.5/16”–12 UN | 32 | 38 | |
| R 1”K | 1.1/16”–12 UN | 36 | 38 | |
| R 1”K | 1.5/16”–12 UN | 36 | 38 | |
| R 1.1/4”K | 1.5/8”–12 UN | 46 | 50 | |
| R 1.1/2”K | 1.7/8”–12 UN | 54 | 55 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
