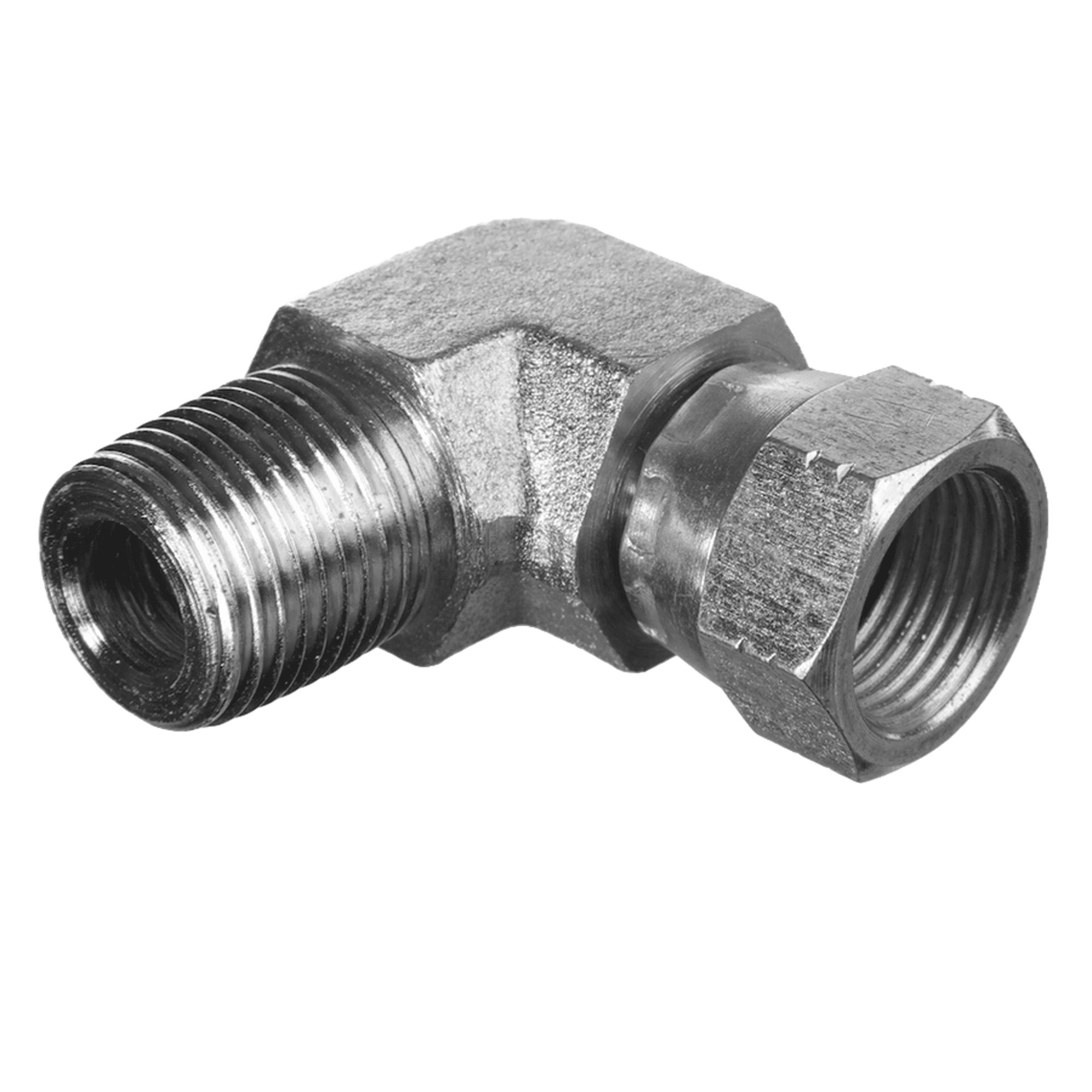

Screw-in socket, angle 90°. Screw-in sockets. BSPT conical external threads to uN / UNF external threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | S2 |
|---|---|---|---|---|---|
| R 1/4”K | 7/16”-20 UNF | 14 | 16 | 18 | |
| R 3/8”K | 9/16”-18 UNF | 19 | 19 | 22 | |
| R 1/2”K | 3/4”-16 UNF | 22 | 22 | 32 | |
| R 1/2”K | 7/8”-14 UNF | 22 | 27 | 25 | |
| R 3/4”K | 1.1/16”–12 UN | 27 | 32 | 21 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
