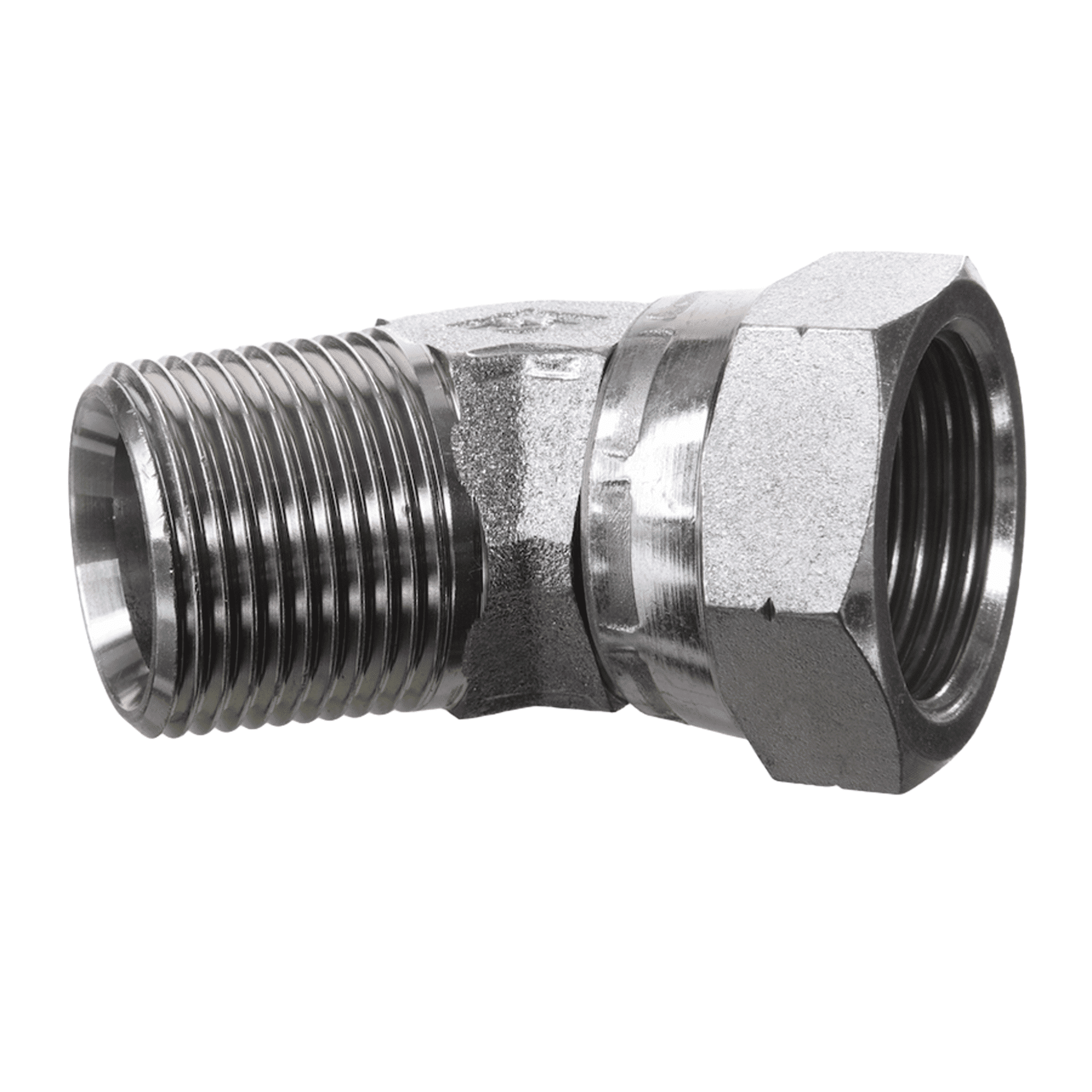

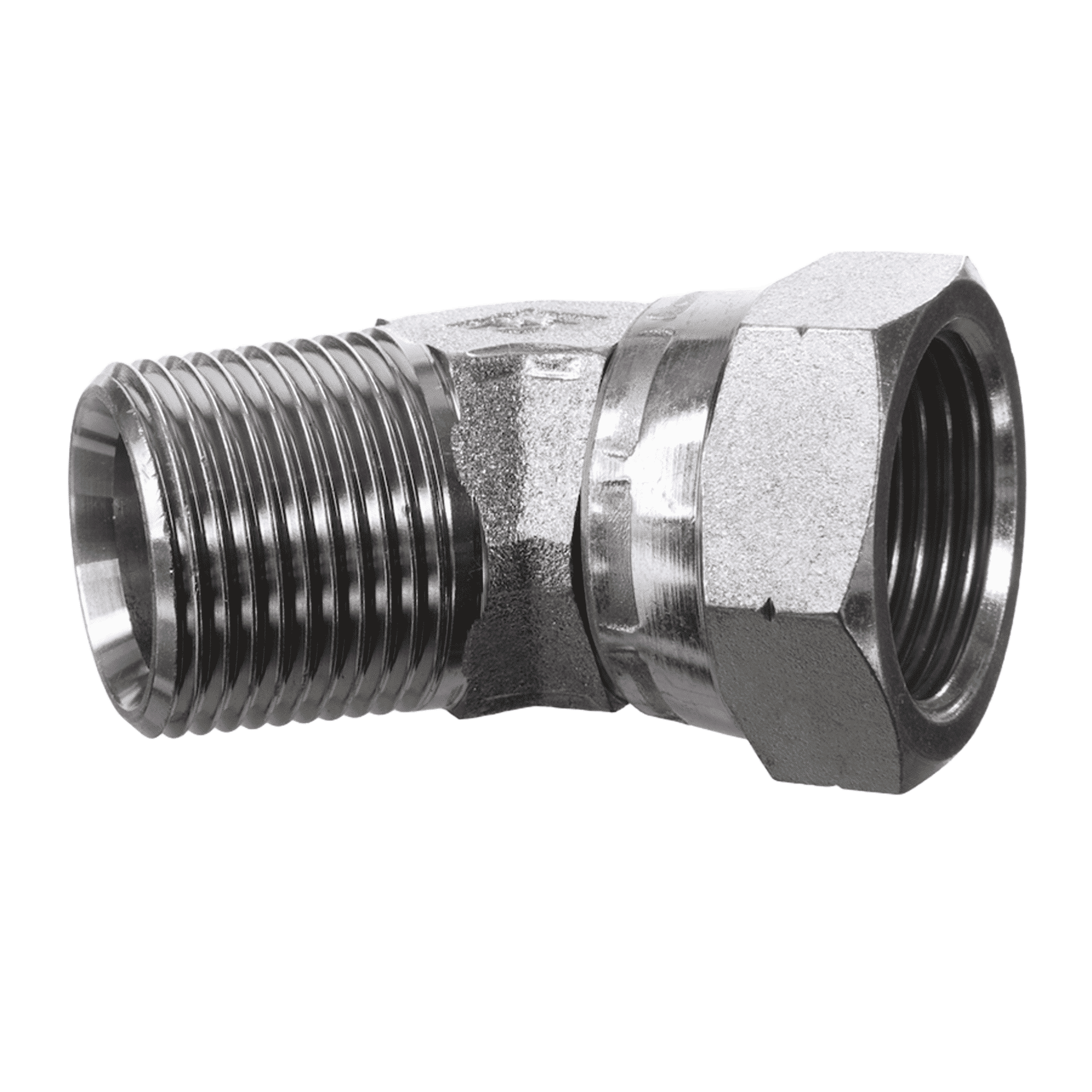

JIC Swivel Female / BSPT Male 45 – Screw-in socket, angle 45°. Part of the Motus Hydraulic Adaptors range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
JIC Swivel Female / BSPT Male 45 is part of the Motus Hydraulic Adaptors range. Screw-in socket, angle 45°.
| Connection 1 | BSPT conical external threads |
| Sealing form 1 | Thread seal |
| Connection 2 | UN / UNF external threads |
| Sealing form 2 | 74° inner cone |
| Design | Screw-in sockets |
| Construction | Angle 45° |
| Material | Steel |
| Surface | MotusCoat™ |
Catalogue page: 320
JIC Swivel Female / BSPT Male 45 – Screw-in socket, angle 45°. Part of the Motus Hydraulic Adaptors range.
Confirm both connection thread types and sizes, sealing form, fitting configuration and system pressure before ordering.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
