Hydraulic Adaptors

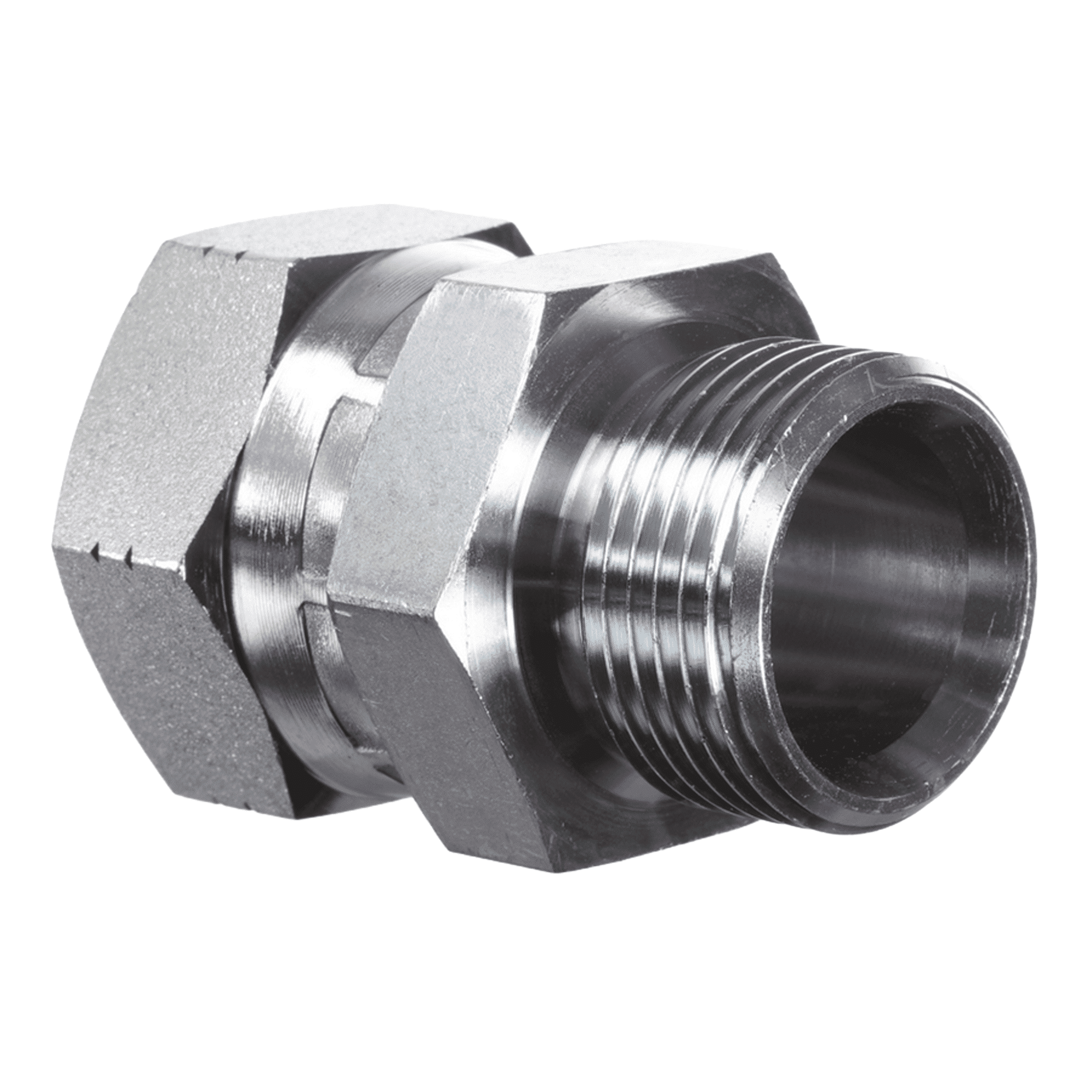

JIC Swivel Female / BSPP Male

Screw-in sockets

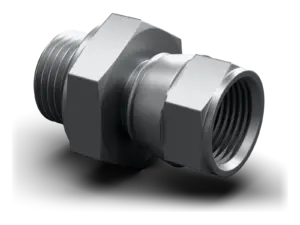

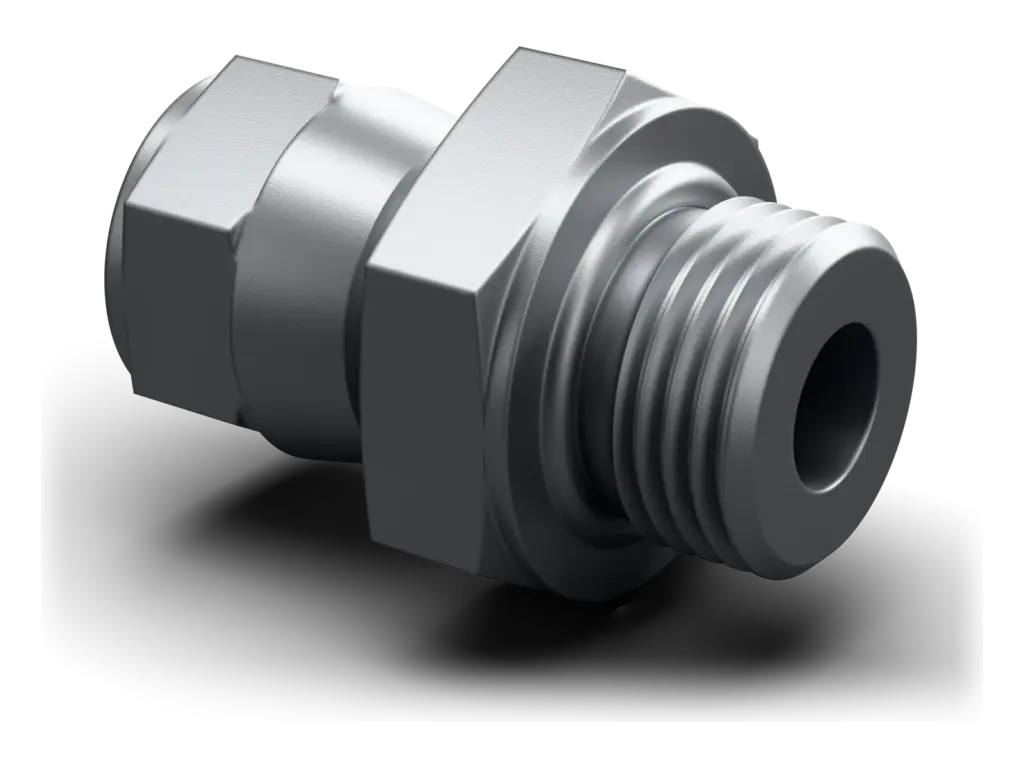

JIC Swivel Female / BSPP Male – Screw-in sockets

Screw-in sockets. Straight. BSP external thread, cylindrical to uN / UNF nut threads. Thread socket with O-ring + spacer diaphragm ring one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 25 sizes, each with its own part number.

25sizes
BPM-JIF-0204-MC to BPM-JIF-2424-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationWorking pressure barG1G2SW mmS1OR
PN 315G 1/8”–287/16”-20 UNF16147.97 x 1.88
PN 315G 1/8”–281/2”-20 UNF16177.97 x 1.88
PN 315G 1/4”–197/16”-20 UNF191410.77 x 2.62
PN 315G 1/4”–191/2”-20 UNF191710.77 x 2.62
PN 250G 1/4”–199/16”-18 UNF191910.77 x 2.62
PN 250G 1/4”–193/4”-16 UNF192210.77 x 2.62
PN 315G 3/8”–197/16”-20 UNF221413.94 x 2.62
PN 315G 3/8”–191/2”-20 UNF221713.94 x 2.62
PN 250G 3/8”–199/16”-18 UNF221913.94 x 2.62
PN 250G 3/8”–193/4”-16 UNF222213.94 x 2.62
PN 200G 3/8”–197/8”-14 UNF222713.94 x 2.62
PN 250G 1/2”–149/16”-18 UNF301917.86 x 2.62
PN 250G 1/2”–143/4”-16 UNF302217.86 x 2.62
PN 200G 1/2”–147/8”-14 UNF302717.86 x 2.62
PN 200G 1/2”–141.1/16”–12 UN303217.86 x 2.62
PN 200G 3/4”–147/8”-14 UNF362723.47 x 2.62
PN 200G 3/4”–141.1/16”–12 UN363223.47 x 2.62
PN 160G 3/4”–141.5/16”–12 UN364123.47 x 2.62
PN 200G 1”–111.1/16”–12 UN463229.74 x 3.53
PN 160G 1”–111.5/16”–12 UN464129.74 x 3.53
PN 125G 1”–111.5/8”–12 UN465029.74 x 3.53
PN 160G 1.1/4”–111.5/16”–12 UN504137.69 x 3.53
PN 125G 1.1/4”–111.5/8”–12 UN505037.69 x 3.53
PN 100G 1.1/4”–111.7/8”–12 UN506037.69 x 3.53
PN 100G 1.1/2”–111.7/8”–12 UN556044.04 x 3.53

SW, S1, S2 = Width across flats

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
Thread socket with O-ring + spacer diaphragm ring
Connection 2
UN / UNF nut threads
Sealing form 2
74° outer cone
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

JIC Swivel Female / BSPP Male – Screw-in sockets data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
