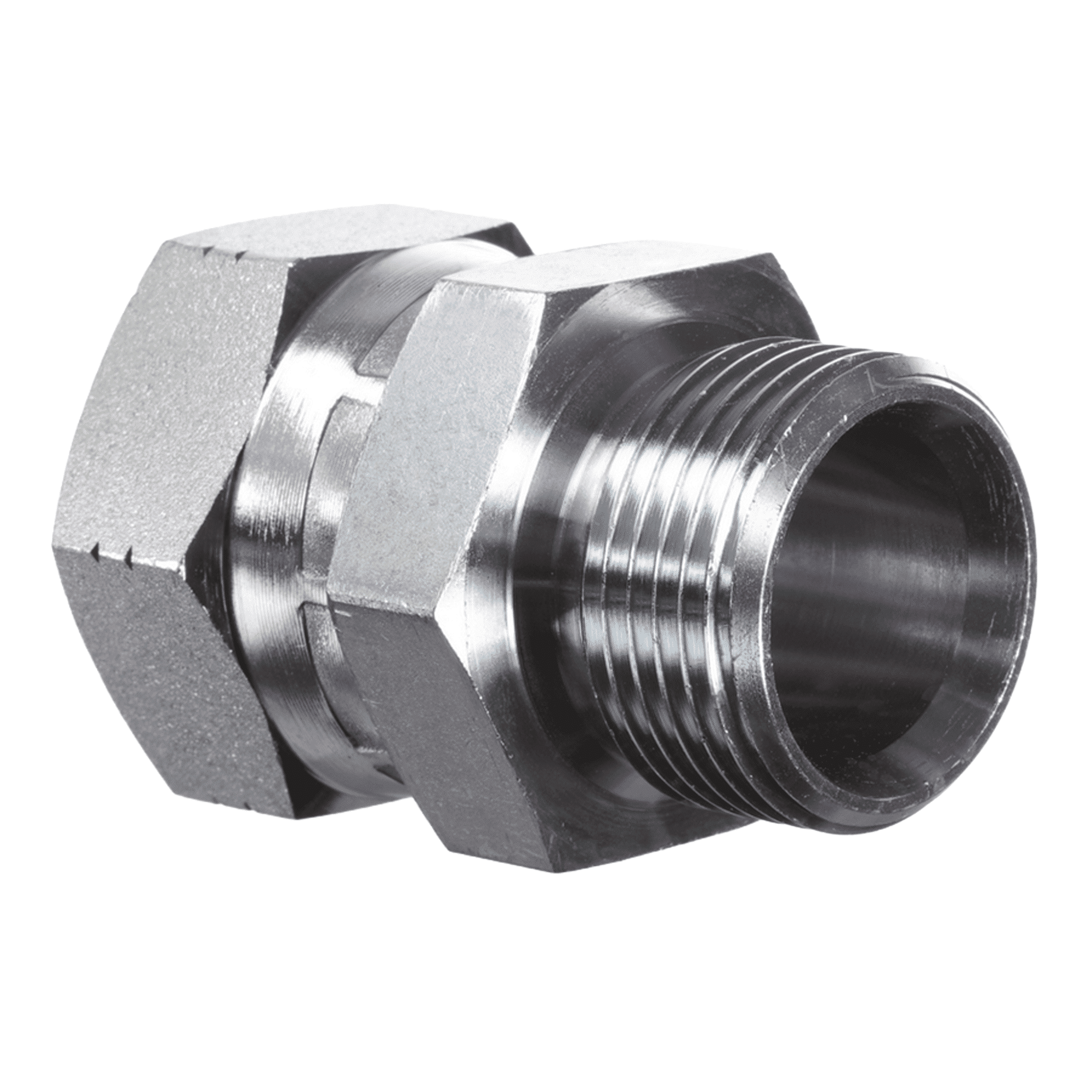

Connectors. Straight. UN / UNF nut threads to bSP cylindrical external threads. 74° inner cone one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 24 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 |
|---|---|---|---|---|
| 7/16”-20 UNF | G 1/8”-28 | 14 | 17 | |
| 7/16”-20 UNF | G 1/4”-19 | 19 | 17 | |
| 7/16”-20 UNF | G 3/8”-19 | 22 | 17 | |
| 7/16”-20 UNF | G 1/2”-14 | 27 | 17 | |
| 1/2”-20 UNF | G 1/4”-19 | 19 | 17 | |
| 9/16”-18 UNF | G 1/4”-19 | 19 | 19 | |
| 9/16”-18 UNF | G 3/8”-19 | 22 | 19 | |
| 9/16”-18 UNF | G 1/2”-14 | 27 | 19 | |
| 3/4”-16 UNF | G 1/4”-19 | 19 | 24 | |
| 3/4”-16 UNF | G 3/8”-19 | 22 | 24 | |
| 3/4”-16 UNF | G 1/2”-14 | 27 | 24 | |
| 3/4”-16 UNF | G 3/4”-14 | 32 | 24 | |
| 7/8”-14 UNF | G 3/8”-19 | 22 | 27 | |
| 7/8”-14 UNF | G 1/2”-14 | 27 | 27 | |
| 7/8”-14 UNF | G 5/8”-14 | 30 | 27 | |
| 7/8”-14 UNF | G 3/4”-14 | 32 | 27 | |
| 1.1/16”-12 UN | G 1/2”-14 | 27 | 32 | |
| 1.1/16”-12 UN | G 3/4”-14 | 32 | 32 | |
| 1.1/16”-12 UN | G 1"-11 | 41 | 32 | |
| 1.5/16”-12 UN | G 3/4”-14 | 32 | 41 | |
| 1.5/16”-12 UN | G 1"-11 | 41 | 41 | |
| 1.5/8”-12 UN | G 1.1/4”-11 | 50 | 50 | |
| 1.7/8”-12 UN | G 1.1/2”-11 | 55 | 55 | |
| 2.1/2”-12 UN | G 2"-11 | 70 | 70 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
