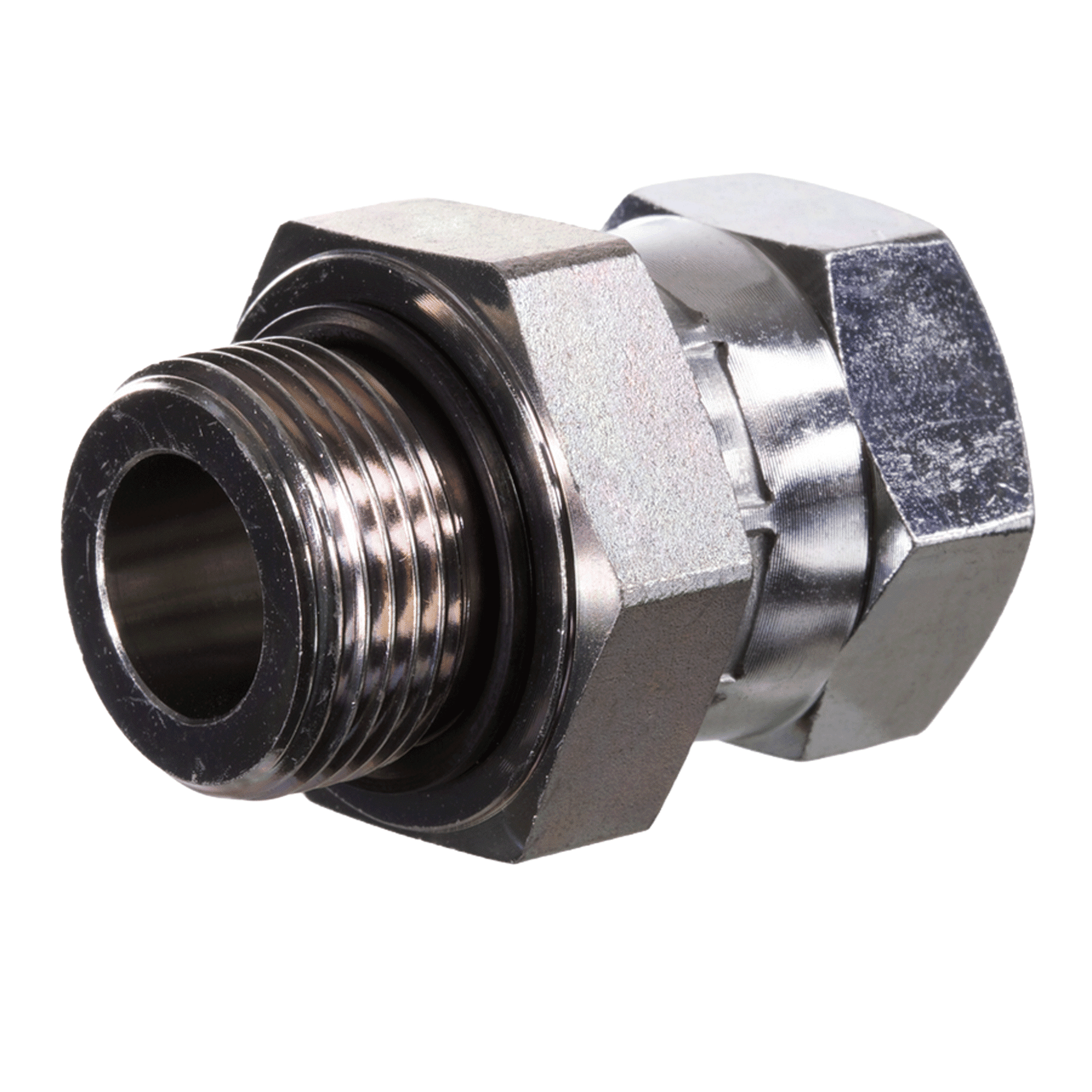

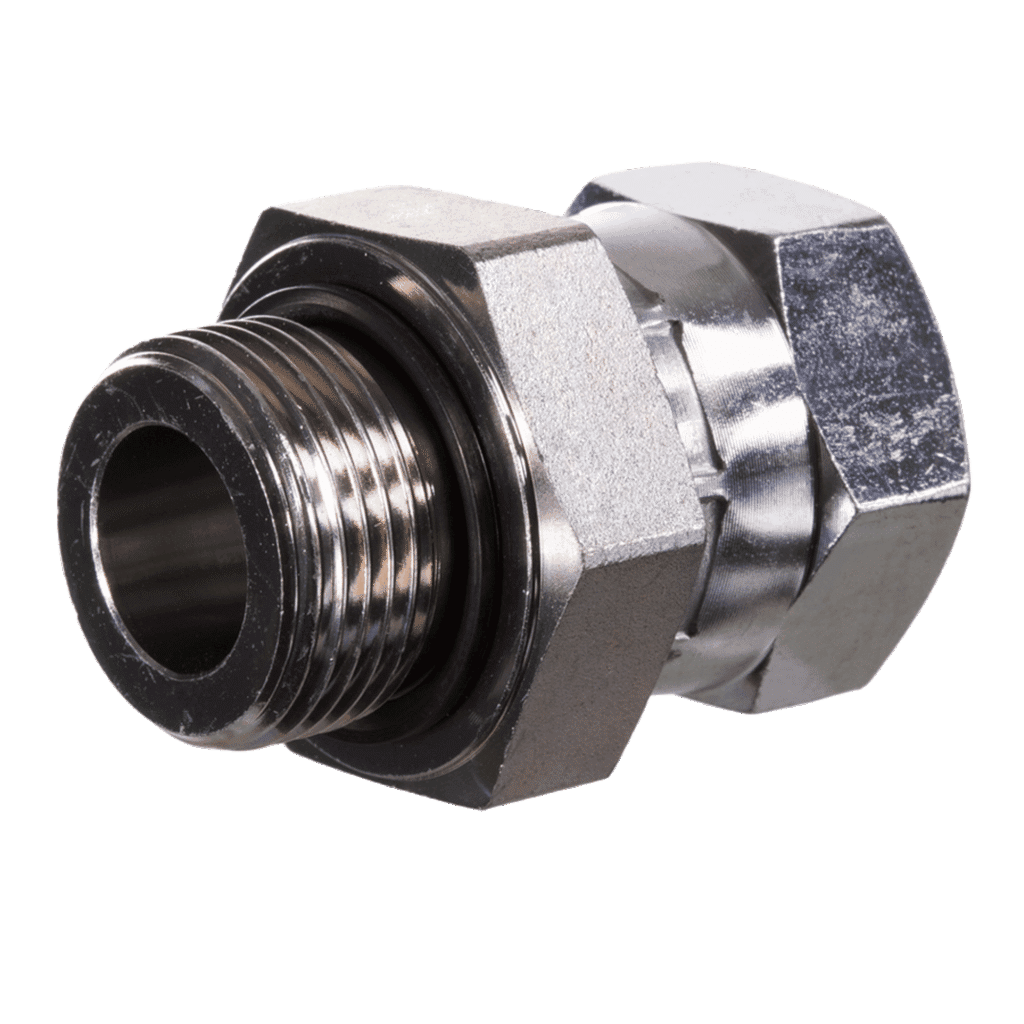

Screw-in sockets. Straight. BSP external thread, cylindrical to uN / UNF external threads. Shape E one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 17 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW | S1 |
|---|---|---|---|---|
| G 1/8”-28 | 7/16”-20 UNF | 14 | 14 | |
| G 1/8”-28 | 1/2”-20 UNF | 14 | 17 | |
| G 1/4”-19 | 1/2”-20 UNF | 19 | 17 | |
| G 1/4”-19 | 9/16”-18 UNF | 19 | 19 | |
| G 1/4”-19 | 3/4”-16 UNF | 19 | 22 | |
| G 3/8”-19 | 9/16”-18 UNF | 22 | 19 | |
| G 3/8”-19 | 3/4”-16 UNF | 22 | 22 | |
| G 3/8”-19 | 7/8”-14 UNF | 27 | 27 | |
| G 1/2”-14 | 7/8”-14 UNF | 27 | 27 | |
| G 1/2”-14 | 1.1/16”-12 UN | 27 | 32 | |
| G 3/4”-14 | 1.1/16”-12 UN | 32 | 32 | |
| G 3/4”-14 | 1.5/16”-12 UN | 32 | 41 | |
| G 1”-11 | 1.5/16”-12 UN | 41 | 41 | |
| G 1”-11 | 1.5/8”-12 UN | 41 | 50 | |
| G 1.1/4”-11 | 1.5/8”-12 UN | 50 | 50 | |
| G 1.1/4”-11 | 1.7/8”-12 UN | 50 | 60 | |
| G 1.1/2”-11 | 1.7/8”-12 UN | 55 | 60 |
SW, S1, S2 = Width across flats Product Version: Stainless Steel (SS) Spare Parts: WD Soft Seal for ED Fittings
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
