JIC Swivel Female (Breaker Operation)

Name: JIC Swivel Female (Breaker Operation) – Swage fitting, DKJ
Brand: Motus Hydraulics
SKU: JIC-SWIVEL-FEMALE-126

Swage fitting, DKJ

Swage fitting, DKJ. For swage fitting for MH800 hose. UN / UNF nut threads. 74° inner cone. To ISO 8434-2 DN. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 3 sizes, each with its own part number.

3sizes
STMI7-JIF-1212-BO-MC to STMI7-JIF-1620-BO-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

StandardISO 8434-2 DN

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Identification	DN	Size	Inches	G1	L1 mm	S1
STMI7-JIF-1212-BO-MC	19	12	3/4”	1.1/16”–12 UN	91.5	32
STMI7-JIF-1616-BO-MC	25	16	1”	1.5/16”–12 UN	98.2	41
STMI7-JIF-1620-BO-MC	25	16	1”	1.5/8”–12 UN	111.0	50

326

The details

Application: Swage fitting for MH800 hose
Connection 1: UN / UNF nut threads
Sealing form 1: 74° inner cone
Short code: DKJ
Standard: ISO 8434-2 DN
Integration: With pull-out protection (interlock)

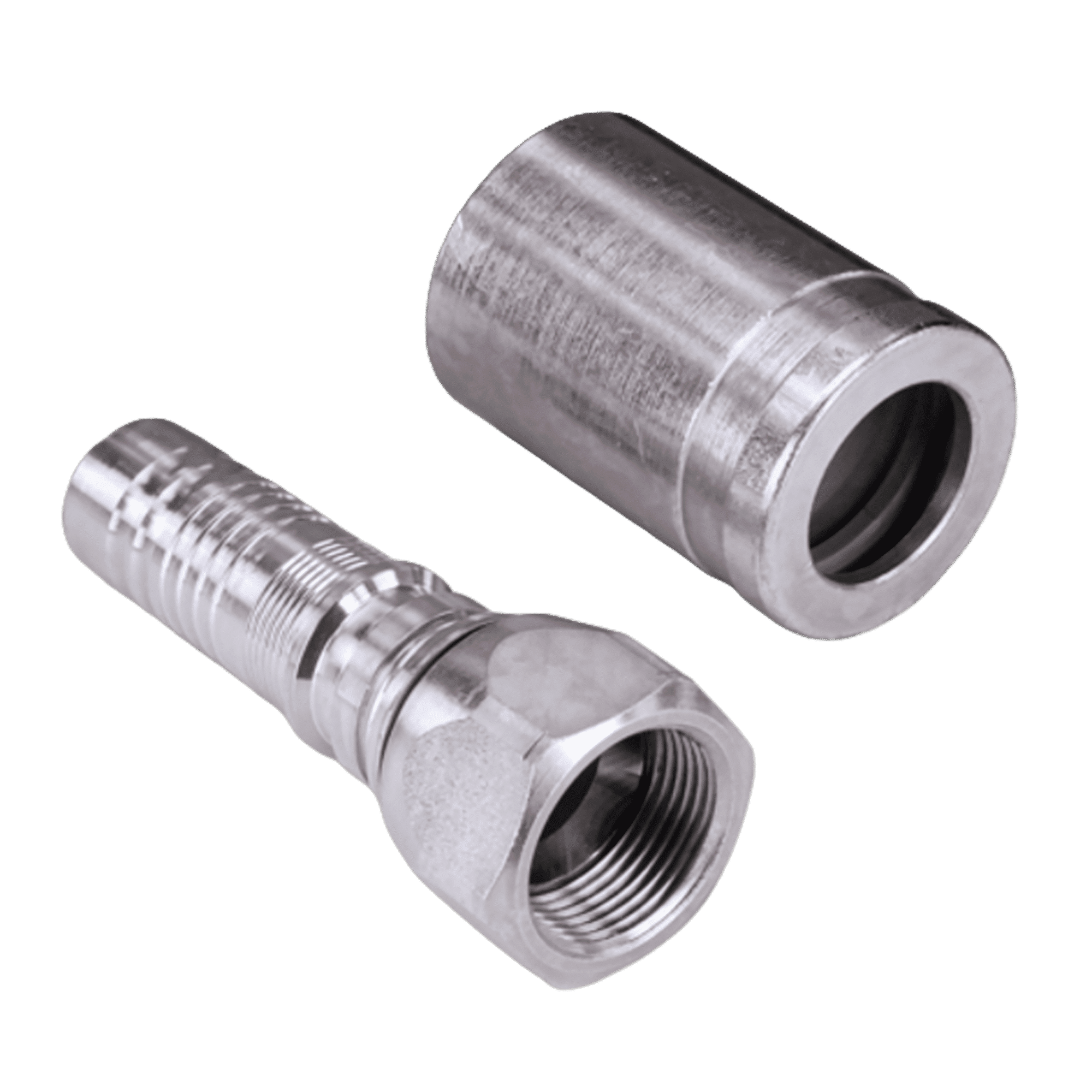

Included in scope of supply: Swage nipple + swage ferrule
Additional feature: For breaker operation
Material: Steel
Surface: MotusCoat™
Description: Reinforced design for extreme loads, e.g. use in hammers.

Downloads

JIC Swivel Female (Breaker Operation) – Swage fitting, DKJ data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
