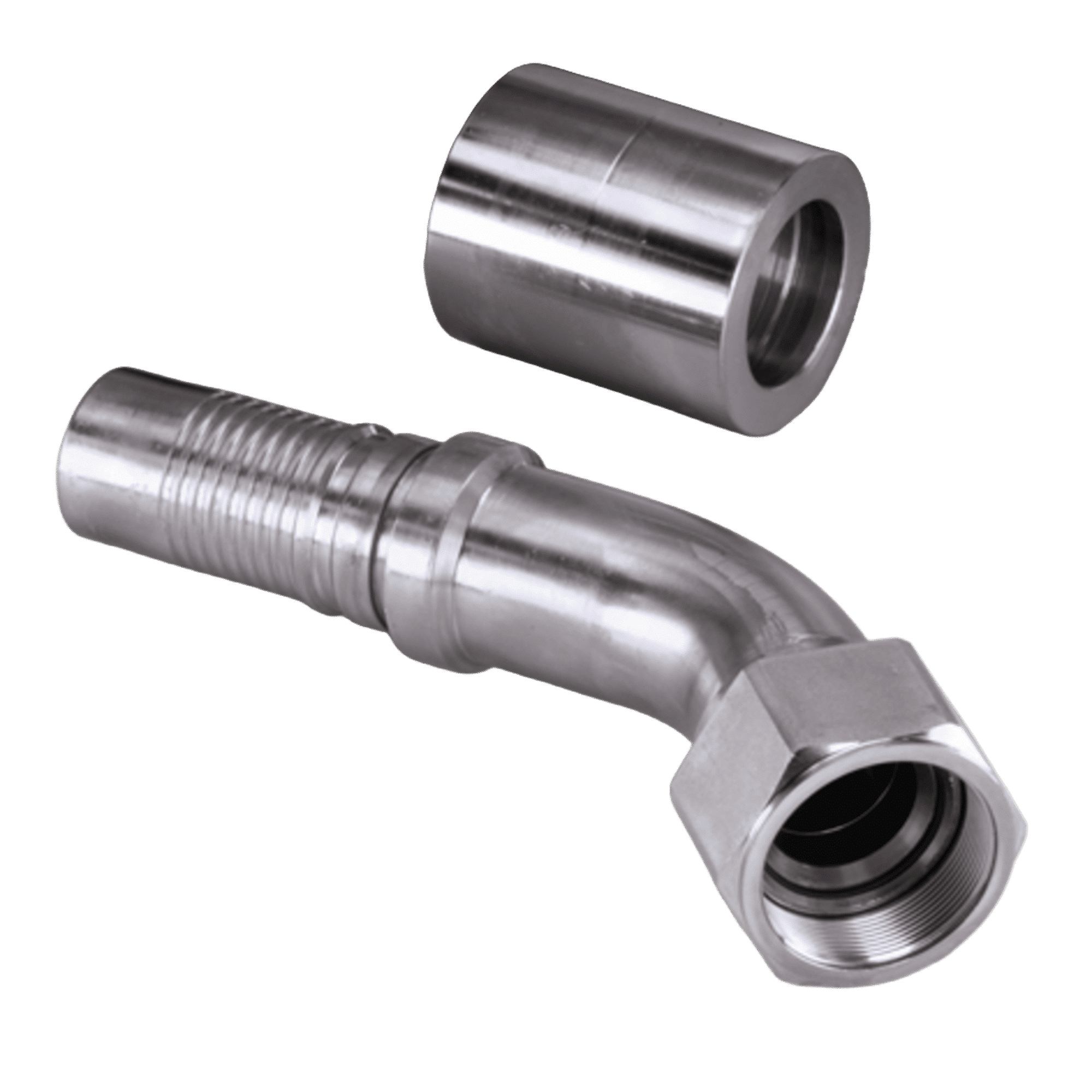

For swage fitting for HD 500 hoses. UN / UNF nut threads. 74° inner cone with O-ring. To ISO 8434-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 | OR |
|---|---|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 140.0 | 34.5 | 32 | 19.00 x 1.50 | |
| 25 | 16 | 1” | 1.5/16”–12 UN | 169.5 | 39.0 | 41 | 25.00 x 1.50 | |
| 31 | 20 | 1.1/4” | 1.5/8”–12 UN | 199.0 | 49.5 | 50 | 31.47 x 1.78 | |
| 38 | 24 | 1.1/2” | 1.7/8”–12 UN | 233.0 | 58.0 | 55 | 37.82 x 1.78 | |
| 51 | 32 | 2” | 2.1/2”–12 UN | 275.0 | 64.0 | 75 | 50.00 x 2.00 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
