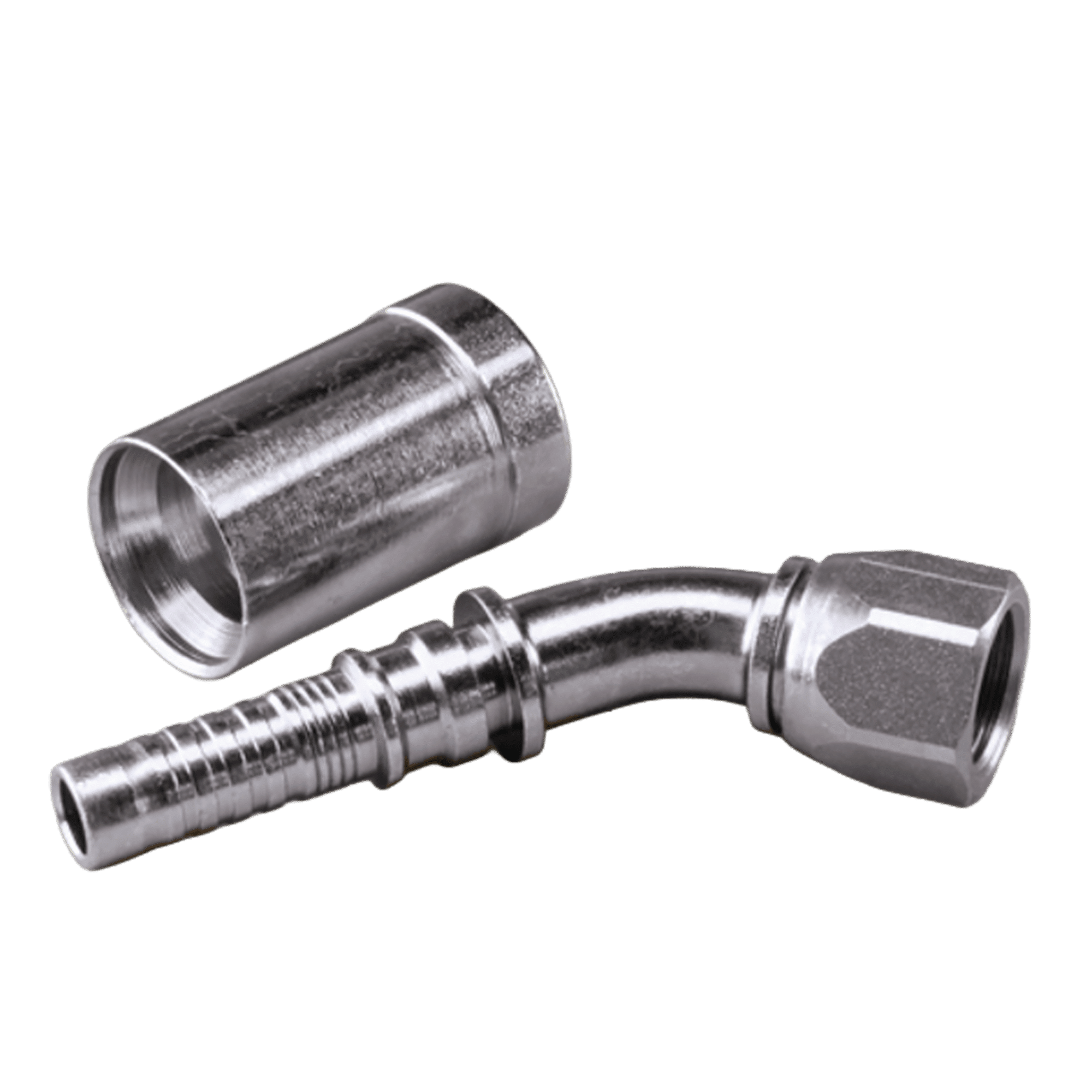

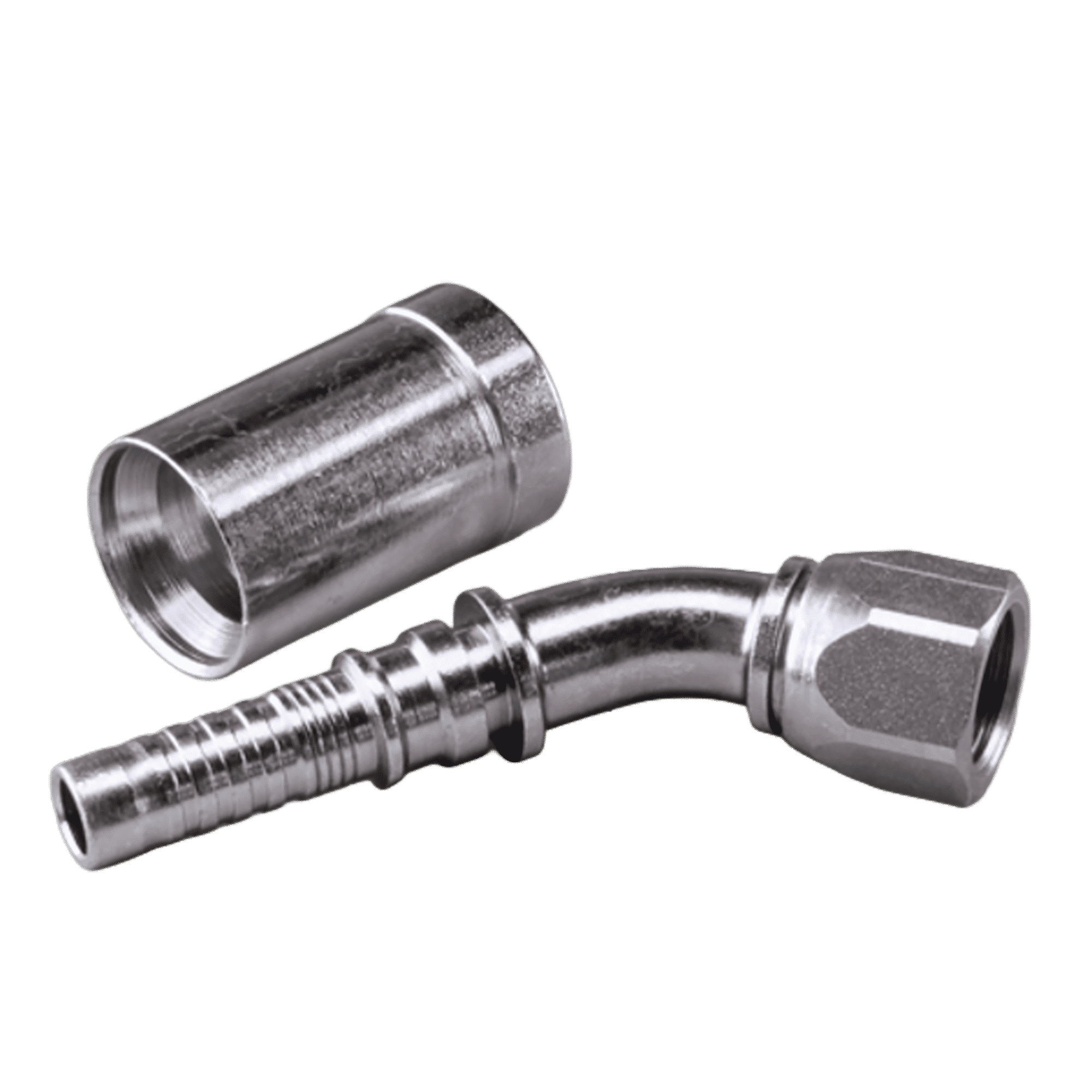

Swage fitting, DKJ angle 45°. For swage fitting for MH800 hose. UN / UNF nut threads. 74° inner cone (JIC). To ISO 8434-2 / SAE J514. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 4 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN mm | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 12 | 8 | 1/2” | 3/4”-16 UNF | 92.8 | 21.5 | 24 | |
| 12 | 8 | 5/8” | 7/8”-14 UNF | 92.8 | 20.0 | 25 | |
| 16 | 10 | 5/8” | 7/8”-14 UNF | 116.5 | 25.0 | 25 | |
| 16 | 10 | 5/8” | 1.1/16”-12 UN | 114.0 | 23.5 | 32 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
