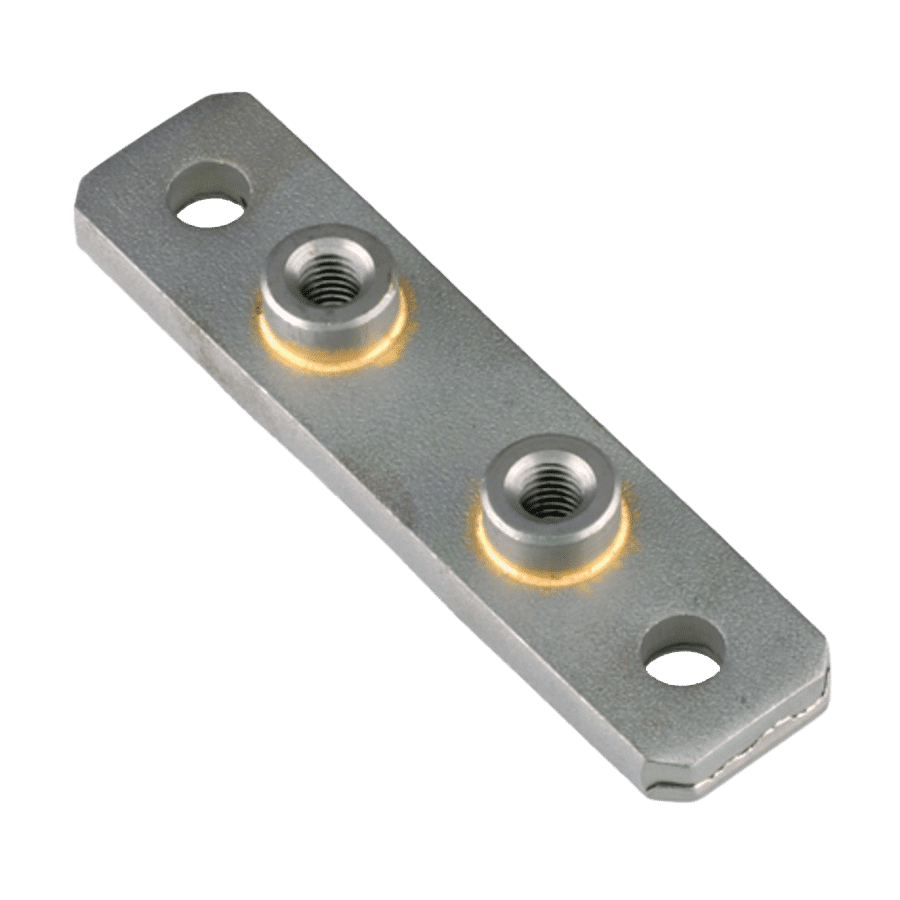

Welded on and screw-on base plate, long. For single pipe clamps. Heavy series. To DIN 3015-2. Phosphate treated surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | B mm | c mm | e1 mm | e2 mm | G | L mm | S mm |
|---|---|---|---|---|---|---|---|---|
| 1 | 30 | 11 | 33 | 85 | M 10 | 113 | 8 | |
| 2 | 30 | 11 | 45 | 97 | M 10 | 125 | 8 | |
| 3 | 30 | 11 | 60 | 112 | M 10 | 140 | 8 | |
| 4 | 45 | 14 | 90 | 160 | M 12 | 190 | 10 | |
| 5 | 60 | 18 | 122 | 205 | M 16 | 240 | 10 | |
| 6 | 80 | 22 | 168 | 270 | M 20 | 310 | 15 | |
| 7 | 90 | 26 | 205 | 320 | M 24 | 370 | 15 | |
| 8 | 120 | 33 | 265 | 390 | M 30 | 450 | 25 |
Additional element for following products: C - Configuration of group C
