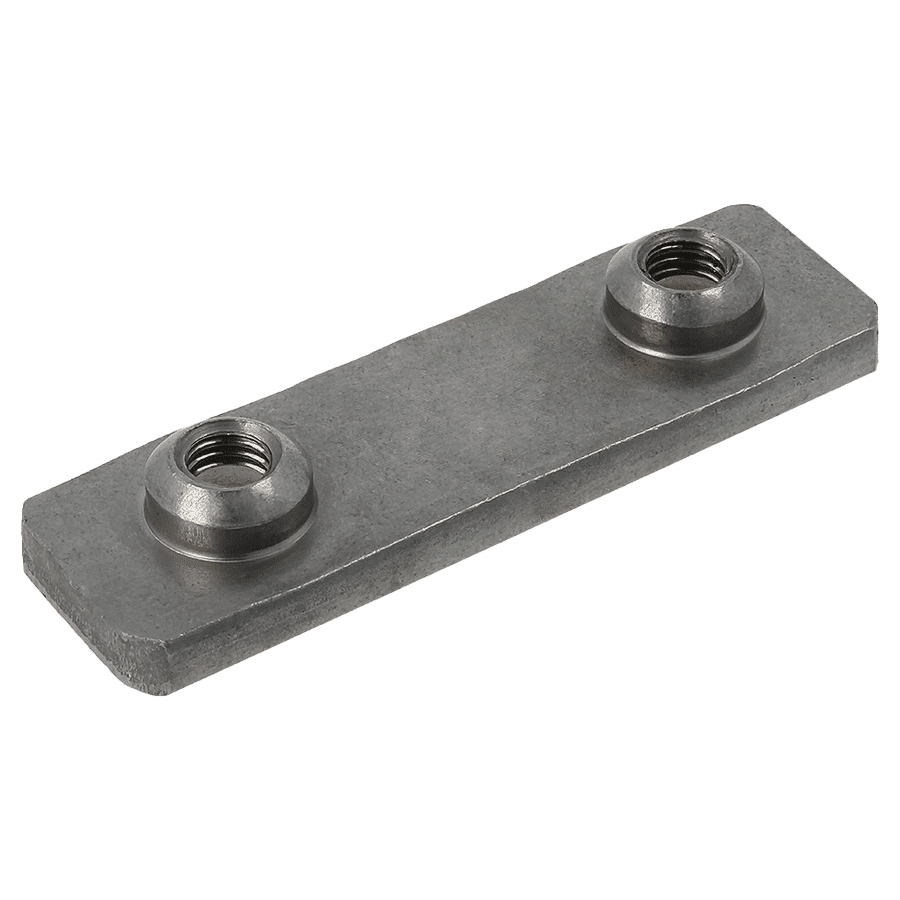

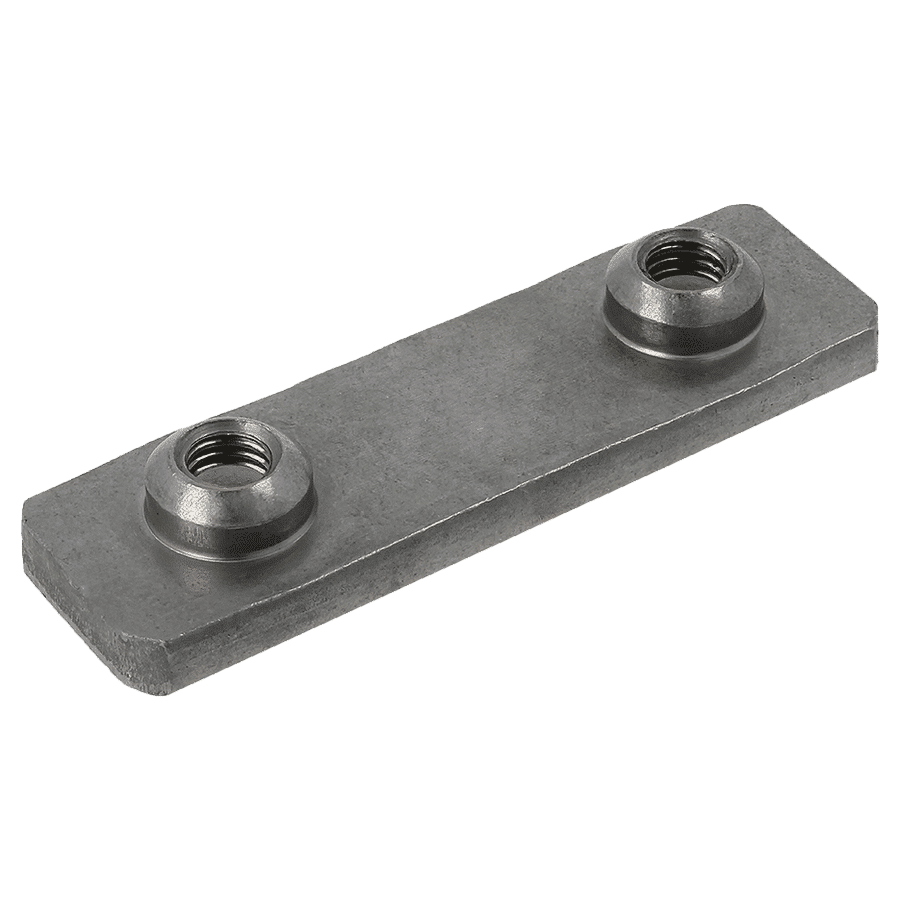

Welded on base plate for single pipe clamp. For single pipe clamps. Heavy series. To DIN 3015-2. Phosphate treated surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | B mm | e1 mm | G | L mm | S mm |
|---|---|---|---|---|---|---|
| 1 | 30 | 33 | M 10 | 73 | 8 | |
| 2 | 30 | 45 | M 10 | 84 | 8 | |
| 3 | 30 | 60 | M 10 | 100 | 8 | |
| 4 | 45 | 90 | M 12 | 140 | 10 | |
| 5 | 60 | 122 | M 16 | 180 | 10 | |
| 6 | 80 | 168 | M 20 | 225 | 15 | |
| 7 | 90 | 205 | M 24 | 270 | 15 | |
| 8 | 120 | 265 | M 30 | 340 | 25 |
Product Versions: HDSPC BP 30-100 V4 - Welded on base plate for single pipe clamp, Stainless steel 1.4571 HDSPC BP 30-100 VZ - Welded on base plate for single pipe clamp, Steel, Electro galvanised
Additional element for following products: C - Configuration of group C
