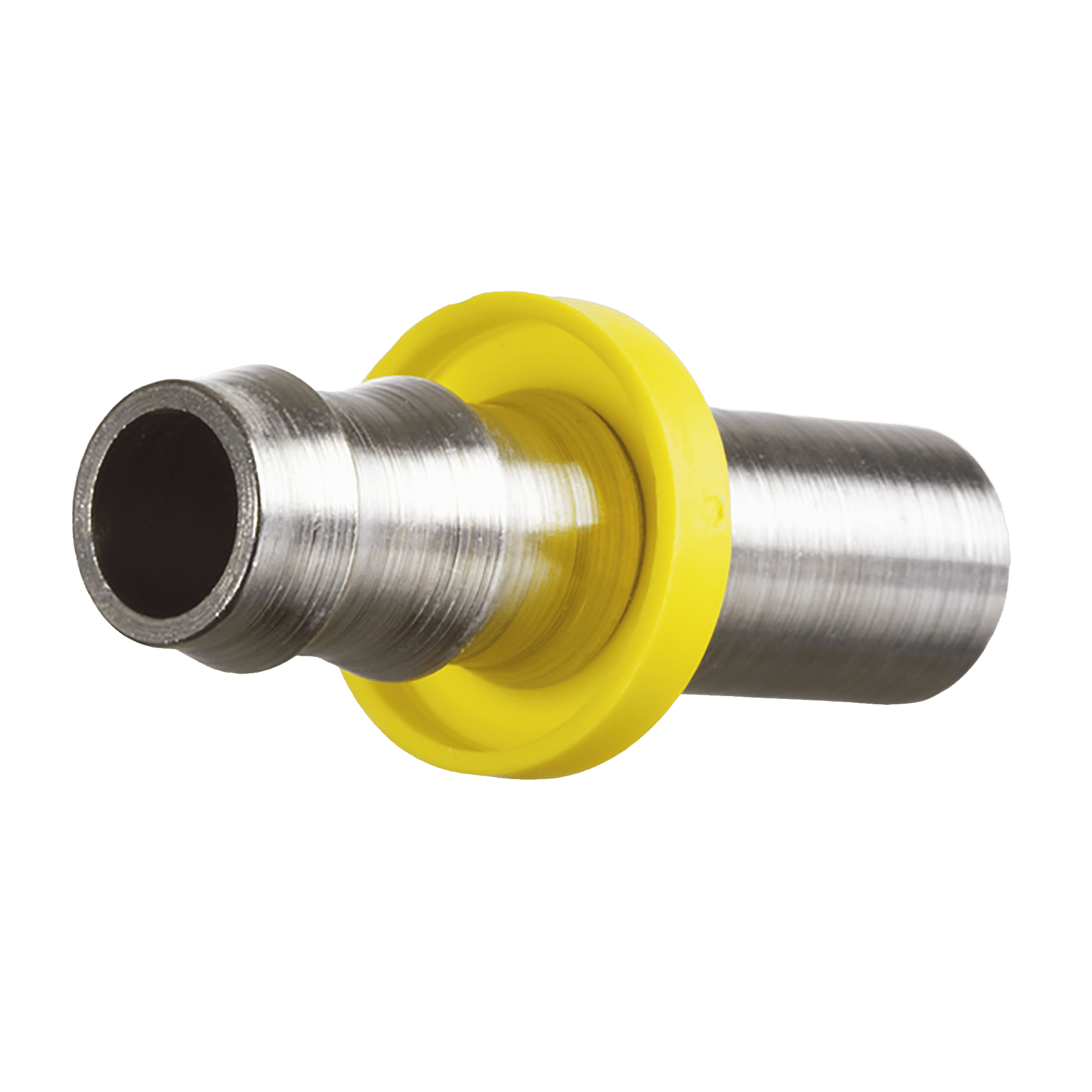

EASYLOCK – Metric Standpipe – Plug-in nipple, BEL / BES. Part of the Motus Ferrules & Swage Nipples range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
EASYLOCK – Metric Standpipe is part of the Motus Ferrules & Swage Nipples range. Plug-in nipple, BEL / BES.
| Connection 1 | Pipe sockets |
| Sealing form 1 | Cutting ring connection |
| Short code | BEL / BES |
| Standard | ISO 8434-1 |
| Series | D2 mm |
| Material | Steel |
| Surface | MotusCoat™ |
| Note | Undamaged nipples may be reused. Final cutting ring assembly must be done in the hardened pre-assembly socket (VOM…). Not for new designs; use ND…AOL for ND…FL. |
Catalogue page: 147
EASYLOCK – Metric Standpipe – Plug-in nipple, BEL / BES. Part of the Motus Ferrules & Swage Nipples range.
Match the hose series and size, fitting style and swage specification to the hose assembly you are building.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
