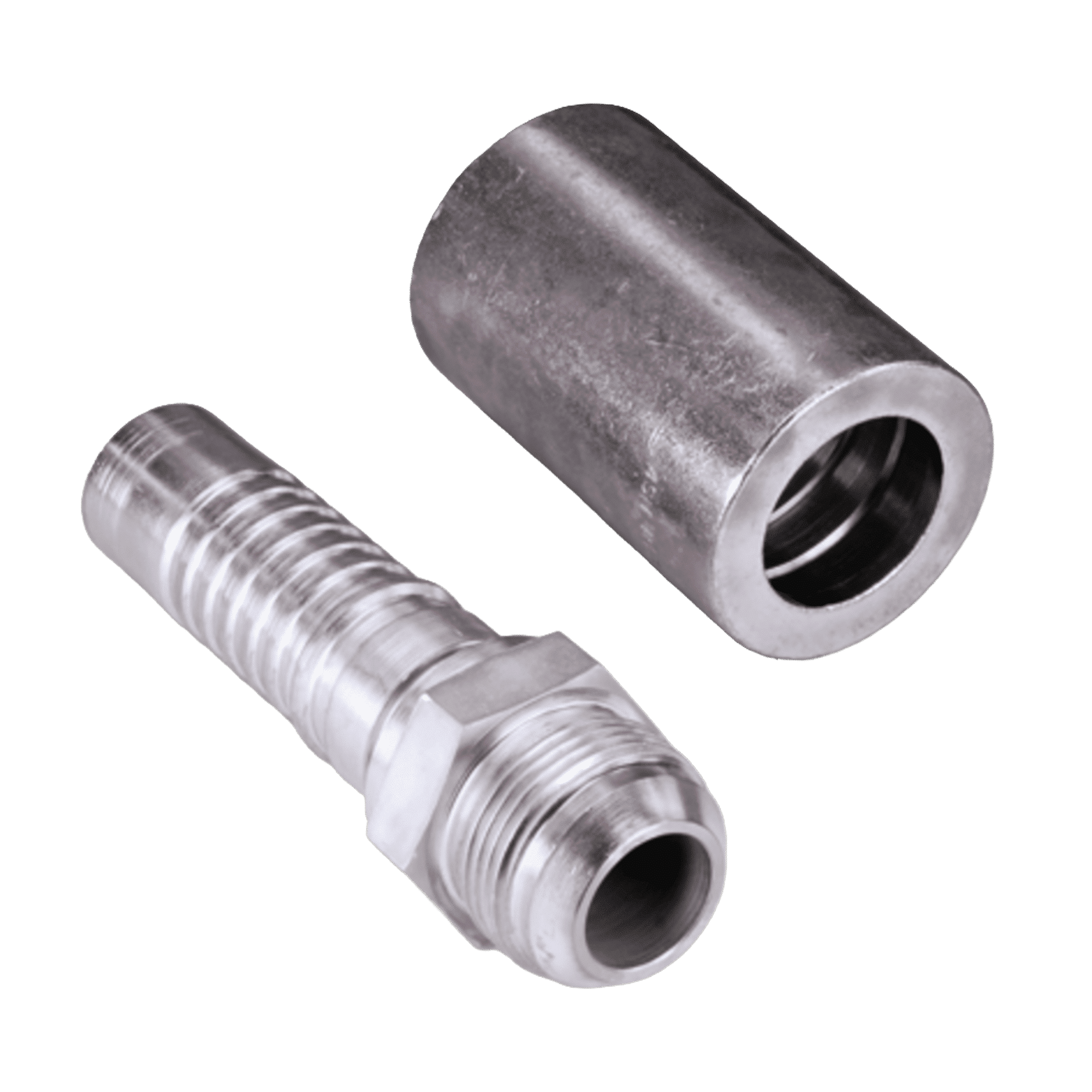

For swage fitting for HD 500 hoses. UN / UNF external threads. 74° outer cone. To ISO 8434-2. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 7 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 | S1 |
|---|---|---|---|---|---|---|
| 19 | 12 | 3/4” | 1.1/16”–12 UN | 102.5 | 27 | |
| 25 | 16 | 1” | 1.5/16”–12 UN | 117.0 | 36 | |
| 31 | 20 | 1.1/4” | 1.5/8”–12 UN | 127.0 | 46 | |
| 31 | 20 | 1.1/4” | 1.7/8”–12 UN | - | - | |
| 38 | 24 | 1.1/2” | 1.7/8”–12 UN | 145.5 | 50 | |
| 38 | 24 | 1.1/2” | 2.1/2”–12 UN | - | - | |
| 51 | 32 | 2” | 2.1/2”–12 UN | 169.5 | 65 |
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
