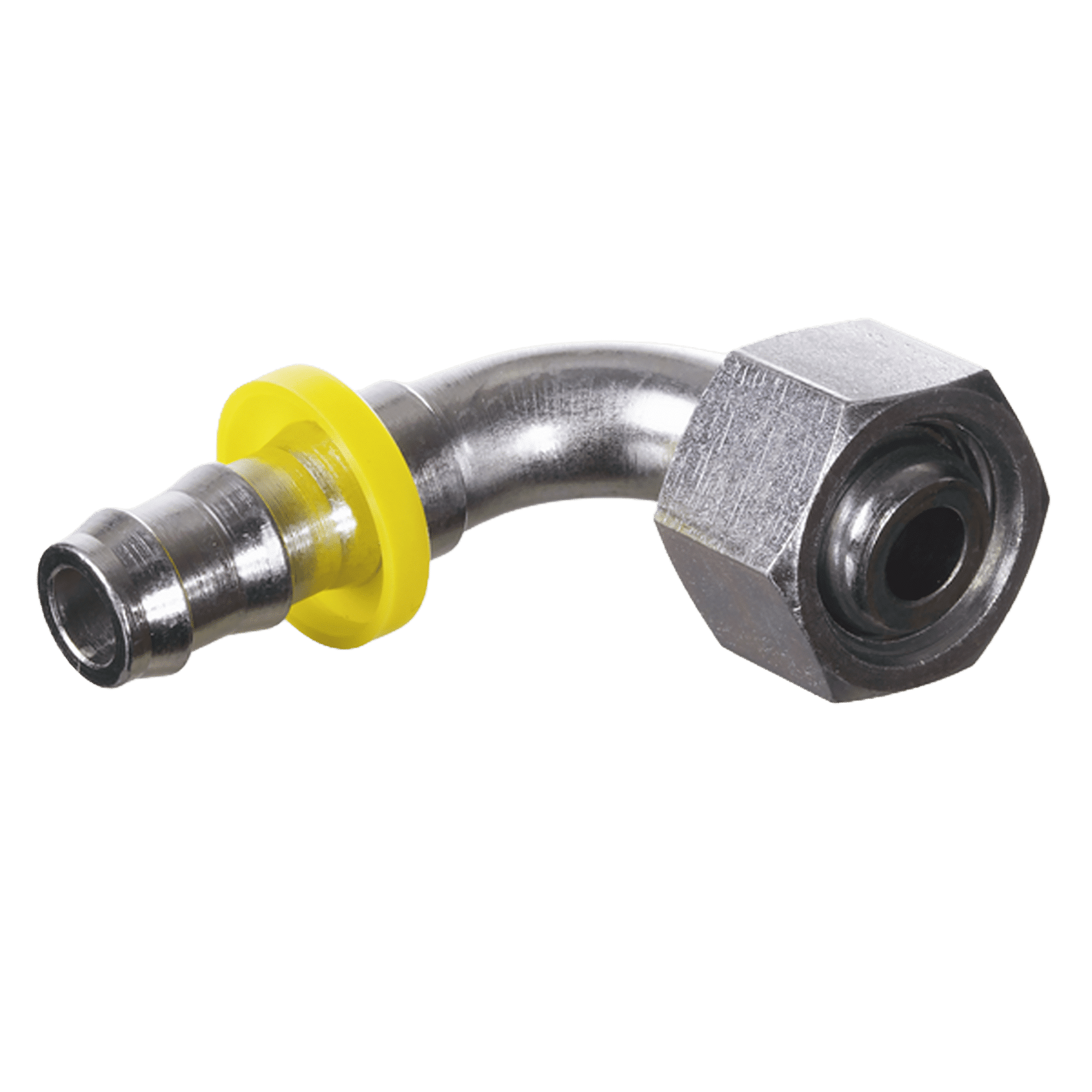

Plug-in nipple, DKR angle 90°. BSP nut thread. 60° outer cone. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | G 1/4”–19 | 42.0 | 29.0 | 17 | |
| 10 | 6 | 3/8” | G 3/8”–19 | 49.0 | 33.0 | 19 | |
| 12 | 8 | 1/2” | G 1/2”–14 | 60.0 | 39.0 | 27 | |
| 16 | 10 | 5/8” | G 5/8”–14 | 74.0 | 43.0 | 30 | |
| 19 | 12 | 3/4” | G 3/4”–14 | 88.0 | 53.0 | 32 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
