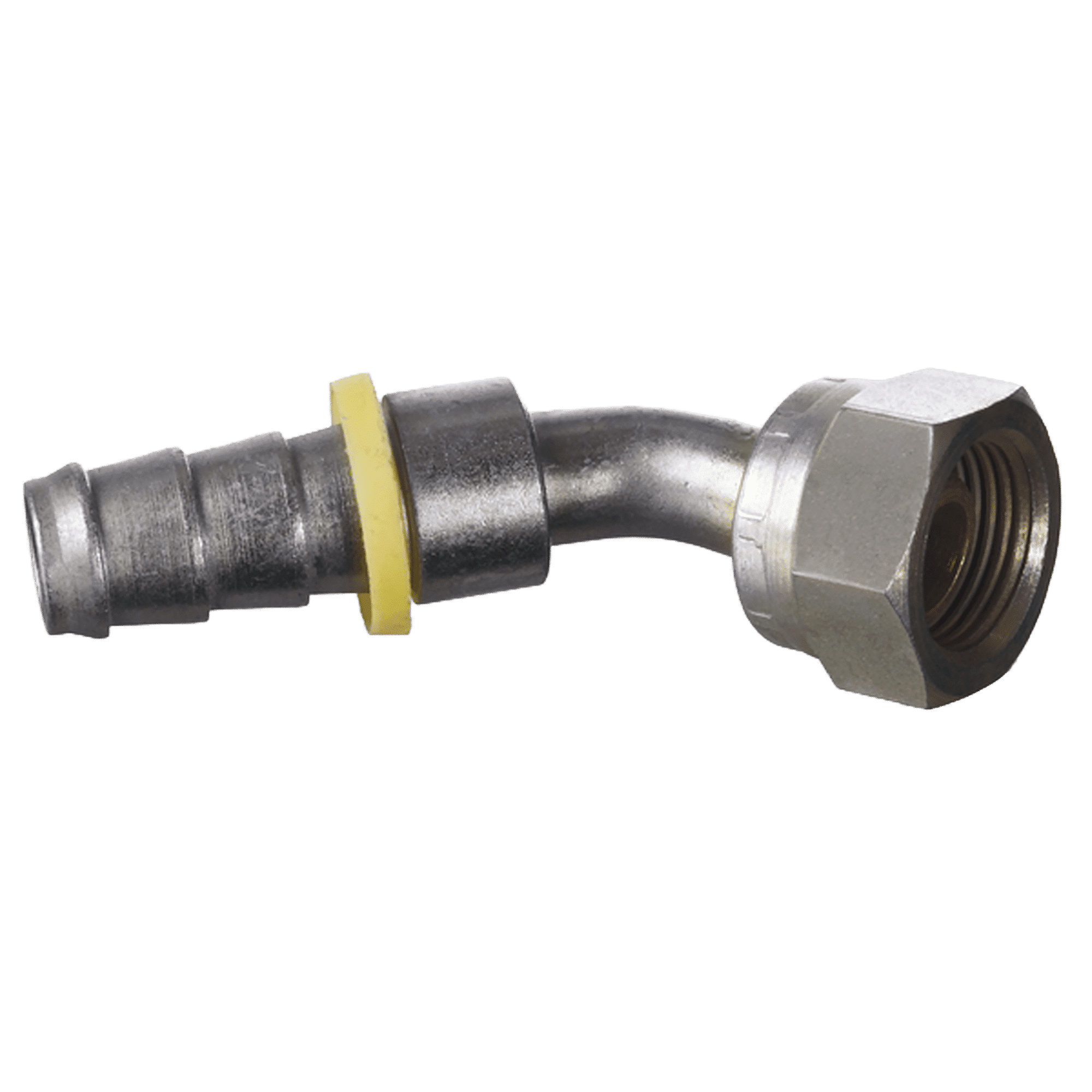

Plug-in nipple, DKR angle 45°. BSP nut thread. 60° outer cone. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 4 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 mm | L2 mm | S1 |
|---|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | G 1/4”–19 | 51.0 | 16.0 | 17 | |
| 10 | 6 | 3/8” | G 3/8”–19 | 58.0 | 18.0 | 19 | |
| 12 | 8 | 1/2” | G 1/2”–14 | 68.0 | 19.0 | 27 | |
| 16 | 10 | 5/8” | G 5/8”–14 | 81.0 | 21.0 | 30 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
