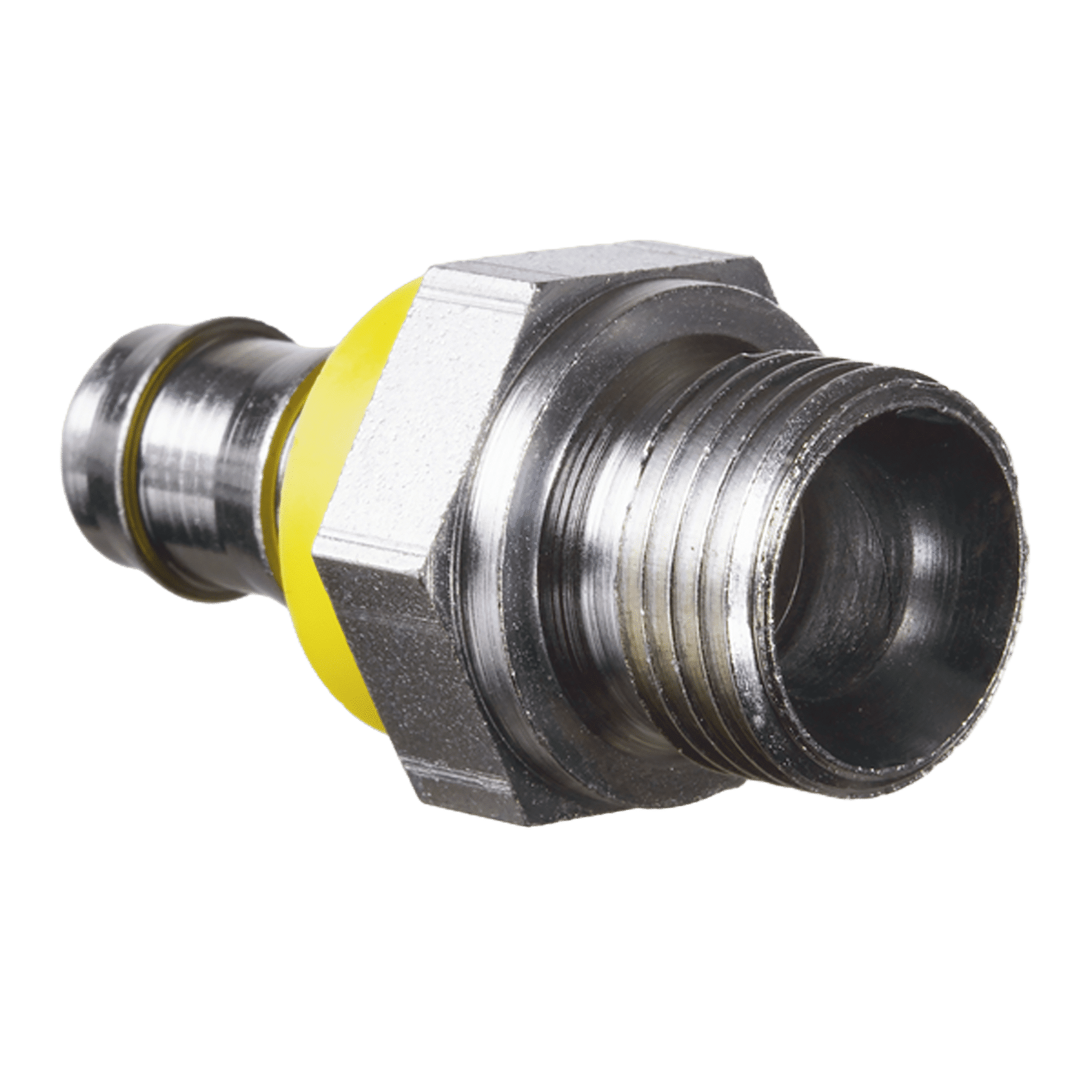

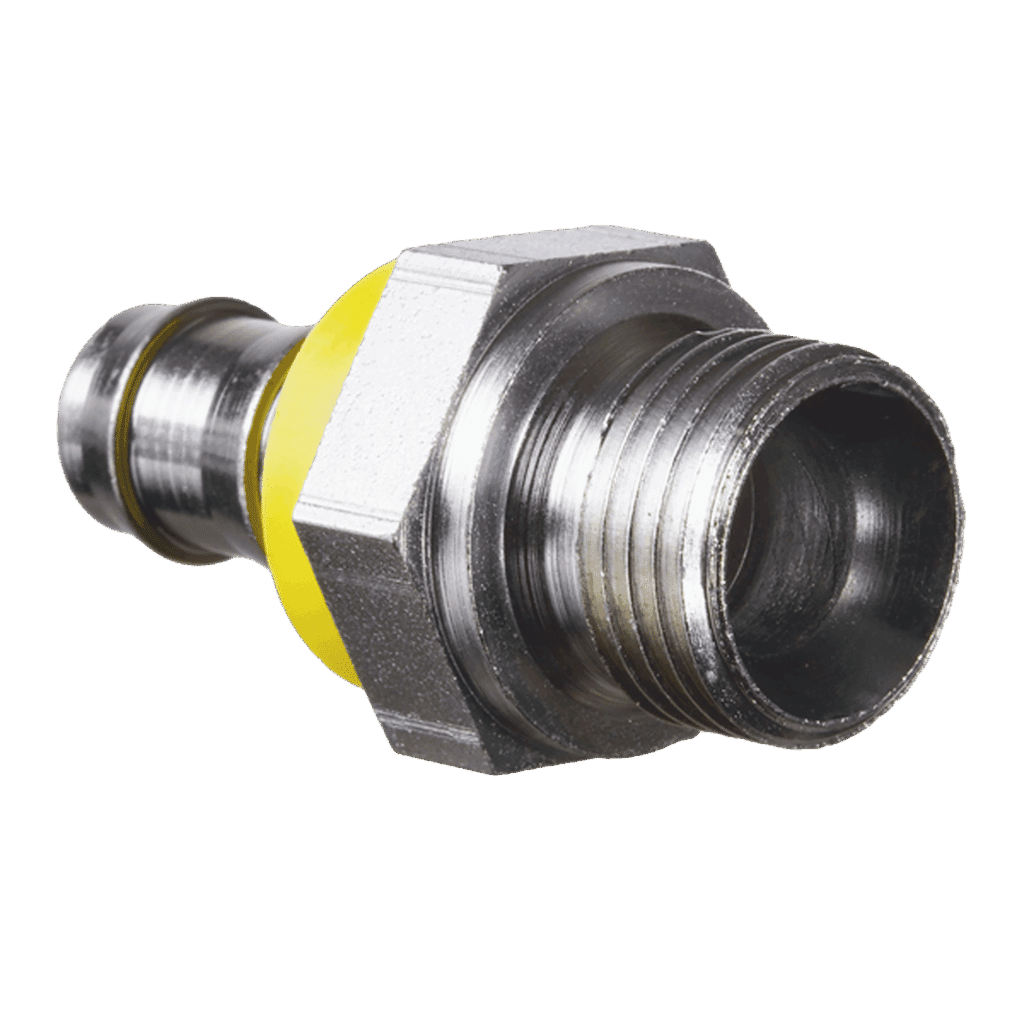

Plug-in nipple, AGR. BSP external thread, cylindrical. 60° inner cone. To ISO 8434-6, BS 5200. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | DN | Size | Inches | G1 | L1 | S1 |
|---|---|---|---|---|---|---|
| 6 | 4 | 1/4” | G 1/8”–28 | 36.0 | 17 | |
| 6 | 4 | 1/4” | G 1/4”–19 | 41.0 | 19 | |
| 10 | 6 | 3/8” | G 1/4”–19 | 44.0 | 19 | |
| 10 | 6 | 3/8” | G 3/8”–19 | 45.0 | 22 | |
| 12 | 8 | 1/2” | G 1/2”–14 | 53.0 | 27 | |
| 16 | 10 | 5/8” | G 1/2”–14 | - | - | |
| 16 | 10 | 5/8” | G 5/8”–14 | 65.0 | 30 | |
| 19 | 12 | 3/4” | G 3/4”–14 | 65.0 | 32 |
Note: Undamaged nipples can be reused.
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
