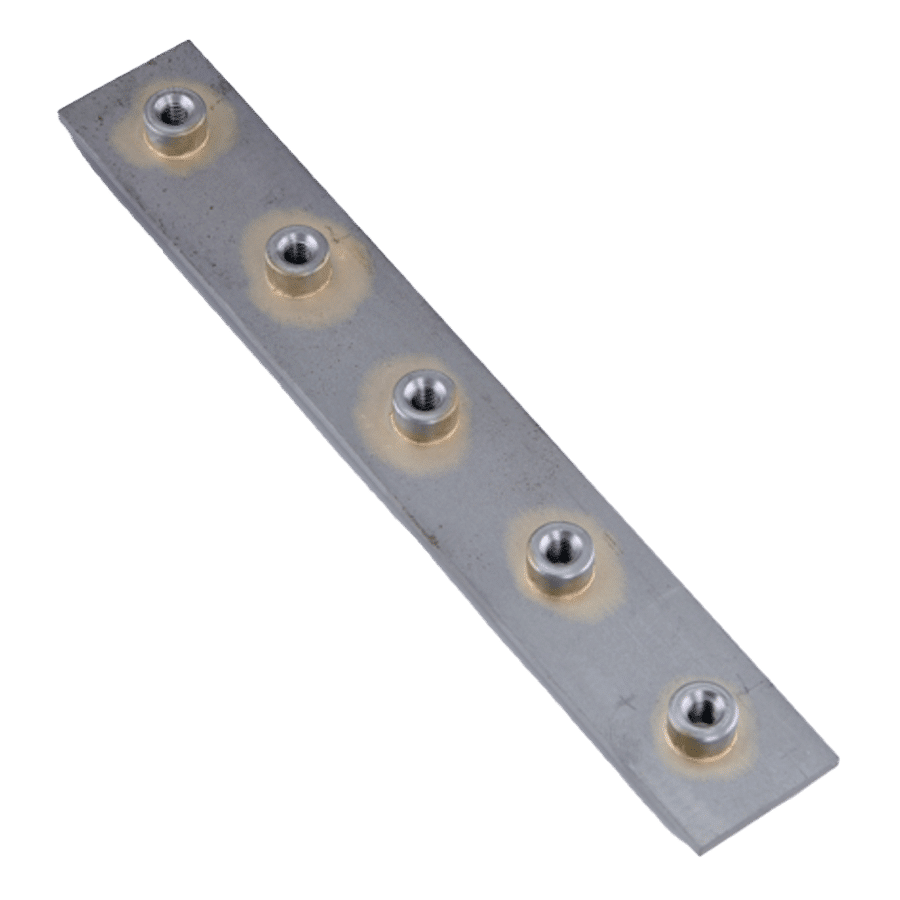

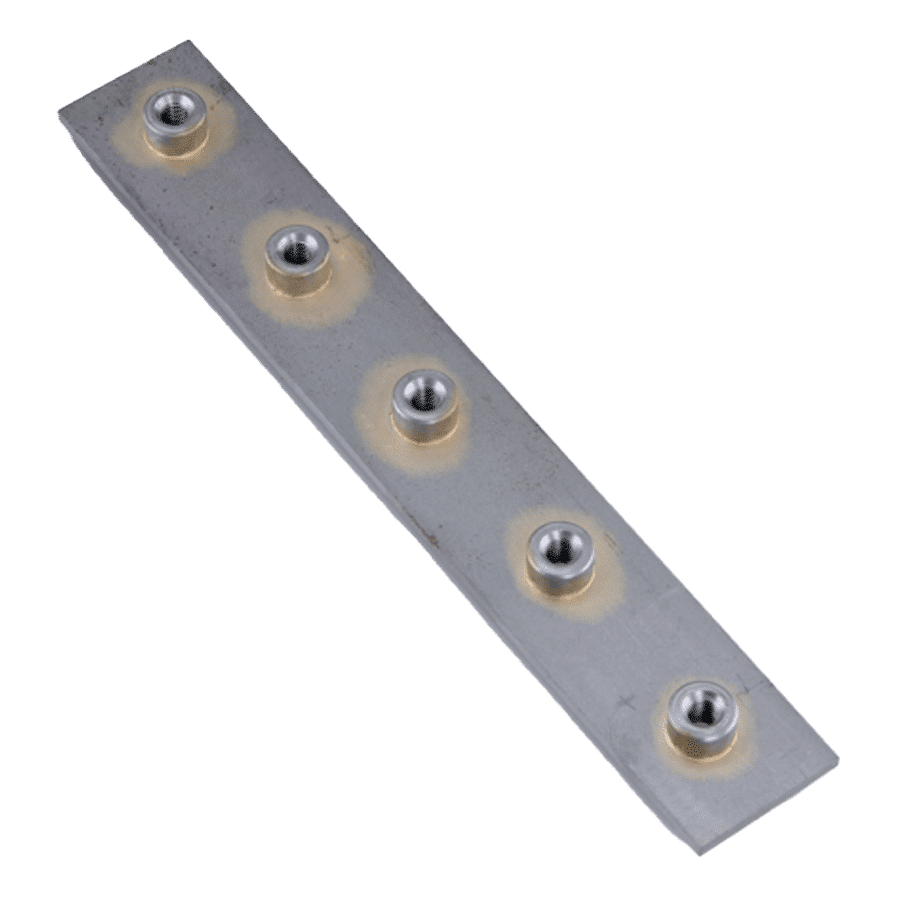

Series welded on base plate, double pipe clamp. For twin pipe clamps. To DIN 3015-3. Phosphate treated surface. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | Clamp size | B mm | e1 mm | G | L mm | S mm |
|---|---|---|---|---|---|---|
| 1 | 30 | 40 | M 6 | 196 | 3 | |
| 2 | 30 | 58 | M 8 | 288 | 5 | |
| 3 | 30 | 72 | M 8 | 358 | 5 | |
| 4 | 30 | 90 | M 8 | 446 | 5 | |
| 5 | 30 | 112 | M 8 | 558 | 5 |
Additional element for following products: B - Configuration of group
