Hydraulic Adaptors

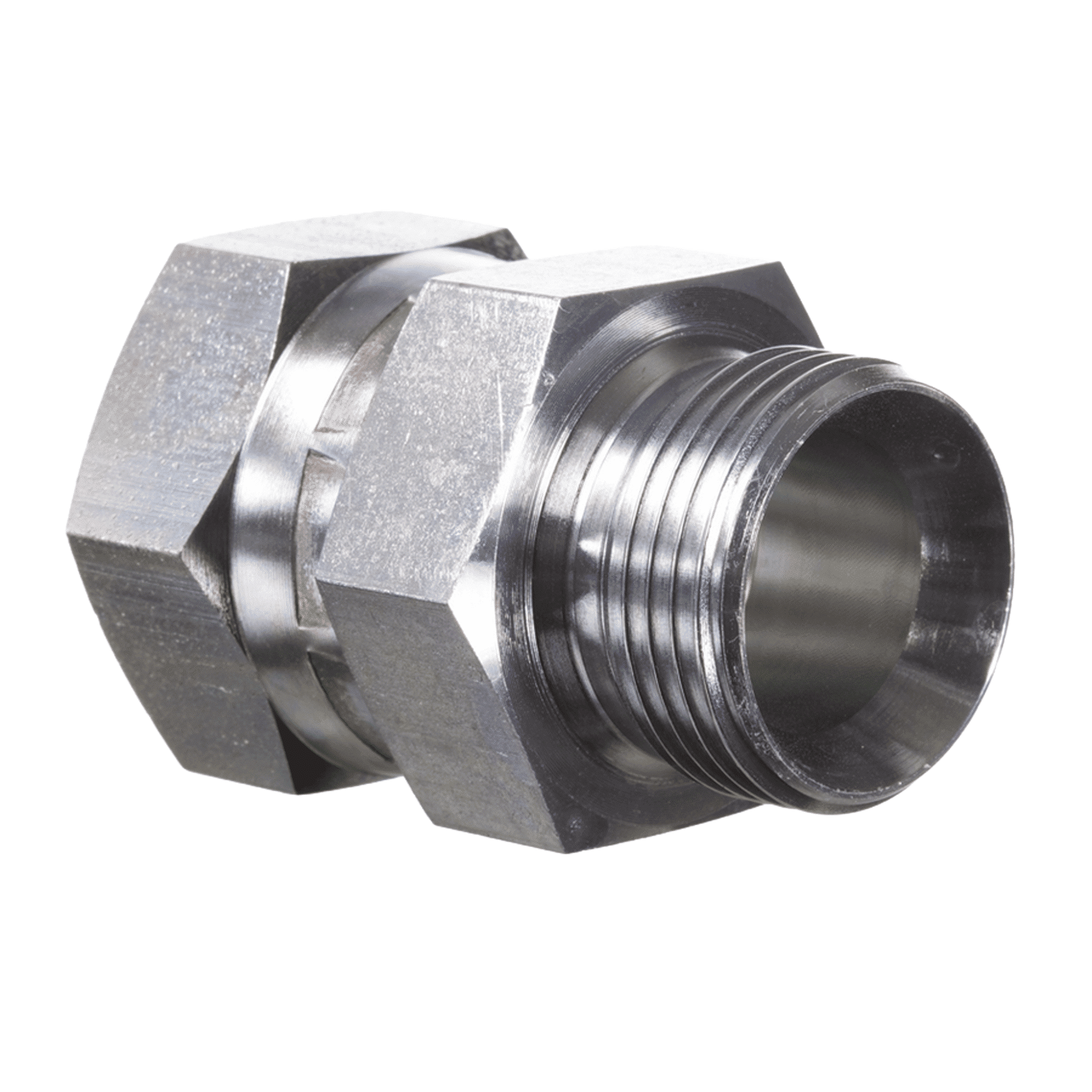

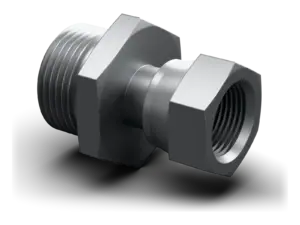

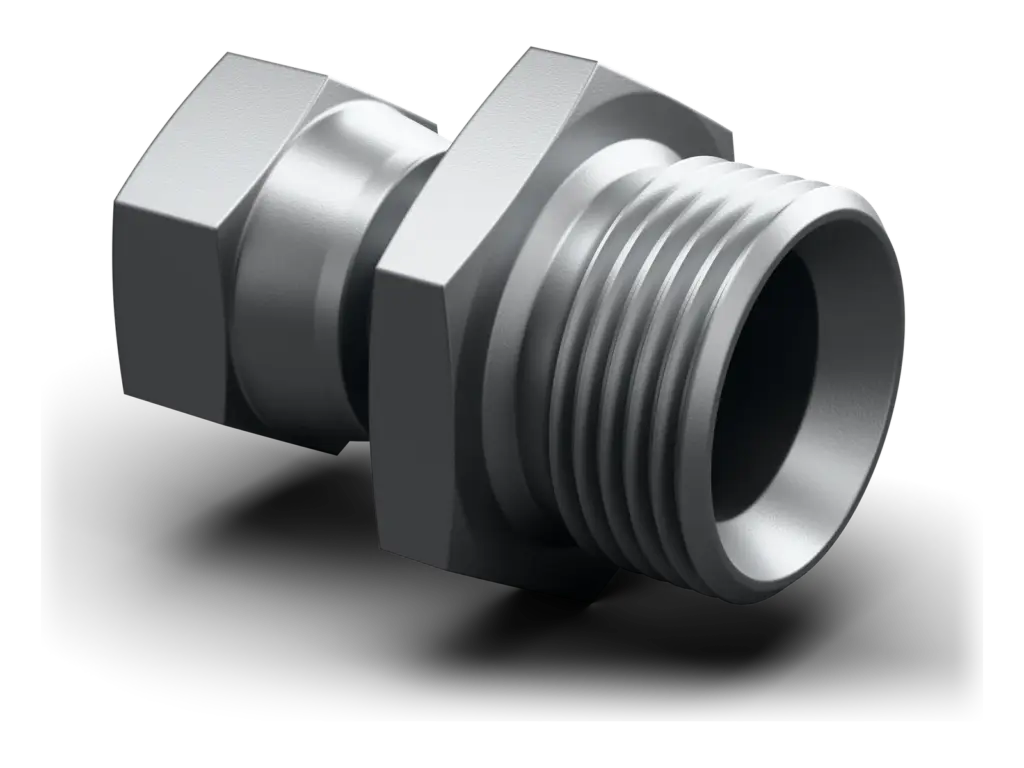

BSPP Swivel Female / BSPP Male

BSPP Swivel Female / BSPP Male

Connectors. Straight. BSP nut thread to bSP cylindrical external threads. 60° outer cone one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 41 sizes, each with its own part number.

41sizes
BSF-BPM-0202-MC to BSF-BPM-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mmS1
G 1/8”-28G 1/8”-281414
G 1/8”-28G 1/4”-191919
G 1/4”-19G 1/8”-281919
G 1/4”-19G 1/4”-191919
G 1/4”-19G 3/8”-192219
G 1/4”-19G 1/2”-142719
G 3/8”-19G 1/4”-191922
G 3/8”-19G 3/8”-192222
G 3/8”-19G 1/2”-142722
G 3/8”-19G 3/4”-142727
G 1/2”-14G 1/4”-191927
G 1/2”-14G 3/8”-192227
G 1/2”-14G 1/2”-142727
G 1/2”-14G 5/8”-142732
G 1/2”-14G 3/4”-143227
G 1/2”-14G 1”-112741
G 5/8”-14G 3/8”-193222
G 5/8”-14G 1/2”-143232
G 5/8”-14G 5/8”-143232
G 5/8”-14G 3/4”-143232
G 5/8”-14G 1”-113241
G 3/4”-14G 3/8”-192732
G 3/4”-14G 1/2”-142732
G 3/4”-14G 5/8”-143232
G 3/4”-14G 3/4”-143232
G 3/4”-14G 1”-114132
G 3/4”-14G 1.1/4”-114146
IdentificationG1G2SW mmS1
G 1”-11G 1/2”-144132
G 1”-11G 5/8”-144132
G 1”-11G 3/4”-144136
G 1”-11G 1”-114141
G 1”-11G 1.1/4”-114146
G 1.1/4”-11G 3/4”-145041
G 1.1/4”-11G 1”-114641
G 1.1/4”-11G 1.1/4”-115050
G 1.1/4”-11G 1.1/2”-115055
G 1.1/2”-11G 1.1/4”-115550
G 1.1/2”-11G 1.1/2”-115555
G 1.1/2”-11G 2”-115570
G 2”-11G 1.1/2”-117055
G 2”-11G 2”-117070

Product Version: Stainless Steel (SS)

The details

Connection 1
BSP nut thread
Sealing form 1
60° outer cone
Connection 2
BSP cylindrical external threads
Sealing form 2
60° inner cone
Design
Connectors
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

BSPP Swivel Female / BSPP Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
