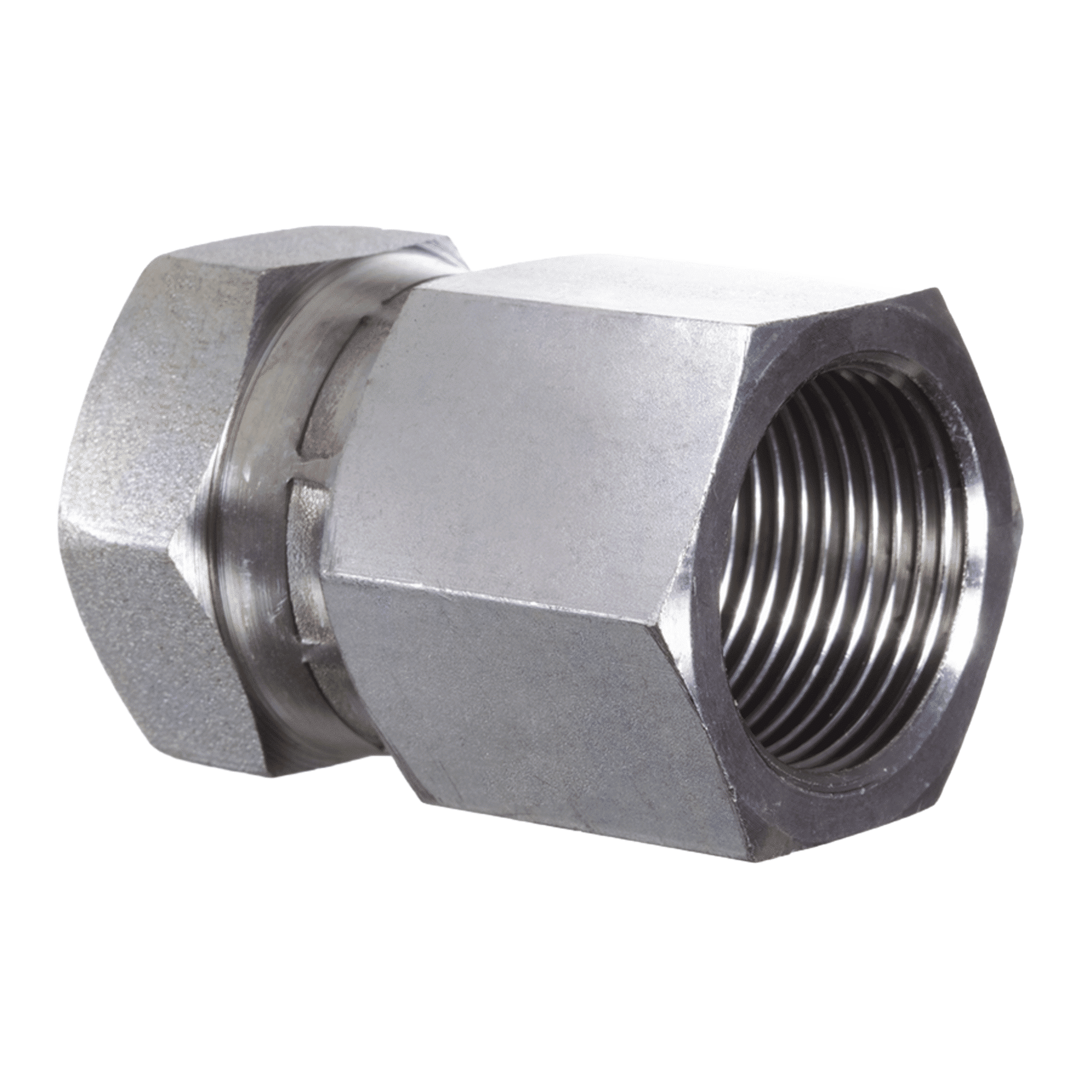

Screw-on connector. Straight. BSP nut thread to bSP cylindrical internal threads. 60° outer cone one end, flat seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 + G2 | SW mm | S1 |
|---|---|---|---|
| G 1/8”–28 | 14 | 14 | |
| G 1/4”–19 | 17 | 19 | |
| G 3/8”–19 | 22 | 22 | |
| G 1/2”–14 | 27 | 27 | |
| G 3/4”–14 | 32 | 32 | |
| G 1”–11 | 43 | 41 | |
| G 1.1/4”–11 | 50 | 50 | |
| G 1.1/2”–11 | 60 | 60 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
