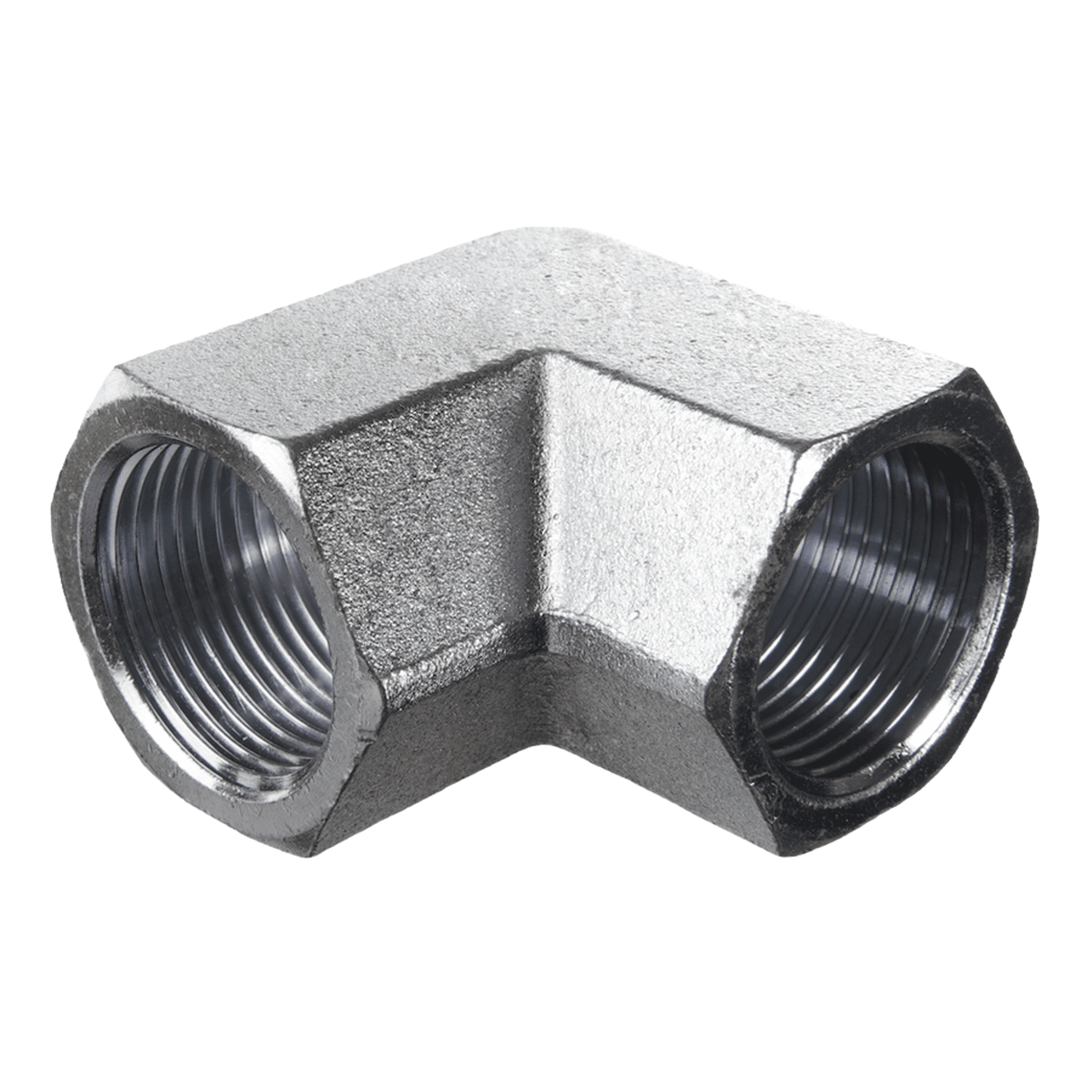

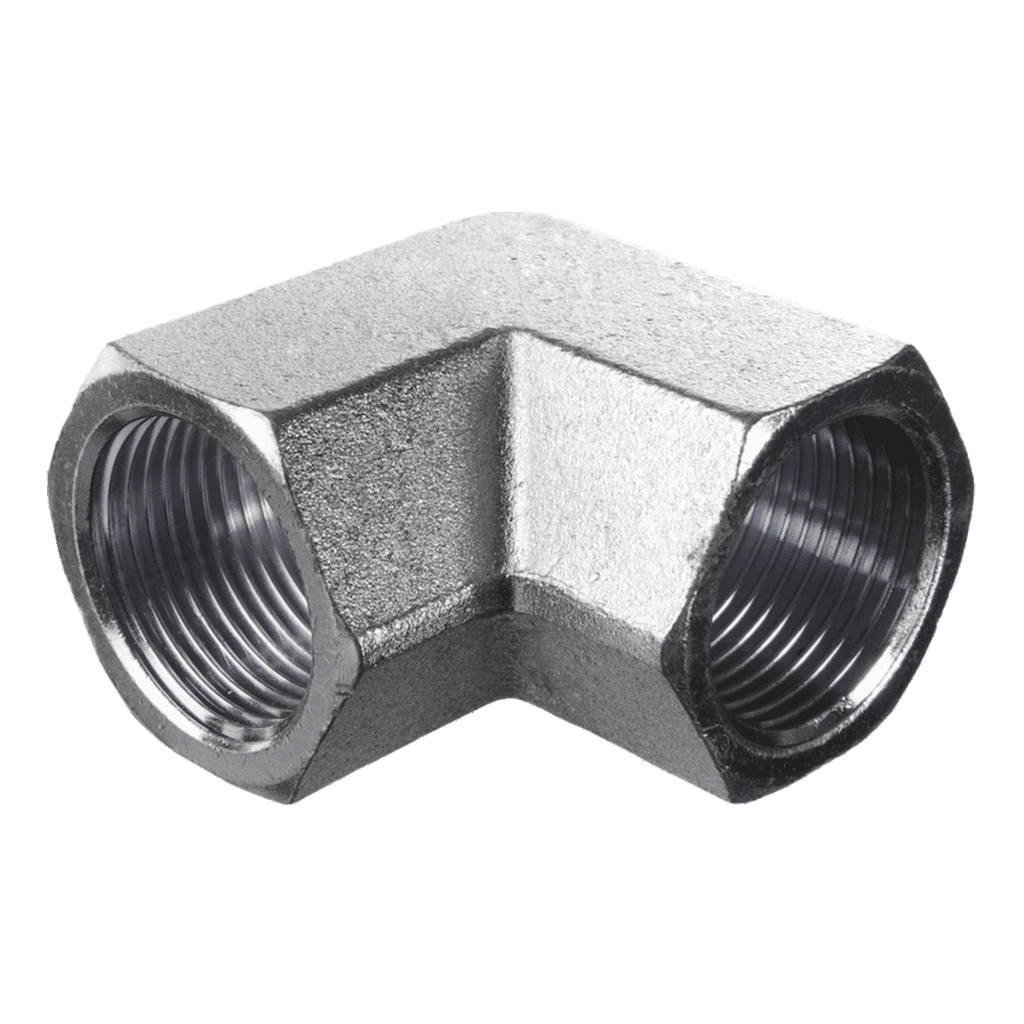

BSPP Socket 90

Name: BSPP Socket 90
Brand: Motus Hydraulics
SKU: BSPP-SOCKET-90

Connection socket, IGR, angle 90°. Connection sockets. BSP cylindrical internal threads at both ends. Flat sealing one end, flat seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 9 sizes, each with its own part number.

9sizes
BPF-BPF-90C-0202-MC to BPF-BPF-90C-3232-MC

Request a price Data sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™

MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

Filter the sizes

SW: Width across flats

Identification	G1 + G2	SW mm
BPF-BPF-90C-0202-MC	G 1/8”-28	17
BPF-BPF-90C-0404-MC	G 1/4”-19	19
BPF-BPF-90C-0606-MC	G 3/8”-19	22
BPF-BPF-90C-0808-MC	G 1/2”-14	27
BPF-BPF-90C-1212-MC	G 3/4”-14	33
BPF-BPF-90C-1616-MC	G 1”-11	41
BPF-BPF-90C-2020-MC	G 1.1/4”-11	48
BPF-BPF-90C-2424-MC	G 1.1/2”-11	64
BPF-BPF-90C-3232-MC	G 2”-11	73

The details

Connection 1: BSP cylindrical internal threads
Sealing form 1: Flat sealing
Connection 2: BSP cylindrical internal threads
Sealing form 2: Flat seal
Design: Connection sockets
Construction: Angle 90°
Material: Steel
Surface: MotusCoat™

Downloads

BSPP Socket 90 data sheetPDF, matches the catalogueDownload

Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

A fitting with a competitor coating, covered in red rust — Competitor coating after 1000-hour salt spray testing

A fitting with MotusCoat, with no red rust — **MotusCoat™**After a 1000-hour salt spray test according to DIN EN ISO 9227
