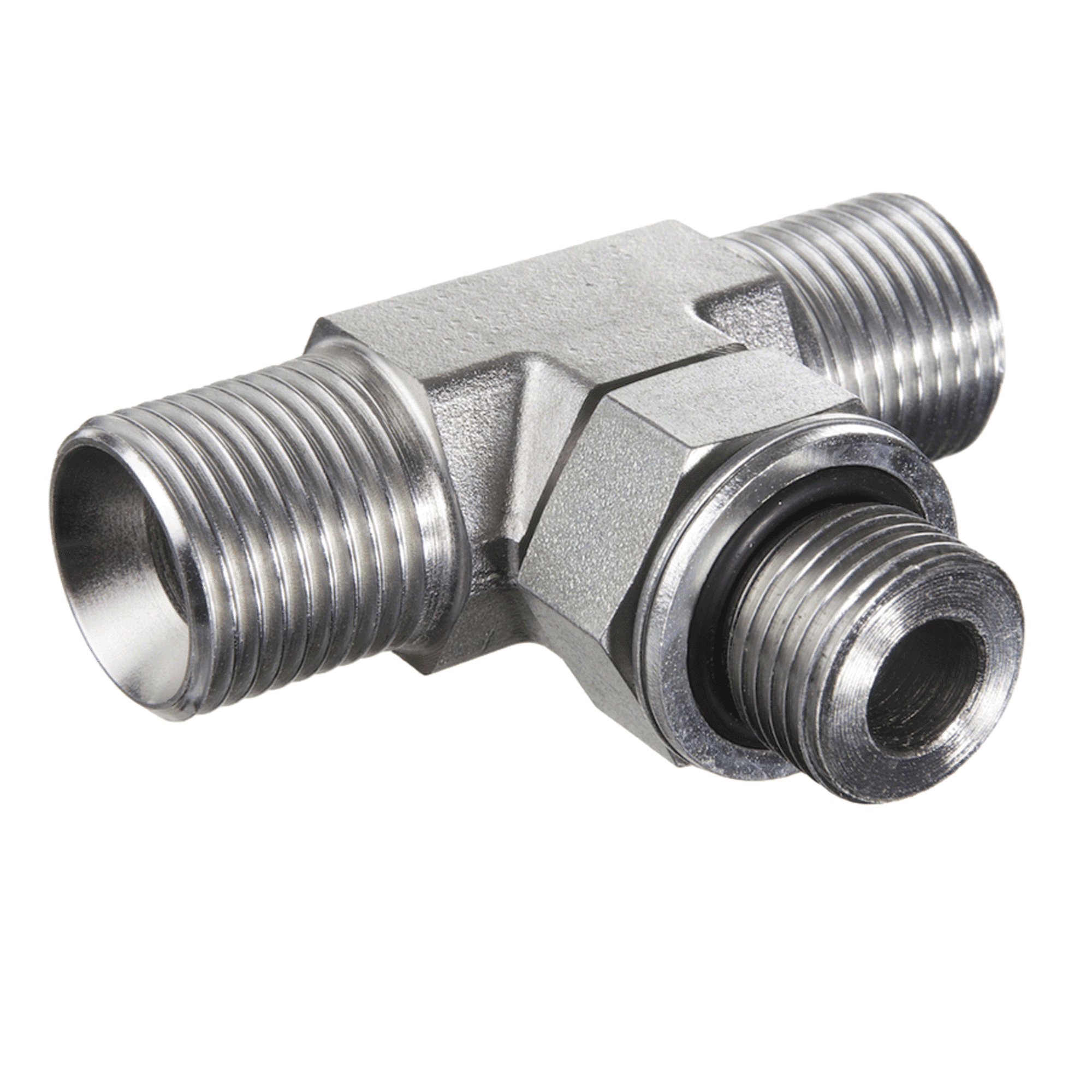

Screw-in socket, T shaped. Adjustable direction screw-in socket. Metric cylindrical outer thread. Thread socket with O-ring + spacer. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 + G2 | G3 | SW mm | S1 | OR |
|---|---|---|---|---|---|
| G 1/4”-19 | M 12 x 1.5 | 13 | 18 | 9.3 x 2.4 | |
| G 1/4”-19 | M 14 x 1.5 | 14 | 20 | 11.3 x 2.4 | |
| G 3/8”-19 | M 14 x 1.5 | 14 | 20 | 11.3 x 2.4 | |
| G 3/8”-19 | M 16 x 1.5 | 19 | 22 | 13.3 x 2.4 | |
| G 3/8”-19 | M 18 x 1.5 | 19 | 24 | 15.3 x 2.4 | |
| G 1/2”-14 | M 18 x 1.5 | 19 | 24 | 15.3 x 2.4 | |
| G 3/4”-14 | M 22 x 1.5 | 22 | 28 | 19.3 x 2.4 | |
| G 3/4”-14 | M 26 x 1.5 | 32 | 28 | 23.5 x 2.6 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
