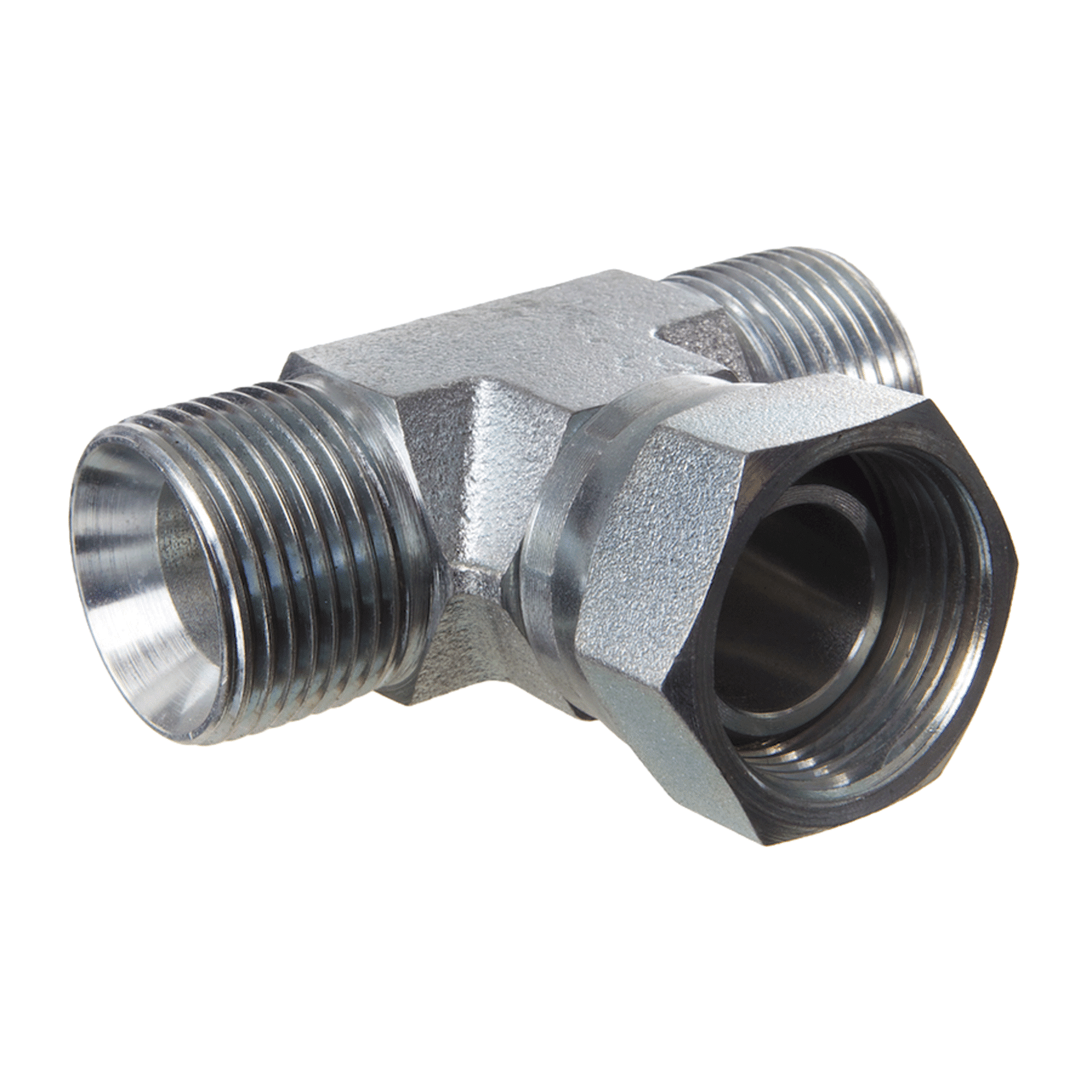

Screw-on socket, T shaped. Adjustable direction screw-on socket. BSP nut thread. 60° outer cone. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 + G3 | SW mm | S1 |
|---|---|---|---|---|
| G 1/4”–19 | G 1/4”–19 | 14 | 19 | |
| G 3/8”–19 | G 3/8”–19 | 17 | 22 | |
| G 1/2”–14 | G 1/2”–14 | 22 | 27 | |
| G 5/8”–14 | G 5/8”–14 | 24 | 30 | |
| G 3/4”–14 | G 3/4”–14 | 27 | 32 | |
| G 1”–11 | G 1”–11 | 36 | 41 | |
| G 1.1/4”–11 | G 1.1/4”–11 | 46 | 50 | |
| G 1.1/2”–11 | G 1.1/2”–11 | 50 | 55 |
SW, S1, S2 = Width across flats
Product Version: Stainless Steel (SS)
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
