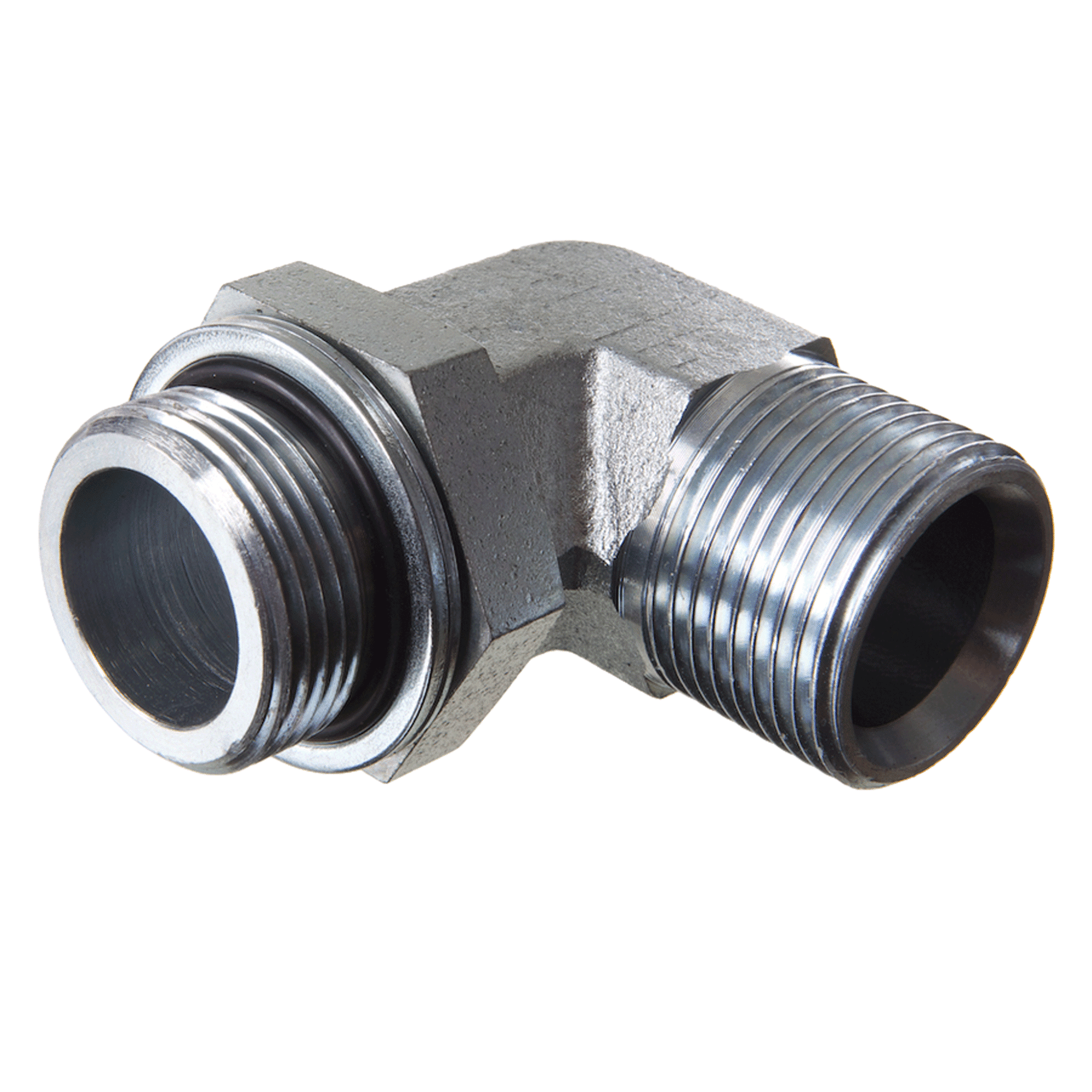

Screw-in socket, angle 90°. Screw-in sockets. L shaped. Metric External threads to bSP Nut Threads. Thread seal one end, 74° outer cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 18 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | S1 | OR |
|---|---|---|---|---|---|
| M 10 x 1 | G 1/8”–28 | 11 | 15 | 8.00 x 1.50 | |
| M 12 x 1.5 | G 1/8”–28 | 14 | 18 | 9.30 x 2.40 | |
| M 12 x 1.5 | G 1/4”–19 | 14 | 18 | 9.30 x 2.40 | |
| M 14 x 1.5 | G 1/4”–19 | 14 | 20 | 11.30 x 2.40 | |
| M 14 x 1.5 | G 3/8”–19 | 14 | 20 | 11.30 x 2.40 | |
| M 16 x 1.5 | G 1/4”–19 | 19 | 20 | 13.30 x 2.40 | |
| M 16 x 1.5 | G 3/8”–19 | 19 | 20 | 13.30 x 2.40 | |
| M 18 x 1.5 | G 3/8”–19 | 19 | 25 | 15.30 x 2.40 | |
| M 18 x 1.5 | G 1/2”–14 | 19 | 25 | 15.30 x 2.40 | |
| M 20 x 1.5 | G 1/2”–14 | 27 | 28 | 17.30 x 2.40 | |
| M 22 x 1.5 | G 1/2”–14 | 27 | 28 | 19.30 x 2.40 | |
| M 22 x 1.5 | G 5/8”–14 | 27 | 28 | 19.30 x 2.40 | |
| M 22 x 1.5 | G 3/4”–14 | 27 | 28 | 19.30 x 2.40 | |
| M 26 x 1.5 | G 3/4”–14 | 30 | 33 | 23.50 x 2.60 | |
| M 27 x 2 | G 3/4”–14 | 30 | 33 | 23.47 x 2.95 | |
| M 33 x 2 | G 1”–11 | 36 | 42 | 29.74 x 2.95 | |
| M 42 x 2 | G 1.1/4”–11 | 41 | 50 | 38.00 x 3.00 | |
| M 48 x 2 | G 1.1/2”–11 | 50 | 56 | 44.00 x 3.00 |
SW, S1, S2 = Width across flats
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
