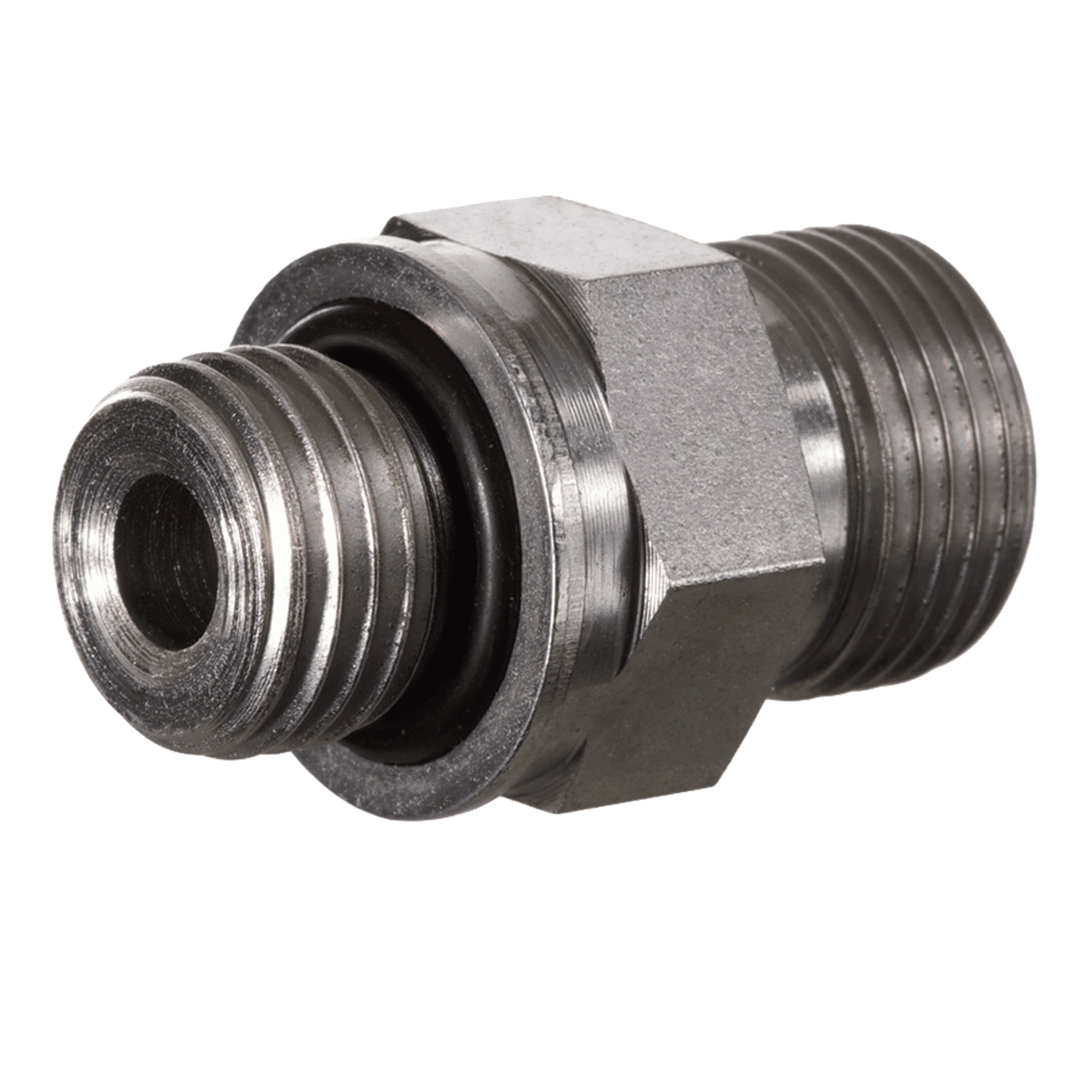

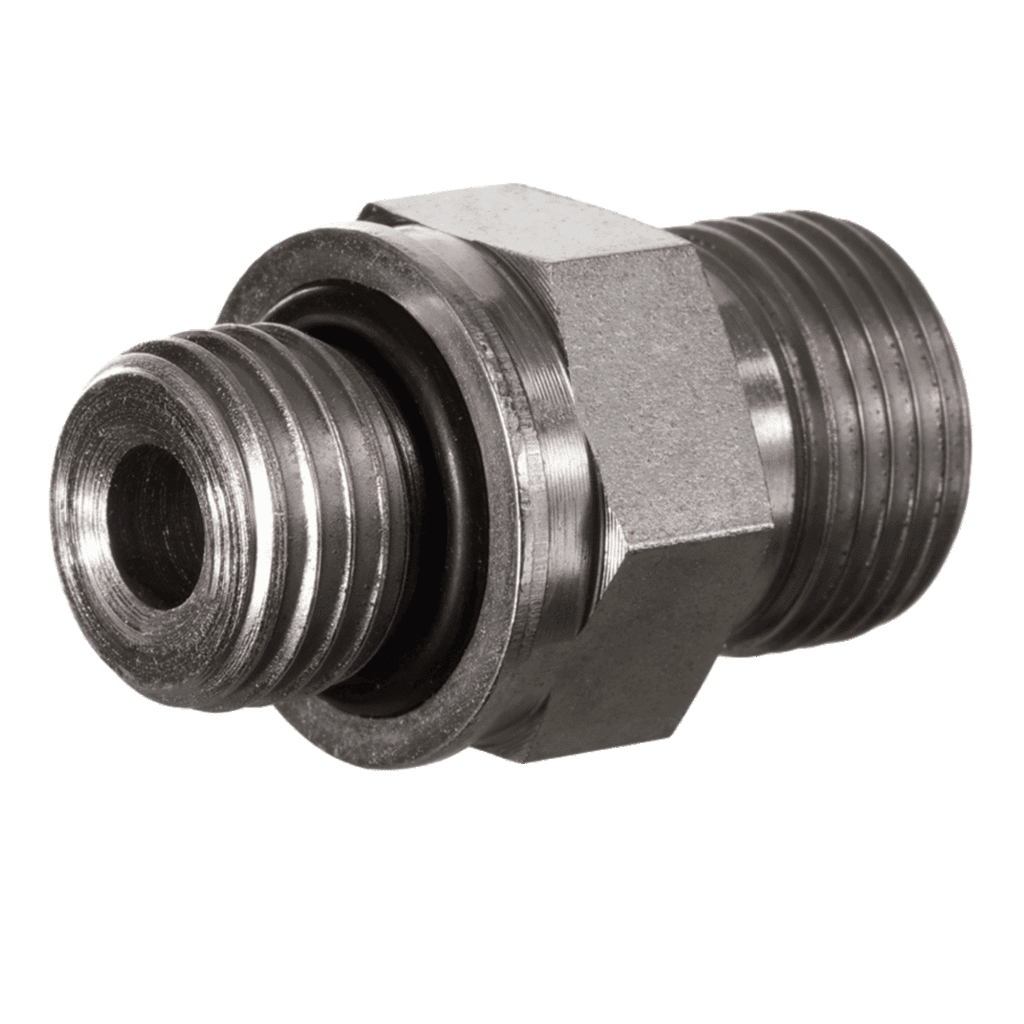

Screw-in sockets. Straight. Metric Stud Male to bSP nut thread. Thread seal one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | SW mm | OR |
|---|---|---|---|---|
| M 10 x 1 | G 1/8”–28 | 14 | 8.1 x 1.6 | |
| M 12 x 1.5 | G 1/8”–28 | 17 | 9.3 x 2.2 | |
| M 12 x 1.5 | G 1/4”–19 | 19 | 9.3 x 2.2 | |
| M 14 x 1.5 | G 1/4”–19 | 19 | 11.3 x 2.2 | |
| M 14 x 1.5 | G 3/8”–19 | 22 | 11.3 x 2.2 | |
| M 16 x 1.5 | G 1/4”–19 | 22 | 13.3 x 2.2 | |
| M 16 x 1.5 | G 3/8”–19 | 22 | 13.3 x 2.2 | |
| M 18 x 1.5 | G 3/8”–19 | 24 | 15.3 x 2.2 | |
| M 18 x 1.5 | G 1/2”–14 | 24 | 15.3 x 2.2 | |
| M 20 x 1.5 | G 1/2”–14 | 27 | 17.3 x 2.2 | |
| M 22 x 1.5 | G 1/2”–14 | 27 | 19.3 x 2.2 | |
| M 22 x 1.5 | G 5/8”–14 | 27 | 19.3 x 2.2 | |
| M 22 x 1.5 | G 3/4”–14 | 32 | 19.3 x 2.2 | |
| M 26 x 1.5 | G 3/4”–14 | 32 | 23.6 x 2.9 | |
| M 27 x 2 | G 3/4”–14 | 32 | 23.6 x 2.9 | |
| M 27 x 2 | G 1”–11 | 41 | 23.6 x 2.9 | |
| M 33 x 2 | G 1”–11 | 41 | 29.6 x 2.9 | |
| M 42 x 2 | G 1.1/4”–11 | 50 | 38.6 x 2.9 | |
| M 48 x 2 | G 1.1/2”–11 | 55 | 44.6 x 2.9 |
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
