Hydraulic Adaptors

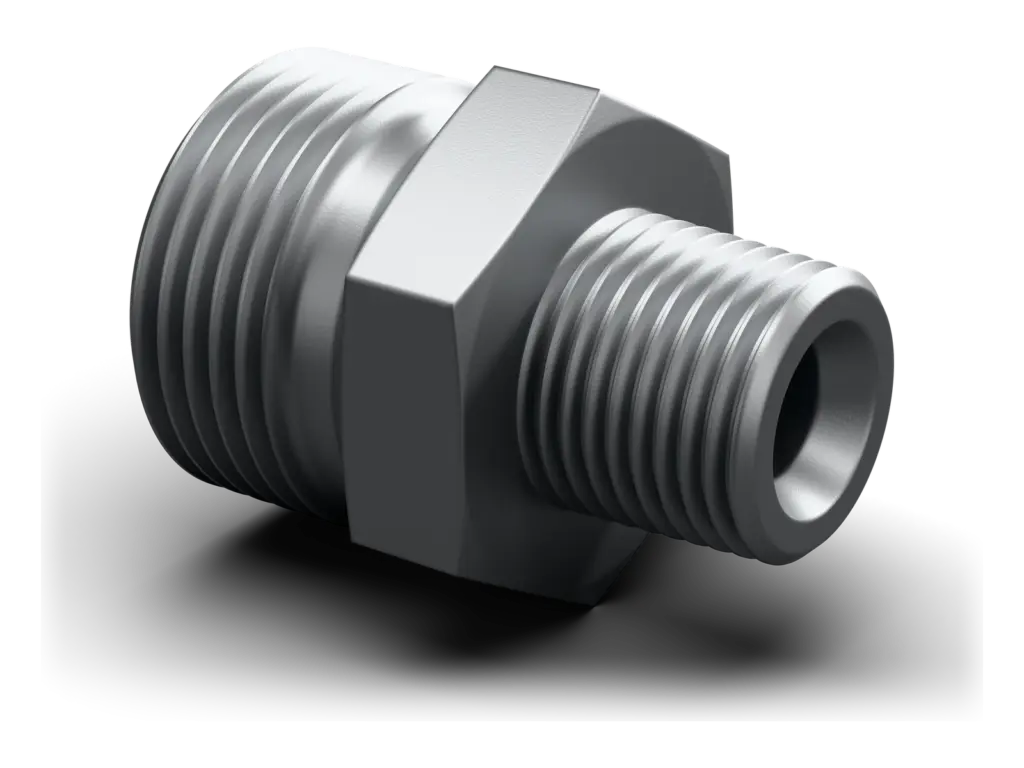

BSPP Male / NPT Male

BSPP Male / NPT Male

Screw-in sockets. Straight. BSP external thread, cylindrical to nPT external threads. 60° outer cone one end, thread seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 43 sizes, each with its own part number.

43sizes
BPM-NTM-0202-MC to BPM-NTM-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mm
G 1/8”–281/8”–27 NPT11
G 1/8”–281/4”–18 NPT17
G 1/4”–191/8”–27 NPT17
G 1/4”–191/4”–18 NPT17
G 1/4”–193/8”–18 NPT17
G 1/4”–191/2”–14 NPT22
G 1/4”–193/4”–14 NPT27
G 3/8”–191/8”–27 NPT17
G 3/8”–191/4”–18 NPT17
G 3/8”–193/8”–18 NPT17
G 3/8”–191/2”–14 NPT22
G 3/8”–193/4”–14 NPT27
G 3/8”–191”–11.5 NPT36
G 1/2”–141/4”–18 NPT22
G 1/2”–143/8”–18 NPT22
G 1/2”–141/2”–14 NPT22
G 1/2”–143/4”–14 NPT27
G 1/2”–141”–11.5 NPT36
G 5/8”–141/2”–14 NPT27
G 5/8”–143/4”–14 NPT27
G 3/4”–141/4”–18 NPT27
G 3/4”–143/8”–18 NPT27
G 3/4”–141/2”–14 NPT27
G 3/4”–143/4”–14 NPT27
G 3/4”–141”–11.5 NPT36
G 3/4”–141.1/4”–11.5 NPT46
IdentificationG1G2SW mm
G 1”–111/2”–14 NPT36
G 1”–113/4”–14 NPT36
G 1”–111”–11.5 NPT36
G 1”–111.1/4”–11.5 NPT46
G 1”–111.1/2”–11.5 NPT50
G 1”–112”–11.5 NPT65
G 1.1/4”–113/4”–14 NPT46
G 1.1/4”–111”–11.5 NPT46
G 1.1/4”–111.1/4”–11.5 NPT46
G 1.1/4”–111.1/2”–11.5 NPT50
G 1.1/2”–111”–11.5 NPT50
G 1.1/2”–111.1/4”–11.5 NPT50
G 1.1/2”–111.1/2”–11.5 NPT50
G 1.1/2”–112”–11.5 NPT65
G 2”–111.1/4”–11.5 NPT65
G 2”–111.1/2”–11.5 NPT65
G 2”–112”–11.5 NPT65

Product Version: Stainless Steel (SS)

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
60° outer cone
Connection 2
NPT external threads
Sealing form 2
Thread seal
Design
Screw-in sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

BSPP Male / NPT Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
