Hydraulic Adaptors

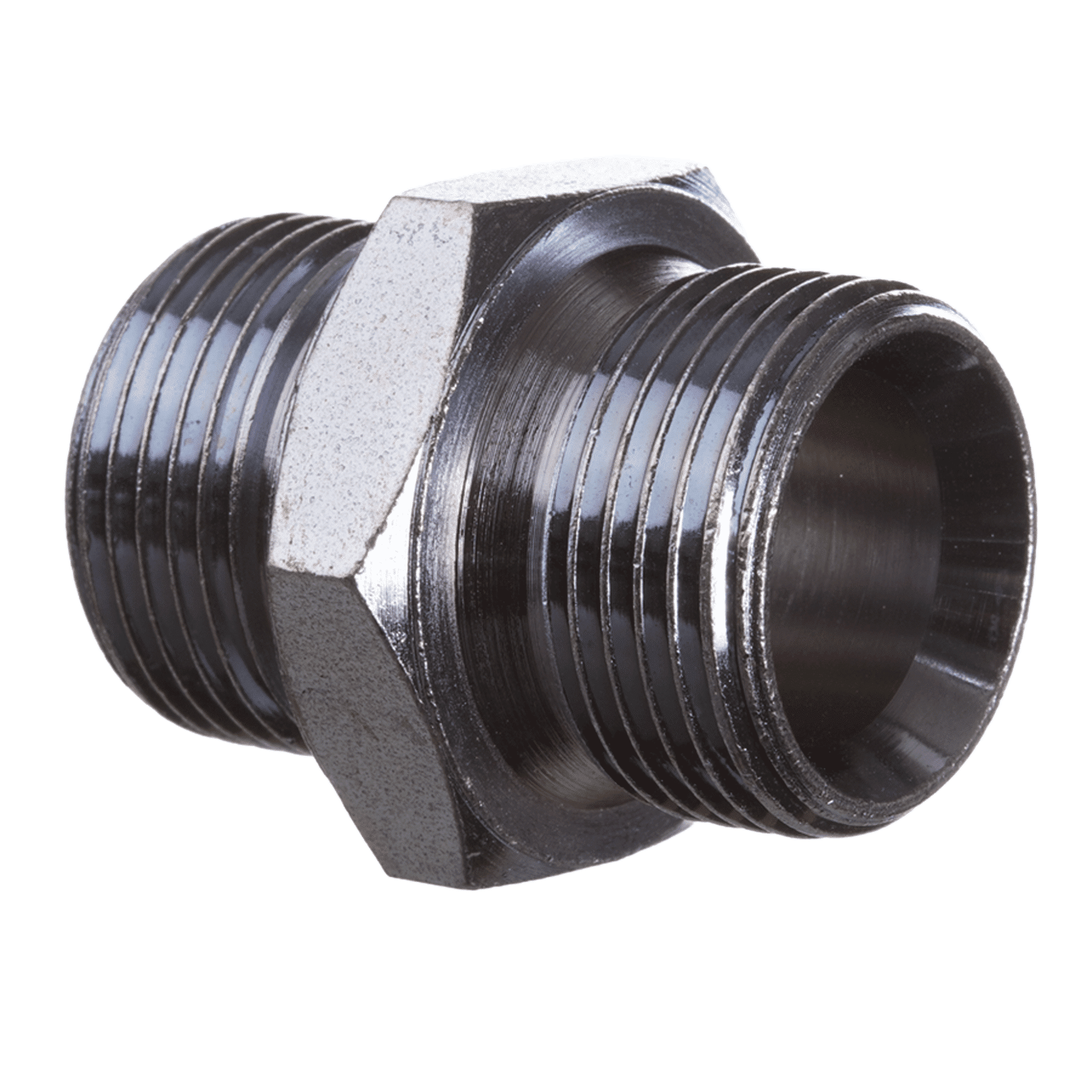

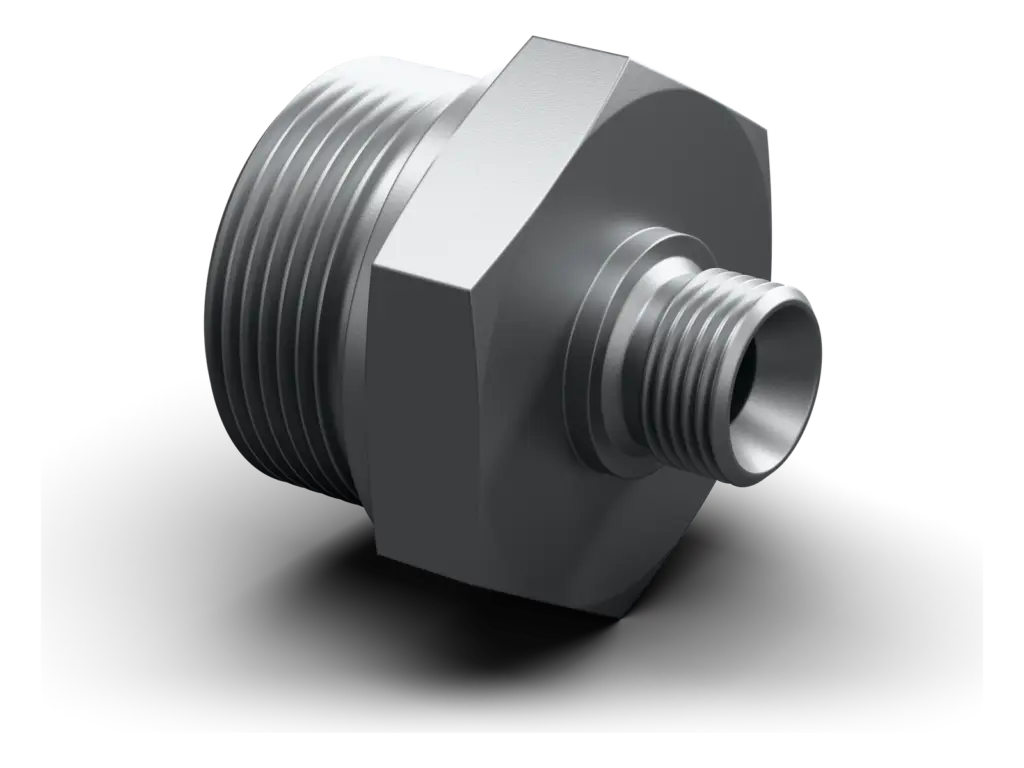

BSPP Male / Male

BSPP Male / Male

Connection sockets. Straight. BSP external thread, cylindrical to bSP cylindrical external threads. 60° inner cone. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 45 sizes, each with its own part number.

45sizes
BPM-BPM-0202-MC to BPM-BPM-4848-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mm
G 1/8”–28G 1/8”–2814
G 1/8”–28G 1/4”–1919
G 1/8”–28G 3/8”–1922
G 1/8”–28G 1/2”–1427
G 1/4”–19G 1/4”–1919
G 1/4”–19G 3/8”–1922
G 1/4”–19G 1/2”–1427
G 1/4”–19G 5/8”–1430
G 1/4”–19G 3/4”–1432
G 1/4”–19G 1”–1141
G 1/4”–19G 1.1/4”–1150
G 3/8”–19G 3/8”–1922
G 3/8”–19G 1/2”–1427
G 3/8”–19G 5/8”–1432
G 3/8”–19G 3/4”–1432
G 3/8”–19G 1”–1141
G 3/8”–19G 1.1/4”–1150
G 1/2”–14G 1/2”–1427
G 1/2”–14G 5/8”–1430
G 1/2”–14G 3/4”–1432
G 1/2”–14G 1”–1141
G 1/2”–14G 1.1/4”–1150
G 1/2”–14G 1.1/2”–1155
G 1/2”–14G 2”–1170
IdentificationG1G2SW mm
G 5/8”–14G 5/8”–1430
G 5/8”–14G 3/4”–1432
G 5/8”–14G 1”–1141
G 5/8”–14G 1.1/4”–1150
G 3/4”–14G 3/4”–1432
G 3/4”–14G 1”–1141
G 3/4”–14G 1.1/4”–1150
G 3/4”–14G 1.1/2”–1155
G 3/4”–14G 2”–1170
G 1”–11G 1”–1141
G 1"G 1.1/4”–1150
G 1”–11G 1.1/2”–1155
G 1”–11G 2”–1170
G 1.1/4”–11G 1.1/4”–1150
G 1.1/4”–11G 1.1/2”–1155
G 1.1/4”–11G 2”–1170
G 1.1/2”–11G 1.1/2”–1155
G 1.1/2”–11G 2”–1170
G 2”–11G 2”–1170
G 2.1/2”–11G 3”–11100
G 3”–11G 3”–11110

Product Version: Stainless Steel (SS)

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
60° inner cone
Connection 2
BSP cylindrical external threads
Sealing form 2
60° inner cone
Design
Connection sockets
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

BSPP Male / Male data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
