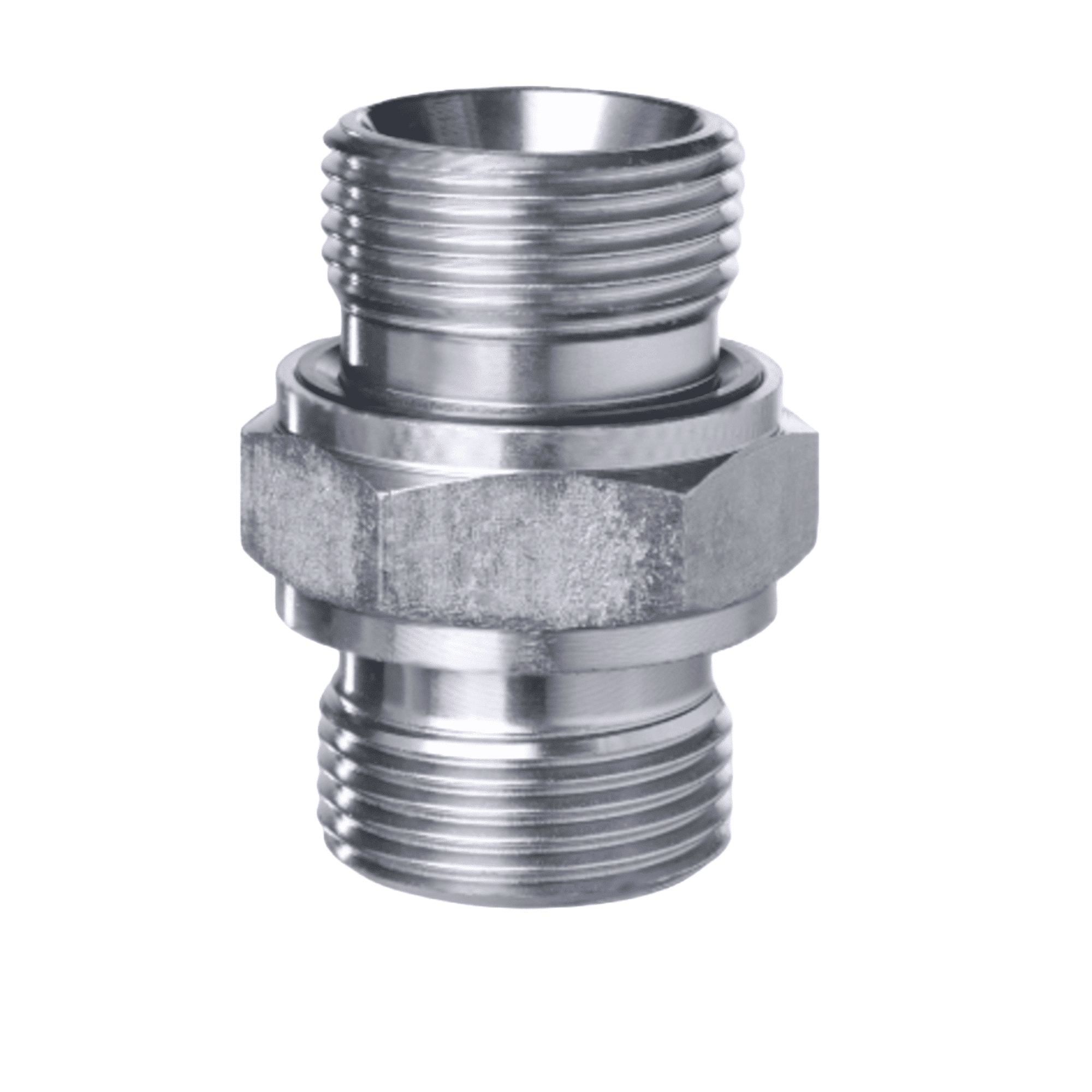

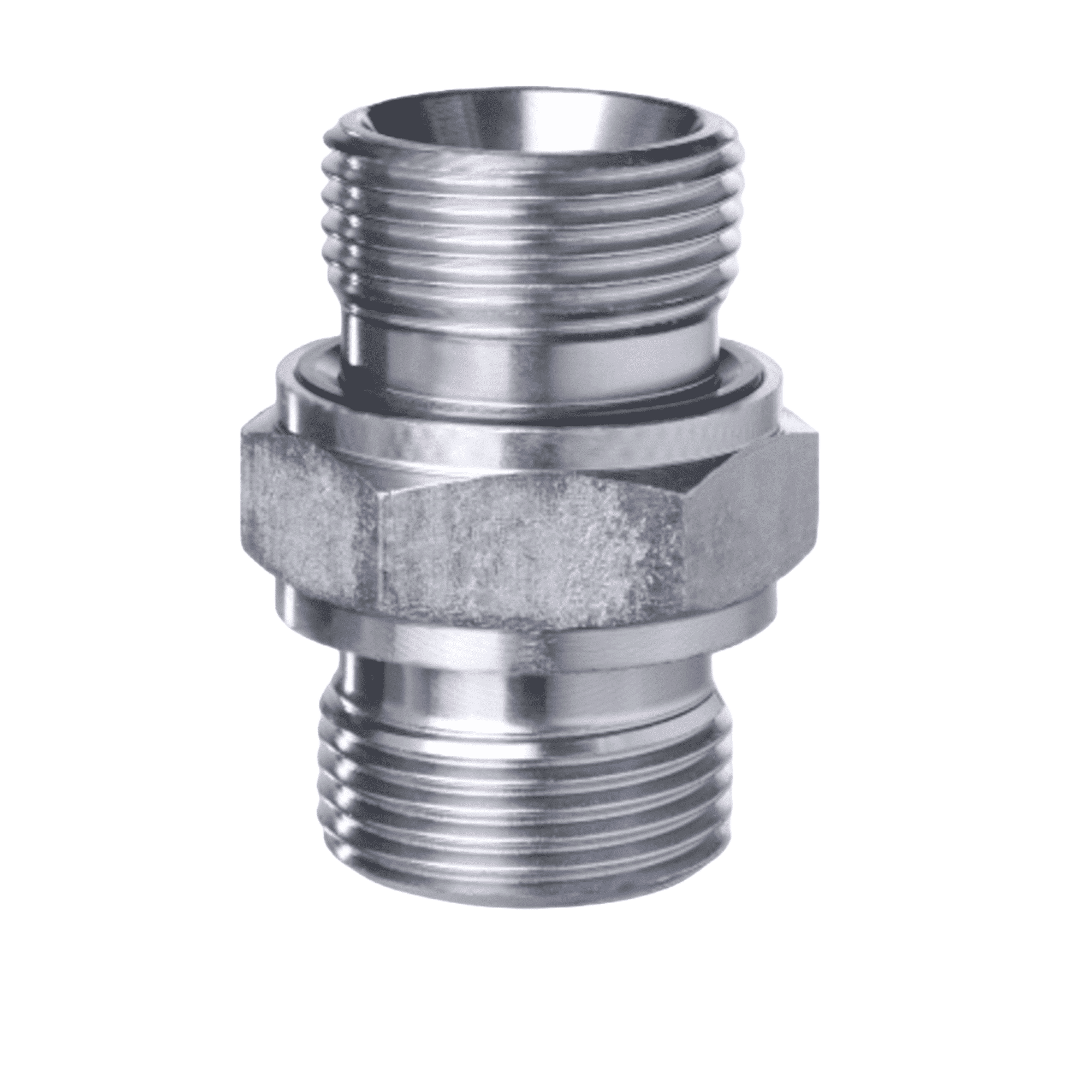

Screw-in sockets. Straight. BSP external thread, cylindrical to bSP cylindrical external threads. Shape E one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Identification | G1 | G2 | L1 mm | SW mm |
|---|---|---|---|---|
| G 1/8”–28 | G 1/8”–28 | 24.0 | 14 | |
| G 1/4”–19 | G 1/8”–28 | 28.5 | 19 | |
| G 1/4”–19 | G 1/4”–19 | 33.0 | 19 | |
| G 1/4”–19 | G 3/8”–19 | 34.5 | 19 | |
| G 3/8”–19 | G 1/4”–19 | 33.5 | 22 | |
| G 3/8”–19 | G 3/8”–19 | 35.0 | 22 | |
| G 3/8”–19 | G 1/2”–14 | 38.5 | 22 | |
| G 1/2”–14 | G 3/8”–19 | 37.5 | 27 | |
| G 1/2”–14 | G 1/2”–14 | 41.0 | 27 | |
| G 1/2”–14 | G 5/8”–14 | 43.0 | 27 | |
| G 1/2”–14 | G 3/4”–14 | 45.0 | 32 | |
| G 3/4”–14 | G 1/2”–14 | 43.0 | 32 | |
| G 3/4”–14 | G 3/4”–14 | 47.0 | 32 | |
| G 3/4”–14 | G 1”–11 | 51.0 | 32 | |
| G 1”–11 | G 3/4”–14 | 49.0 | 41 | |
| G 1”–11 | G 1”–11 | 53.0 | 41 | |
| G 1.1/4”–11 | G 1”–11 | 55.0 | 50 | |
| G 1.1/4”–11 | G 1.1/4”–11 | 58.0 | 50 | |
| G 1.1/2”–11 | G 1.1/2”–11 | 64.0 | 55 |
Note: Can be used as a screwing agent with ED and as a connector with 60° inside taper
Spare parts WD - Soft seal for ED fittings
No size matches that. Clear the filter to see them all.
In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.
