Hydraulic Adaptors

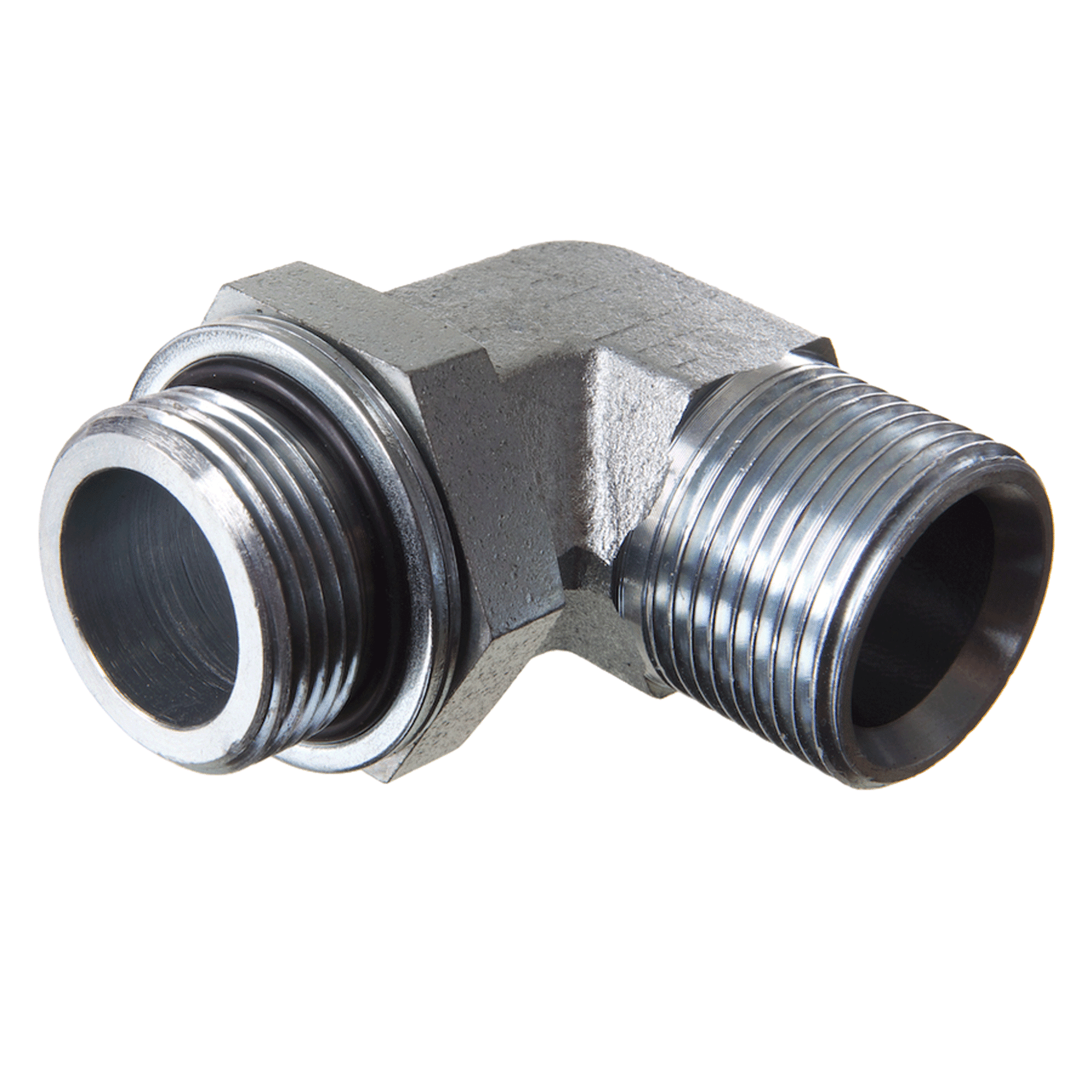

BSPP Male / BSPP Male Positional 90

BSPP Male / BSPP Male Positional 90

Screw-in socket, angle 90°. Adjustable direction screw-in socket. BSP external thread, cylindrical to bSP cylindrical external threads. Thread socket with O-ring + spacer diaphragm ring one end, 60° inner cone the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 19 sizes, each with its own part number.

19sizes
BPP-BPM-90C-0202-MC to BPP-BPM-90C-2424-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

IdentificationG1G2SW mmS1OR
G 1/8”–28G 1/8”–2811147.97 x 1.88
G 1/4”–19G 1/8”–28141910.77 x 2.62
G 1/4”–19G 1/4”–19141910.77 x 2.62
G 1/4”–19G 3/8”–19141910.77 x 2.62
G 3/8”–19G 1/4”–19192213.94 x 2.62
G 3/8”–19G 3/8”–19192213.94 x 2.62
G 3/8”–19G 1/2”–14192213.94 x 2.62
G 1/2”–14G 3/8”–19222717.86 x 2.62
G 1/2”–14G 1/2”–14222717.86 x 2.62
G 1/2”–14G 5/8”–14222717.86 x 2.62
G 1/2”–14G 3/4”–14272717.86 x 2.62
G 3/4”–14G 1/2”–14273523.47 x 2.62
G 3/4”–14G 3/4”–14273623.47 x 2.62
G 3/4”–14G 1”–11333623.47 x 2.62
G 1”–11G 3/4”–14334129.74 x 3.53
G 1”–11G 1”–11334129.74 x 3.53
G 1.1/4”–11G 1”–11415037.69 x 3.53
G 1.1/4”–11G 1.1/4”–11415037.69 x 3.53
G 1.1/2”–11G 1.1/2”–11485544.04 x 3.53

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
Thread socket with O-ring + spacer diaphragm ring
Connection 2
BSP cylindrical external threads
Sealing form 2
60° inner cone
Design
Adjustable direction screw-in socket
Construction
Angle 90°
Material
Steel
Surface
MotusCoat™

Downloads

BSPP Male / BSPP Male Positional 90 data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
