Hydraulic Adaptors

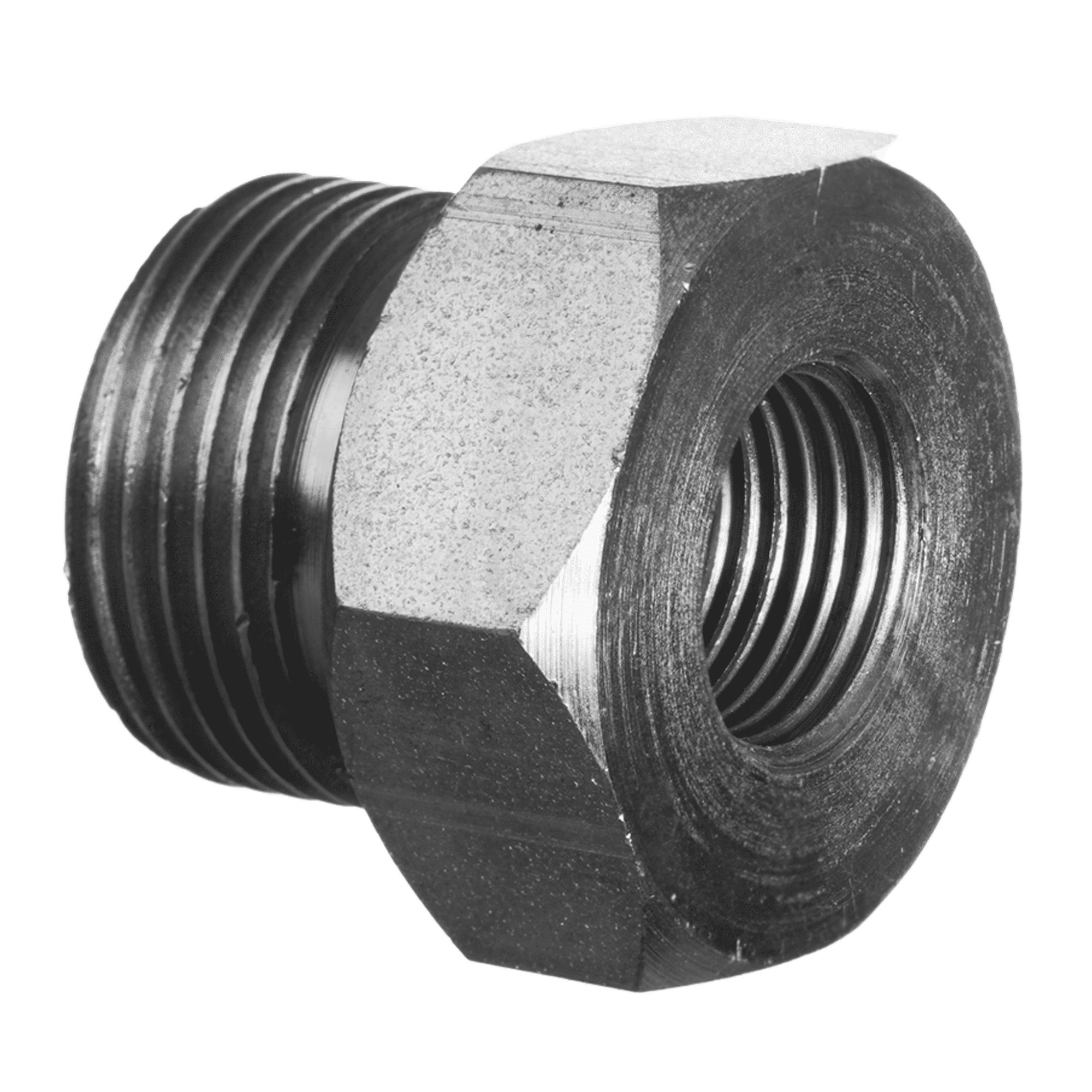

BSPP Male / BSPP Female

BSPP Male / BSPP Female

Screw-on sockets. Straight. BSP external thread, cylindrical to bSP cylindrical internal threads. 60° inner cone one end, flat seal the other. MotusCoat™ surface: up to 1,500 hours resistance to red rust in controlled testing, depending on specification and application. Steel. 40 sizes, each with its own part number.

40sizes
BPM-BPF-0202-MC to BPM-BPF-3232-MC
Request a priceData sheet (PDF)

Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179

SurfaceMotusCoat™
MaterialSteel

Pick your size

Tick the sizes you need, then request a price.

SW
Width across flats
IdentificationG1G2SW mm
G 1/8”-28G 1/8”-2817
G 1/8”-28G 1/4”-1919
G 1/4”-19G 1/8”-2819
G 1/4”-19G 1/4”-1919
G 1/4”-19G 3/8”-1924
G 1/4”-19G 1/2”-1427
G 3/8”-19G 1/8”-2824
G 3/8”-19G 1/4”-1922
G 3/8”-19G 3/8”-1924
G 3/8”-19G 1/2”-1427
G 1/2”-14G 1/8”-2827
G 1/2”-14G 1/4”-1927
G 1/2”-14G 3/8”-1927
G 1/2”-14G 1/2”-1427
G 1/2”-14G 3/4”-1436
G 3/4”-14G 1/4”-1932
G 3/4”-14G 3/8”-1932
G 3/4”-14G 1/2”-1432
G 3/4”-14G 3/4”-1436
G 3/4”-14G 1”-1141
G 1”-11G 3/8”-1941
G 1”-11G 1/2”-1441
G 1”-11G 3/4”-1441
G 1”-11G 1”-1141
G 1”-11G 1.1/4”-1150
IdentificationG1G2SW mm
G 1.1/4”-11G 1/8”-2850
G 1.1/4”-11G 1/2”-1450
G 1.1/4”-11G 3/4”-1450
G 1.1/4”-11G 1”-1141
G 1.1/4”-11G 1.1/4”-1150
G 1.1/4”-11G 1.1/2”-1155
G 1.1/2”-11G 3/4”-1455
G 1.1/2”-11G 1.1/4”-1155
G 1.1/2”-11G 1.1/2”-1155
G 1.1/2”-11G 1”-1155
G 1.1/2”-11G 2”-1170
G 2”-11G 1”-1170
G 2”-11G 1.1/4”-1170
G 2”-11G 1.1/2”-1170
G 2”-11G 2”-1170

Product Version: Stainless Steel (SS)

The details

Connection 1
BSP external thread, cylindrical
Sealing form 1
60° inner cone
Connection 2
BSP cylindrical internal threads
Sealing form 2
Flat seal
Design
Screw-on socket
Construction
Straight
Material
Steel
Surface
MotusCoat™

Downloads

BSPP Male / BSPP Female data sheetPDF, matches the catalogueDownload
Surface

MotusCoat™

In controlled testing, MotusCoat™ achieves up to 1,500 hours resistance to red rust, depending on specification and application.

Competitor coating after 1000-hour salt spray testing
A fitting with a competitor coating, covered in red rust
A fitting with MotusCoat, with no red rust
MotusCoat™After a 1000-hour salt spray test according to DIN EN ISO 9227
