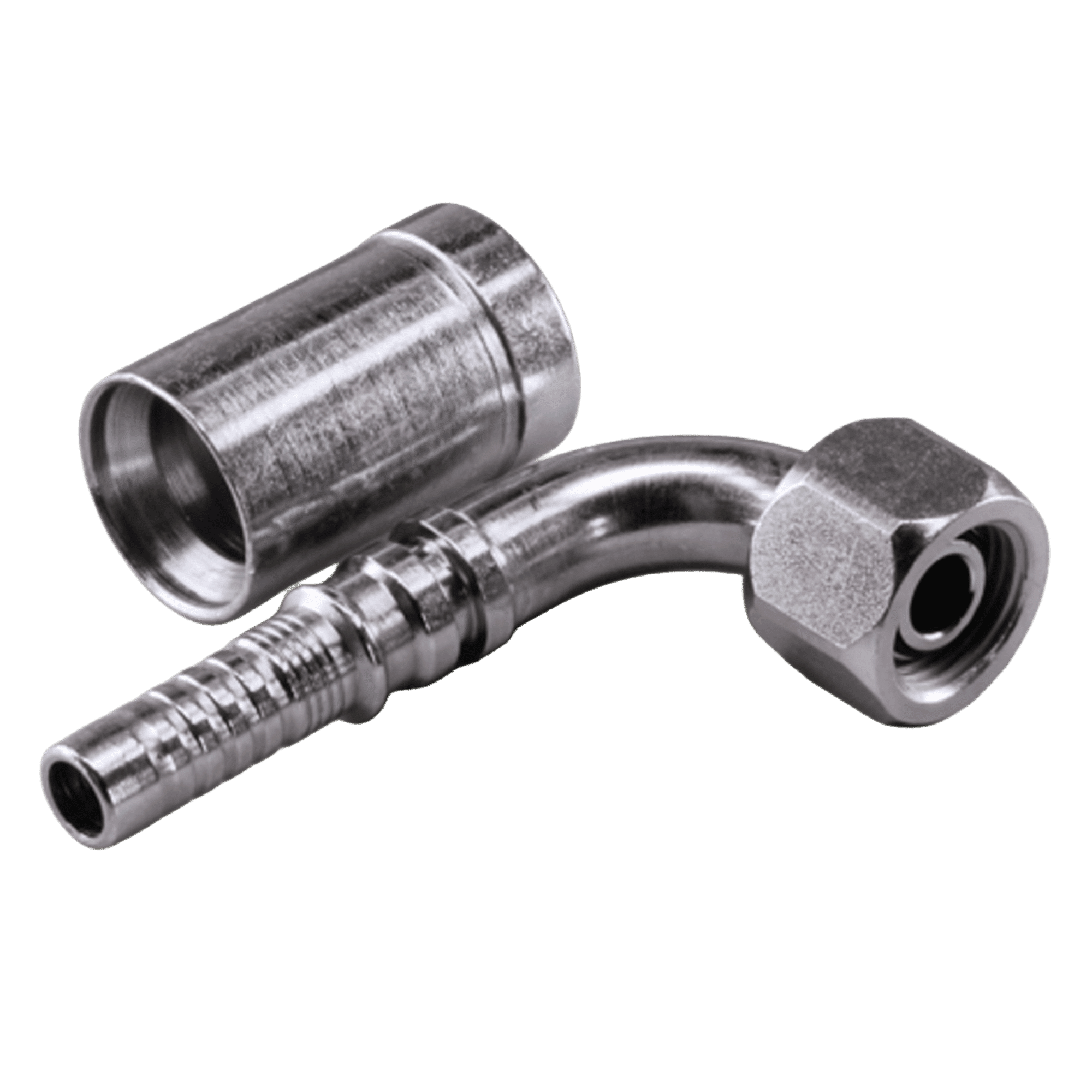

BSP Swivel Female Swept 90 from the Motus Ferrules & Swage Nipples range.
excl. GST
Not sure which model you need? Talk to Motus.
PRODUCT INFORMATION
BSP Swivel Female Swept 90 is part of the Motus Ferrules & Swage Nipples range.
| Application | Swage fitting for HD 500 hoses |
| Connection 1 | BSP nut thread |
| Sealing form 1 | 60° outer cone with O-ring |
| Short code | DKOR |
| Standard | ISO 8434-6, BS 5200 |
| Integration | With pull-out protection (interlock) |
| Included in scope of supply | Swage nipple + swage ferrule |
| Material | Steel |
| Surface | MotusCoat™ |
Catalogue page: 91
BSP Swivel Female Swept 90 from the Motus Ferrules & Swage Nipples range.
Match the hose series and size, fitting style and swage specification to the hose assembly you are building.
Not sure which size, configuration or hydraulic component you need? Tell us what you’re working with and the Motus team will help match the right product to the application.
