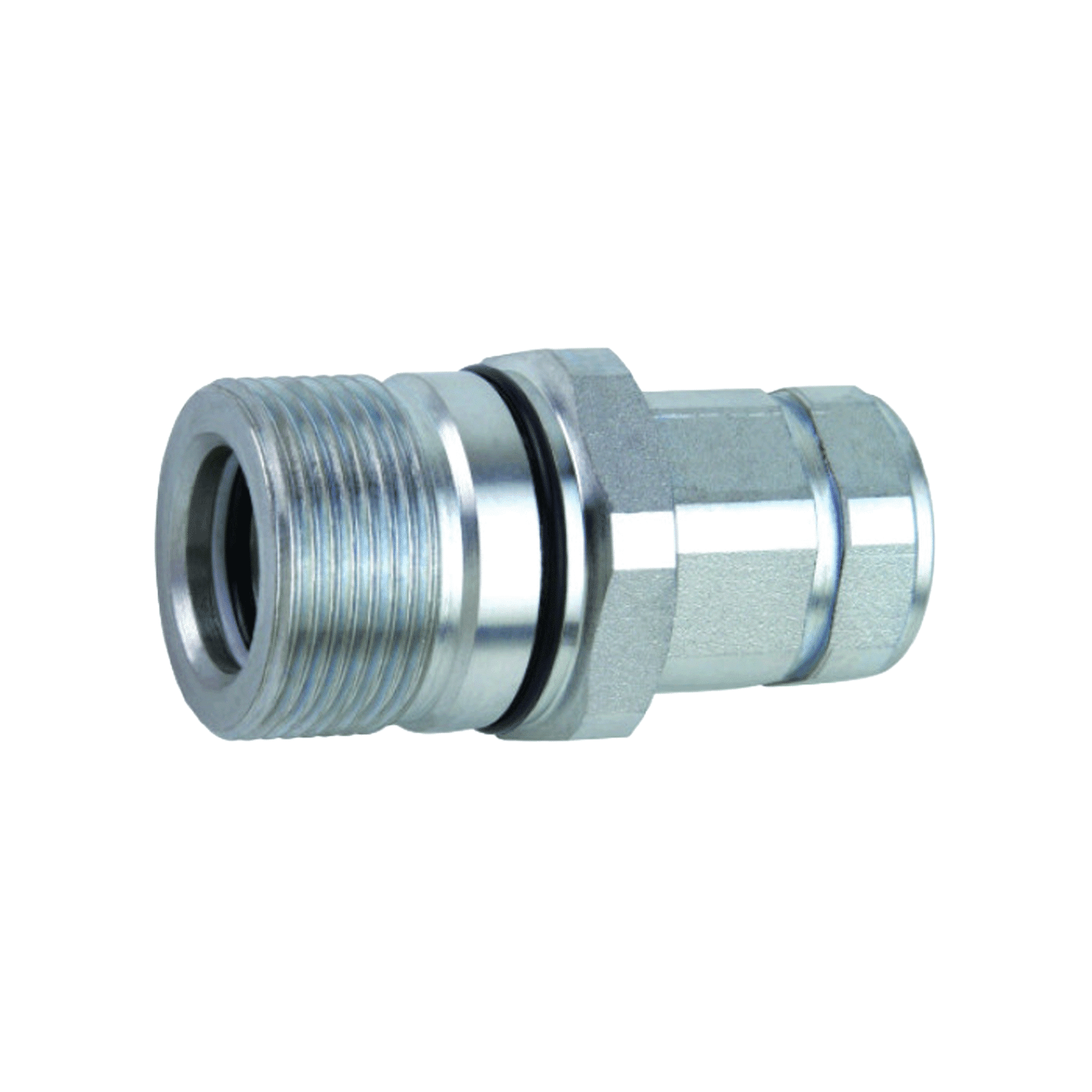

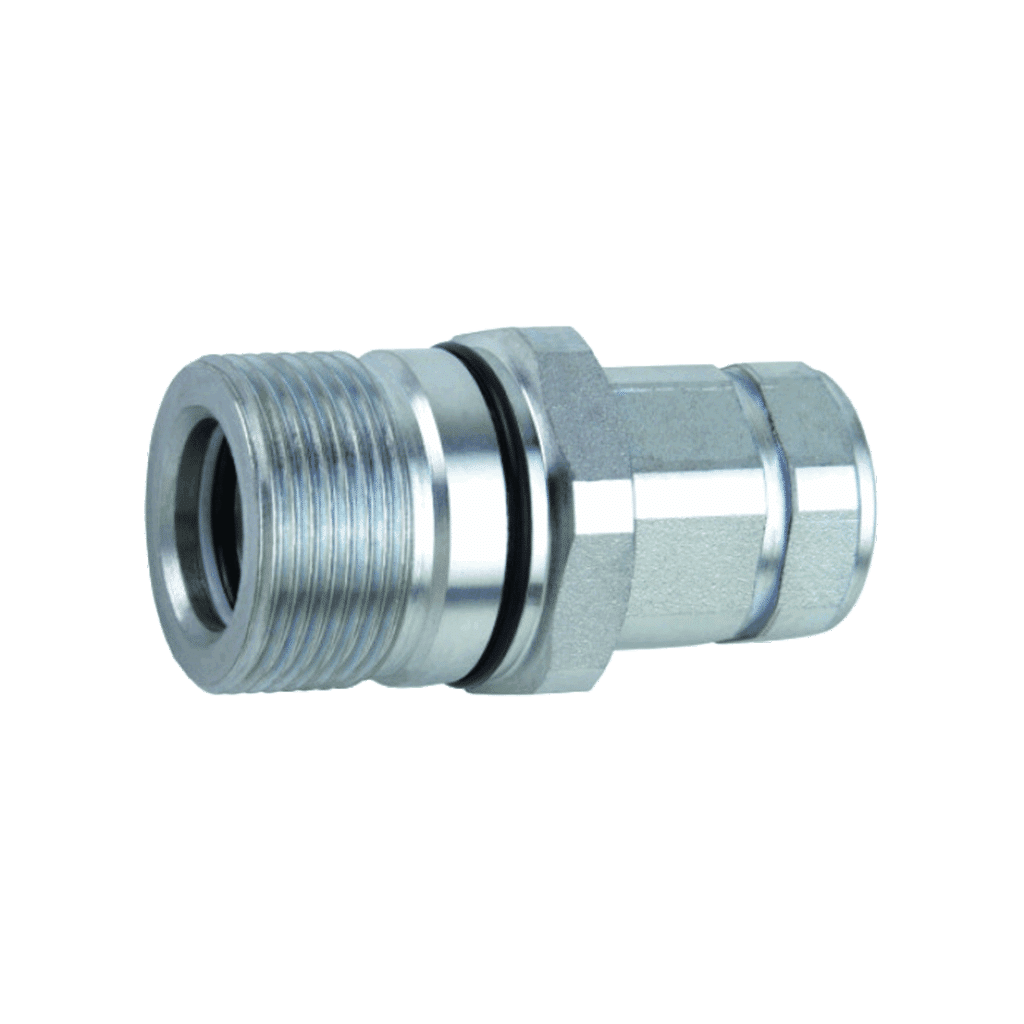

CVV | Zinc-Nickel (ZnNi) – MATE 1000 | Poppet Valve | Screw to connect | Steel. Connects by screw to connect. Interchanges with Stucchi VD series Dixon CVV series Faster CVV Gromelle 626 - A series DNP PVV3 series. To ISO 14541. -25 °C to +125 °C. Zinc-Nickel (ZnNi) – MATE 1000 surface. Steel. 5 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Female | Body Size | Lp mm | B mm | Hs mm | T | Dash Size | Max W.P Female (Bar) |
|---|---|---|---|---|---|---|---|
| 1/4” | 69.5 | 13 | 19 | 1/4 BSPF | -4 | 370 | |
| 3/8” | 69.5 | 17.5 | 24 | 3/8 BSPF | -6 | 300 | |
| 1/2” | 71.5 | 22.1 | 30 | 1/2 BSPF | -8 | 300 | |
| 3/4” | 85 | 28.1 | 36 | 3/4 BSPF | -12 | 270 | |
| 1” | 100 | 35 | 41 | 1 BSPF | -16 | 270 |
