Male

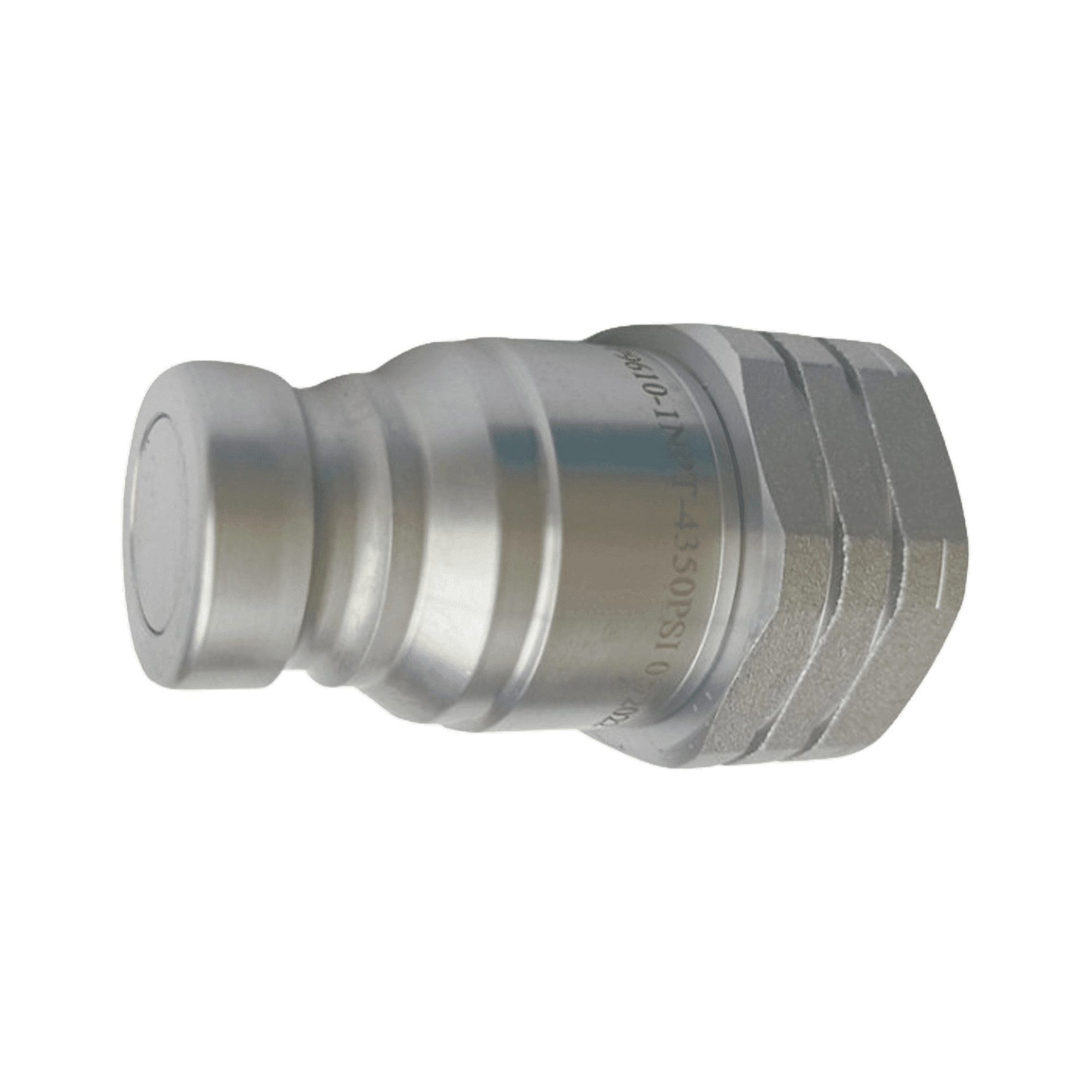

FFH | Zinc-Nickel (ZnNi) – MATE 1000 | Flat Valve | Steel. Flat face. Connects by push to connect. Interchanges with Stucchi A series Faster FFH series DNP PLT4 series Parker FEM series. To ISO 16028. -25 °C to +125 °C. Zinc-Nickel (ZnNi) – MATE 1000 surface. Steel. 8 sizes, each with its own part number.
Or call NZ 0800 668 874 · AU 1800 839 249 · US & CAN 437 245 6179
Tick the sizes you need, then request a price.
| Part No. Male | Body Size | Lp mm | Hp mm | T | Dash Size | Max W.P Male (Bar) |
|---|---|---|---|---|---|---|
| 1/4” | 50 | 27 | 1/4 BSPF | -4 | 420 | |
| 3/8” | 59.5 | 30 | 3/8 BSPF | -6 | 350 | |
| 3/8” | 62.5 | 30 | 1/2 BSPF | -8 | 350 | |
| 1/2” | 68 | 36 | 1/2 BSPF | -8 | 350 | |
| 1/2” | 70.5 | 36 | 3/4 BSPF | -12 | 350 | |
| 3/4” | 83 | 46 | 3/4 BSPF | -12 | 350 | |
| 3/4” | 83 | 46 | 1 BSPF | -16 | 350 | |
| 1” | 89 | 55 | 1 BSPF | -16 | 350 |
